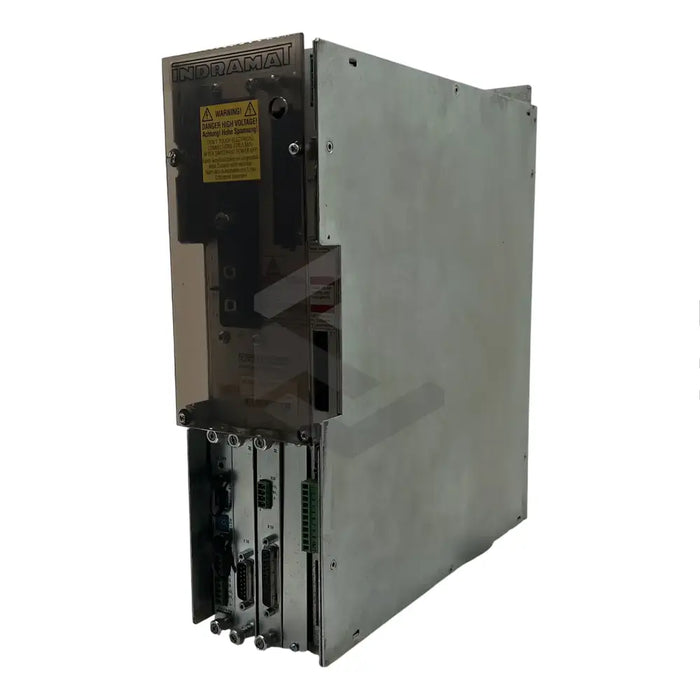

C image of DDS02.2-W200-BE04-00 | Main (Front Left)

DDS02.2-W200-BE04-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W200-BE04-00 is a DDS drive controller produced by Bosch Rexroth Indramat, featuring a type code of series 2 version 2, with a functional ID of 04 and a functional ID version of 00. The controller's rated output current is 200 Amps, with a DC bus voltage of 300 Volts +/- 15%. The DDS drive solely allows power supplies with regulated DC output, and its supply unit offers DC +24V and DC +/- 15V. Like other controllers in the series, the system mustn't exceed the output current of the supply unit. The device operates optimally within 0 to 45 degrees Celsius and requires a 40mm front-side spacing and 80mm top and bottom-side spacing for effective heat dispersion. This system supports digital servo and resolver feedbacks. The installed communication module, SERCOS, operates a 2/4 Mbps data transfer rate through fiber optic cables in a ring topology. For optimal performance, installation should be carried out by professionally trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS Drive Controller

Rated Current Output

200 Amps

Series

2

Version

2

Function ID

04

Function ID Version

00

Nominal Voltage on Controller DC Bus

300 Volts DC

Tolerance of DC Bus Voltage

15%

Input Voltage Rating

24 Volts DC

Power Supply Restriction

Only Regulated DC Output

Heat Technology

Yes

Recommended Ambient Temperature Range

0 to 45 degrees Celsius

Minimum Spacing (Front)

40 millimeters

Minimum Spacing (Top and Bottom)

80 millimeters

Feedback Methods Support

Digital Servo Feedback and Resolver Feedback

Installed Command Communication Module

SERCOS

SERCOS Data Transfer Rates

2 / 4 Mbps

SERCOS Network Arrangement

Ring Topology

Data Transmission Medium

Fiber Optic Cable

Installation Personnel Requirement

Trained Personnel Only
