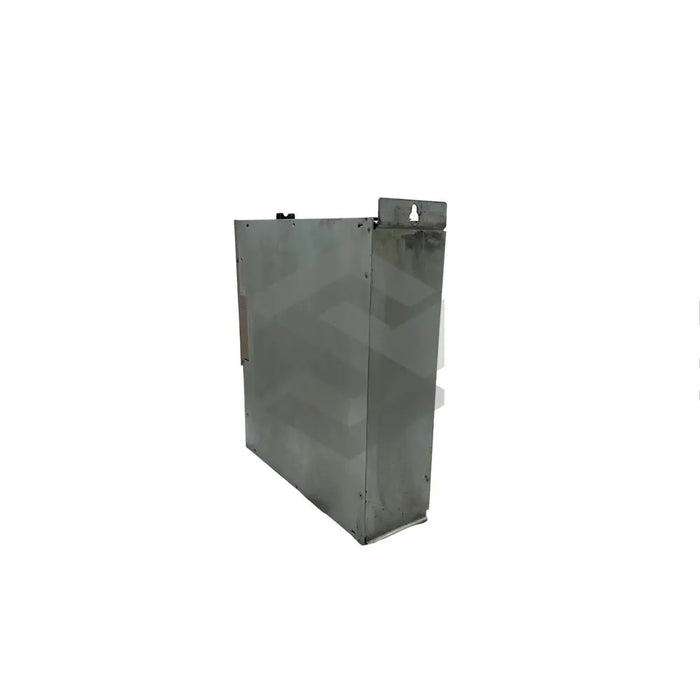

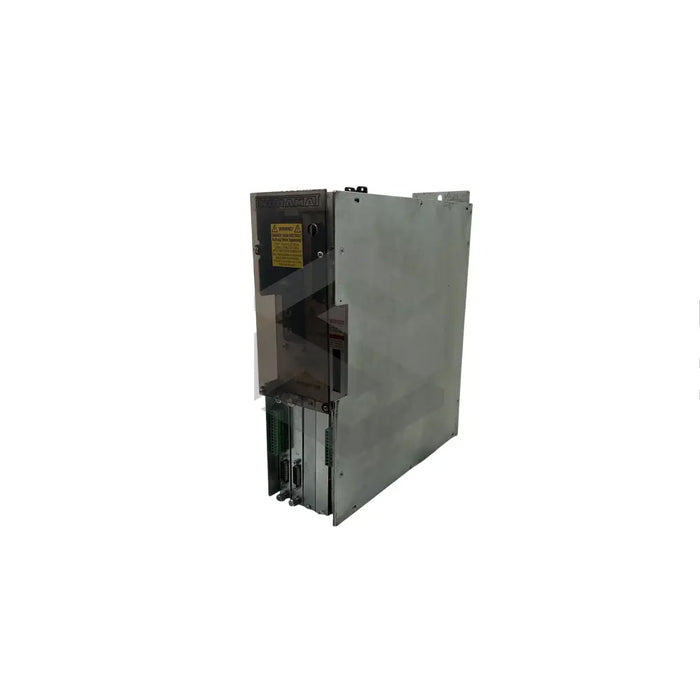

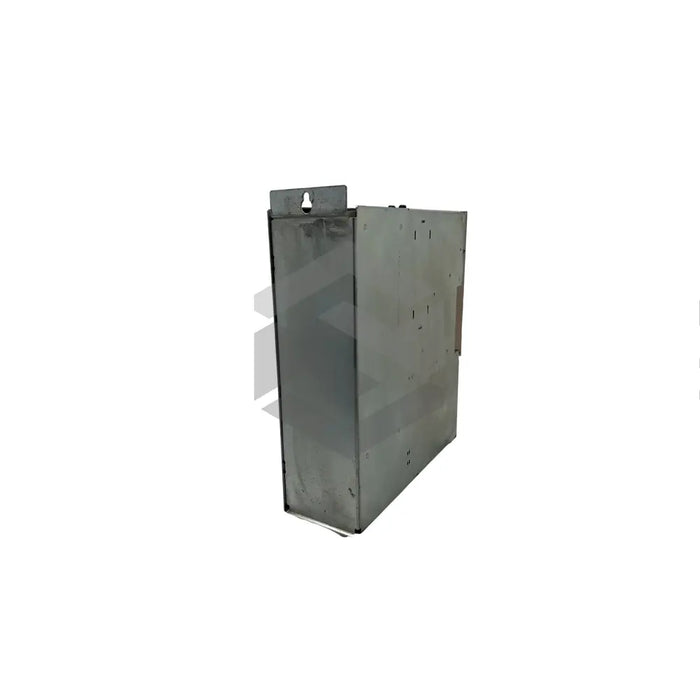

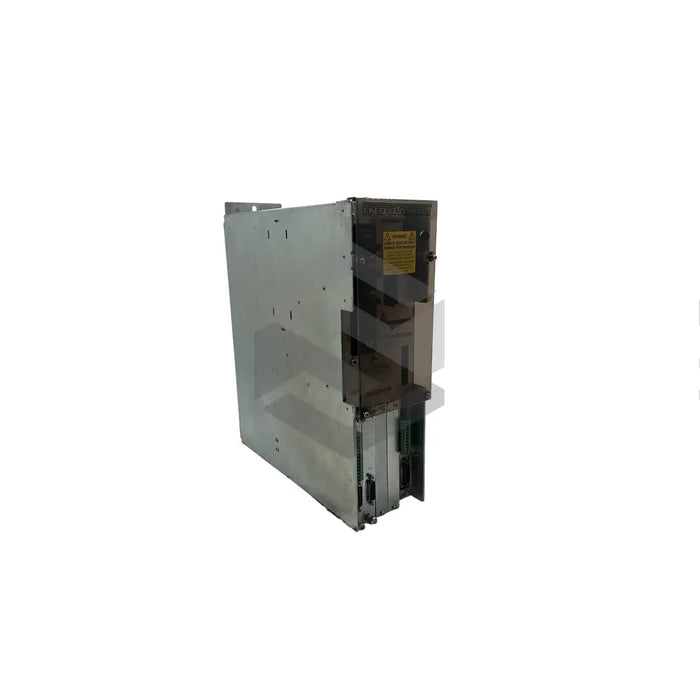

series image of DDS02.2-W200-BE15-01-FW

DDS02.2-W200-BE15-01-FW

by Bosch Rexroth Indramat
Request a quote
The DDS02.2-W200-BE15-01-FW is a modular drive controller produced by Bosch Rexroth Indramat, renowned for their energy-efficient industrial devices. The model's modular design accommodates versatile combination with AC servo and main drives, creating a compact drive package powered by a single supply unit. Operating optimally at temperatures up to +55 degrees Celsius, it has a continuous rated current of 65 amps and requires well ventilated, clean environments. The drive controller, equipped with digital servo and resolver feedback, has a level of dust resistance due to an IP20 rating, though it lacks full liquid-proof protection. Further features include heat dispersion, compatibility with corporate supply units, a 24 volt DC stable voltage, 300 volt DC bus voltage, and the ability to withstand difficult conditions. Seating the communication card and firmware module takes place in the drive controller's U1 and U5 slots, respectively.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DDS02.2-W200-BE15-01-FW
  • Design: Modular
  • Communication Module: SERCOS Interface
  • Operating Temperature: +55 degrees Celsius
  • Rated Current: 65 amps
  • Installation Requirement: Control Cabinet with proper ventilation
  • Feedback Types: Digital Servo and Resolver
  • Device Condition: Must be clean and devoid of turbulence and debris
  • Protection Rating: IP20 (Not totally liquid-proof)
  • Transport Considerations: Can add suspension supports, temperature between -30 and +80 degrees Celsius
  • Heat Dispersion Ability: Can disperse a large percentage of heat outside its container
  • Compatibility: Corporate supply units
  • Stable Voltage: 24 volt DC
  • Bus Voltage: 300 volt DC
  • U1 Slot: Communication Card
  • U5 Slot: Firmware Module
  • Survival Features: Can survive severe temperatures, moisture exposure, and vibration.
