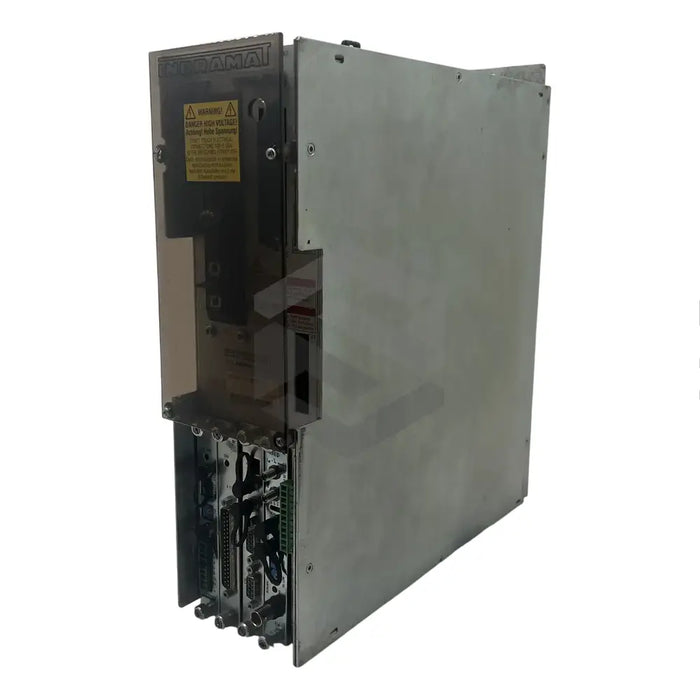

C image of DDS02.2-W200-BE43-02-FW | Main (Front Left)

DDS02.2-W200-BE43-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DDS02.2-W200-BE43-02-FW is a versatile drive controller within the DDS series. It's designed for compatibility with AC motors, including the MDD, MKD, and LAR models. Its modular conception enables it to adapt to diverse applications found in textile, robotic, printing, packaging, and handling machines. This particular model is a Version 1 and has a rated current of 200A. It's designed for usage with motors featuring either a digital servo feedback or resolver feedback encoder connected with a 75m Indramat motor power cable. The unit must be housed in a spacious control cabinet as it uses a heat dissipation system, and the firmware to ensure its function and performance enhancements must be purchased separately. It also features a SERCOS interface for input interpretations. Its compatibility is limited to Indramat supply units with a regulated 24V DC voltage supply. It boasts an IP 20 protection rating and operates best below a maximum 45°C ambient temperature and 25g/m³ humidity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Series

DDS

Model

DDS02.2-W200-BE43-02-FW

Version

1

Rated Current

200A

Motor Compatibility

Digital Servo Feedback Encoder or Resolver Feedback Encoder

Connection Cable

INDRAMAT motor power cable (75m)

Cable Features

Three motor power connection lines and a separate cable pair for a holding brake connection

Cooling System

Heat technology cooling system (Requires sizable control cabinet for installation)

Firmware

Separately ordered

Interface

SERCOS

Input types

Evaluation of reference switches, travel range limit switches, sensor input

Power Supply Compatibility

INDRAMAT supply units with a regulated DC 24V voltage

Protection Rating

IP 20 (According to EN 60529)

Maximum Ambient Temperature

45°C

Maximum Absolute Humidity

25g/m³
