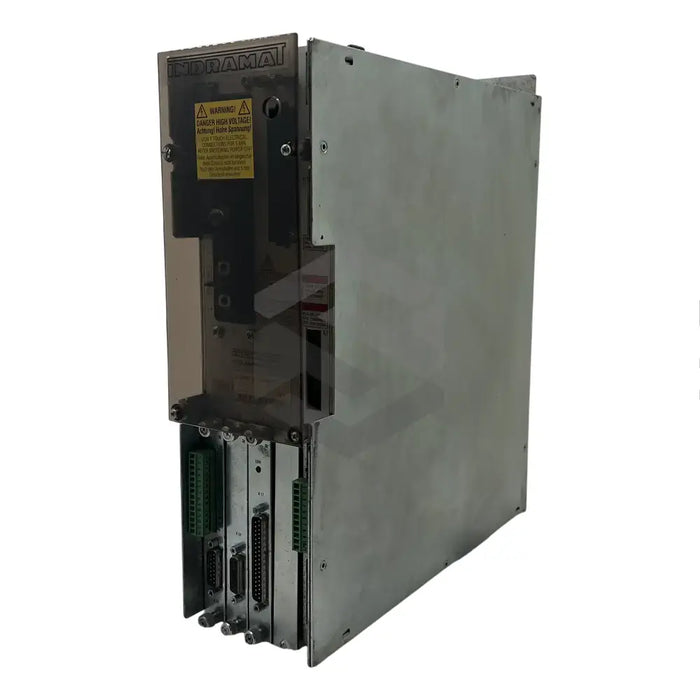

C image of DDS02.2-W200-BE78-00-FW | Main (Front Left)

DDS02.2-W200-BE78-00-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W200-BE78-00-FW is a versatile drive controller crafted by Bosch Rexroth Indramat. Suited for the rapid-response driving of digital AC servo motors in the MDD, MKD, LAR, 1MB, and MBW series, this drive controller finds utility in robotics, packaging, and printing machines. It manages heat dissipation through a built-in cooling system that operates within a specified control cabinet. Designed with an Ingress Protection rating of IP 10, this model resists admittance of solids larger than 50mm. Owning to a SERCOS plug-in module, it facilitates digital drive operation through SERCOS-compatible controls connected via fiber optic cable. Its firmware needs separate ordering, while its current rating stands at 200A with a regulated DC bus voltage of ±15% of 300V. The controller supports motors with resolver feedback or digital servo feedback and operates in temperature conditions between 0oC and 45oC. Optimal space allocation is ensured with a mountable supply unit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DDS02.2-W200-BE78-00-FW

Use Case

Printing and packaging machines, Robotics, Handling machines

Heat System

Control cabinet (Air conditioning required)

Ingress Protection Rating

IP 10

Plug-in Module

SERCOS (fiber optic cable connection)

Extra Inputs

Reference switches, Travel range limit switches, Sensor inputs

Firmware Use

Allowed (order separately)

Current Rating

200A

Designated DC bus Voltage

300V (±15% tolerance)

Power Supply

24V DC (Indramat supply units)

Feedback Systems Supported

Resolver feedback, Digital servo feedback

Mounting

Control cabinet (with supply unit)

Ambient Temperature Range

0oC to 45oC.
