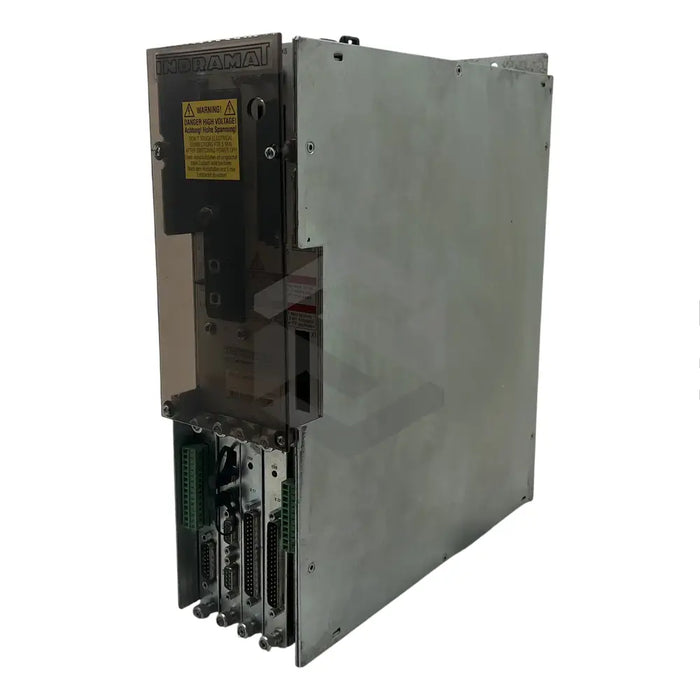

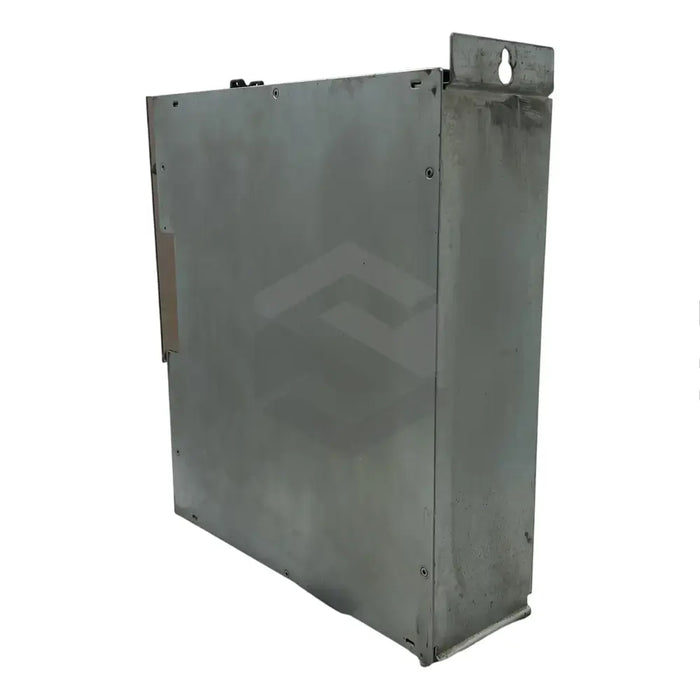

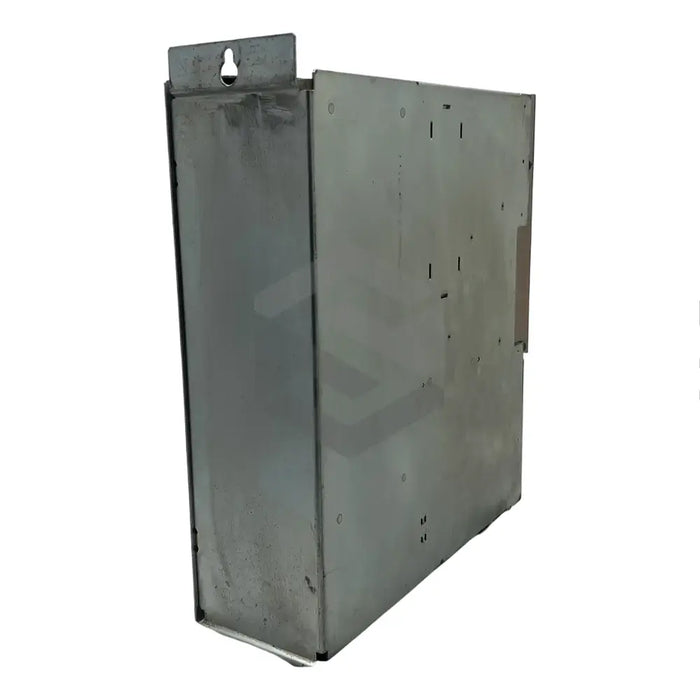

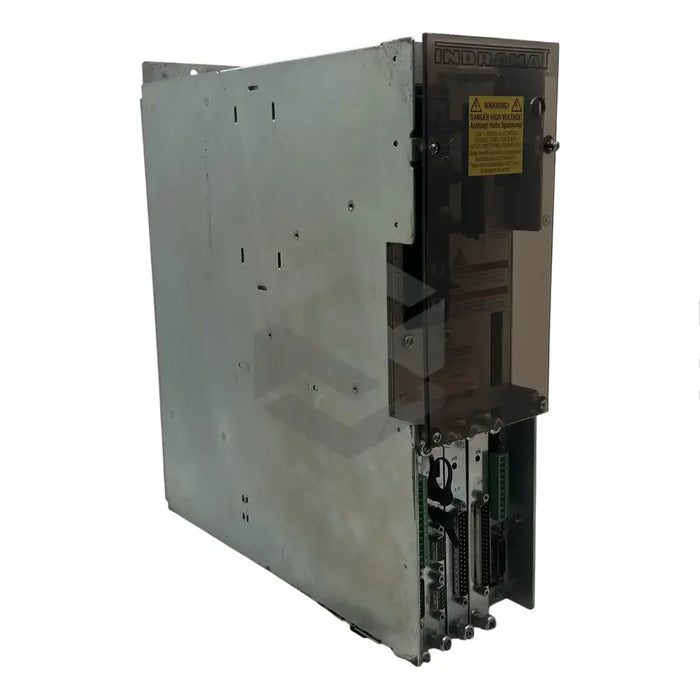

DDS02.2-W200-BE95-02-FW
Bosch Rexroth Indramat's DDS02.2-W200-BE95-02-FW is a highly efficient drive controller for MDD and LAR AC motors. Primarily used in various applications such as machine tools, textiles, robots, and material handling machines, this model ensures fine-tuned speed regulation and precise control over motor output with its digital servo, resolver feedback, and SERCOS interface communication modules. This modular drive controller, powered by a 24V DC input voltage, complies with EMC rules, reducing unwanted RF interference. The device can withstand up to +45°C, has an IP20 protection rating against dust and dirt, a maximum installation height of 1000 MSL, and requires humidity of less than 25 g/m3 in the installation area. The controller, rated at 560 watts, operates at a constant 90 A, with a peak current of 200 A. Proper installation and operation by a qualified expert is recommended for optimum performance.
30 Day Warranty
Technical Specifications
