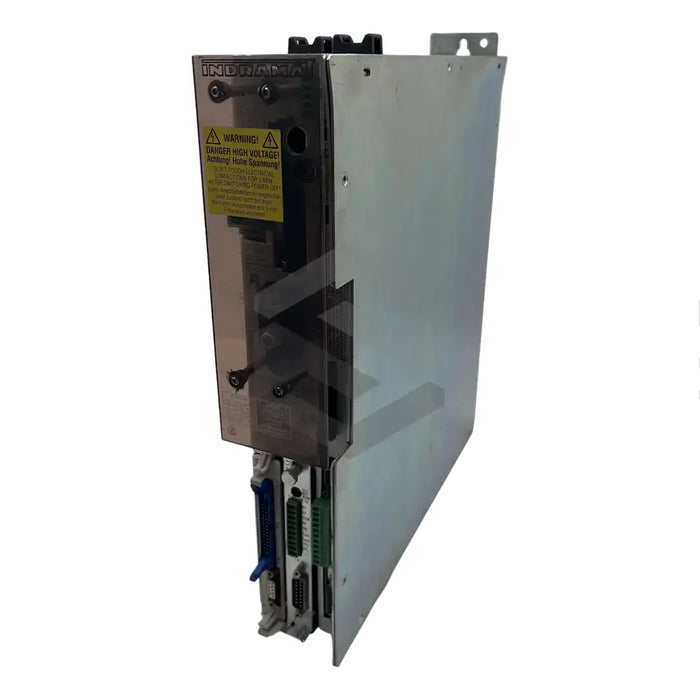

C image of DDS03.1-W030-DL20-00 | Main (Front Left)

DDS03.1-W030-DL20-00

by Bosch Rexroth Indramat
$4,849.43 - $4,849.43
$4,849.43
$4,849.43 - $4,849.43
$4,849.43

In Stock, Ships 1 - 3 Days

The DDS03.1-W030-DL20-00 is a drive controller produced by Bosch Rexroth Indramat, designed to control and monitor an AC motor. Featuring an IP 20 degree of protection, it utilizes a modular design to connect multiple drives to one power supply. Compatible with MKD, LAR, and MDD series motors, this unit can also support four functional modules. The controller has noticeable features such as a fault reset key and a status display for error and warning messages. It requires a connection with the AC motor via a manufacturer-provided power cable and avoids earth loops to reduce interference and fault-clearing difficulty. The unit contains two analog diagnostic outputs for testing and features a starting lockout to prevent inadvertent motor startup. It permits computer connectivity through a serial interface at its X2 connector. With a one-year backup support, the controller can be shipped globally. It weighs around 5.5 kg and requires enclosed housing installation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS03.1-W030-DL20-00

Product Type

Drive Controller

Degree of Protection

IP 20

Operating Principle

Rapid Response Drive

Compatible Motors

MKD, LAR, MDD Series

Functional Module Attachments

Four

Controller Features

Fault Reset Key, Status Display

Connectivity

AC motor (Manufacturer’s power cable), X1 connector (Control electronics), Serial interface (X2 connector), X4 Terminal (Motor feedback)

Test Features

Two Analog Diagnostic Outputs

Additional Feature

Starting Lockout

Current Consumption

150mA at +/-15V

DC Bus Voltage

300V +/-15%

Max Installation Elevation

1000m over sea level

Weight

5.5kg

Mounting Requirement

Inside a closed housing

Firmware

Not Included.
