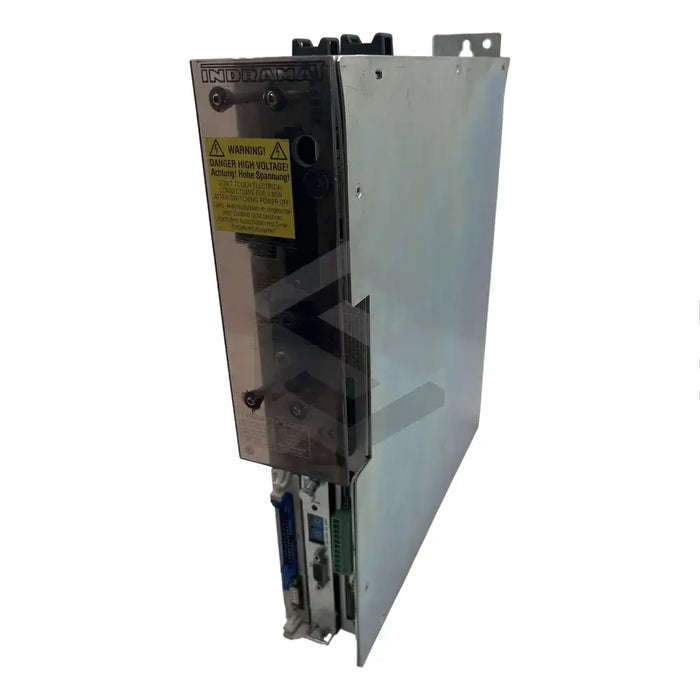

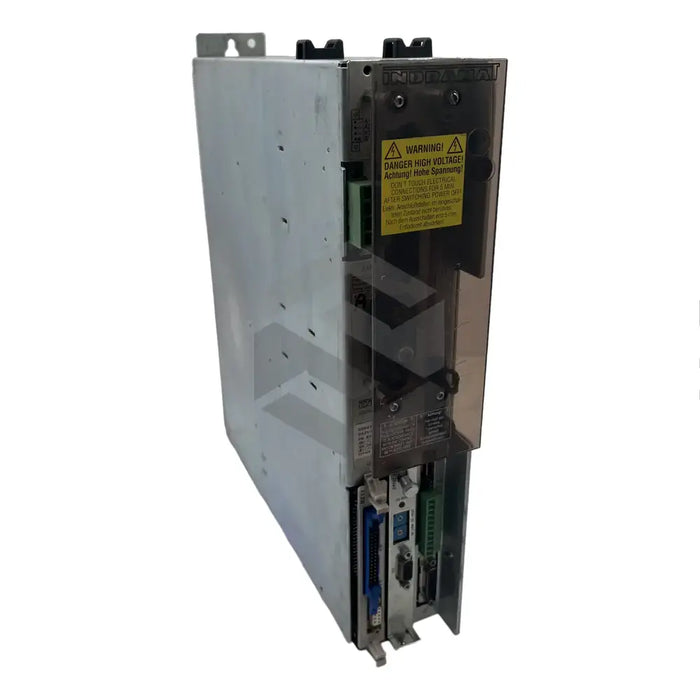

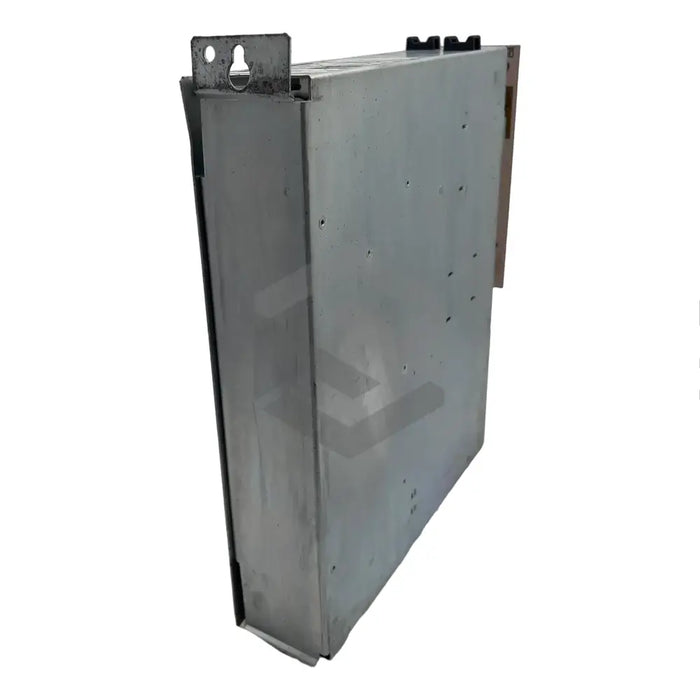

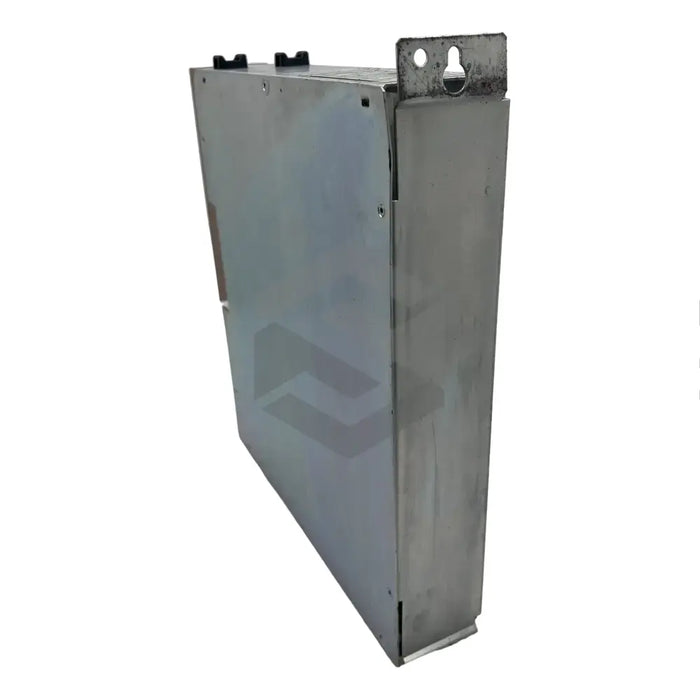

DDS03.1-W030-DL40-01-FW
The DDS03.1-W030-DL40-01-FW is a drive controller produced by Bosch Rexroth Indramat, distinguished by its specific limits, such as a maximum permissible absolute air humidity of 25g/m3. This controller is designed to sit adjacent to other controllers, with its power supply unit positioned near the controller that has the highest output. The device features an air inlet at the bottom and air outlet at the top, and measures 355 x 325mm. To avoid interference, signal lines and supply lines should be set apart from each other. The controller requires decoupling during high interference voltage tests to safeguard its electronic components. The controller employs A1, A2, and A3 terminals for three-phase current, and an X2 connector for its RS 232 serial interface. Furthermore, the controller uses the E-DDS electrical connecting accessories kit for ease of electrical connection and comes with a built-in Bb ready-to-operate contact that closes when the unit is ready for operation. Compatible with either an inductance linear motor or synchronous motor from the same producer, the full capabilities of this controller can be leveraged after understanding its associated documentation. This controller can be shipped worldwide.
