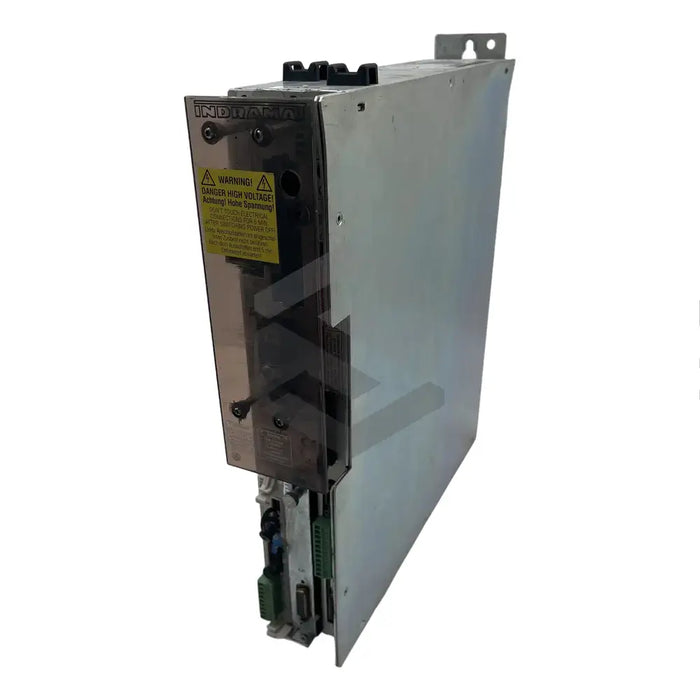

C image of DDS03.1-W030-DS04-00 | Main (Front Left)

DDS03.1-W030-DS04-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS03.1-W030-DS04-00, manufactured by Bosch Rexroth Indramat, is a drive controller designed for internal mounting within an enclosed space. It features an IP 20 protection level and must maintain appropriate clearance from power supplies or other controllers. The unit requires upright installation and has air intake at the base and outlet at the top. The controller, sized 355 x 325 mm, utilizes D subminiature plugin connectors with 3Nm tightening torque for L+, L- and PE terminals. An S1 fault reset key and H1 status display are provided for error monitoring. The product connection necessitates manufacturer’s motor power cables, with feedback at the X4 connection point. It also includes two diagnostic analog outputs and an X1 connector for control. Its E-DDS accessory kit contains DC bus rails and an 11-pin plugin terminal. The drive controller can operate up to a maximum 55°C and is shipped in military-grade packaging to prevent damage during transit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DDS03.1-W030-DS04-00 Drive Controller

Mounting

Inside a closed housing

Degree of Protection

IP 20 as per DIN 40 050

Clearance Distance

Sufficient from power supply or another adjacent drive controller

Installation Orientation

Upright

Size

355 x 325 mm

Air Inlet and Outlet

Bottom inlet and top outlet

Tightening Torque

3Nm for L+, L- and PE terminals

Connectors

D subminiature plugin connectors or plugin clamps for signal lines

Motor Feedback Connection

At X4 connecting point

Diagnostic Features

S1 fault reset key and H1 status display

Analog Diagnostic Outputs

Two

Motor Connection

Manufacturer’s motor power cables

Control Electronics Connector

X1 connector

Operating Contact

Bb ready to operate contact

Accessories

E-DDS accessories kit

Max Operating Temperature

55°C

Packaging

Custom military-grade packaging.
