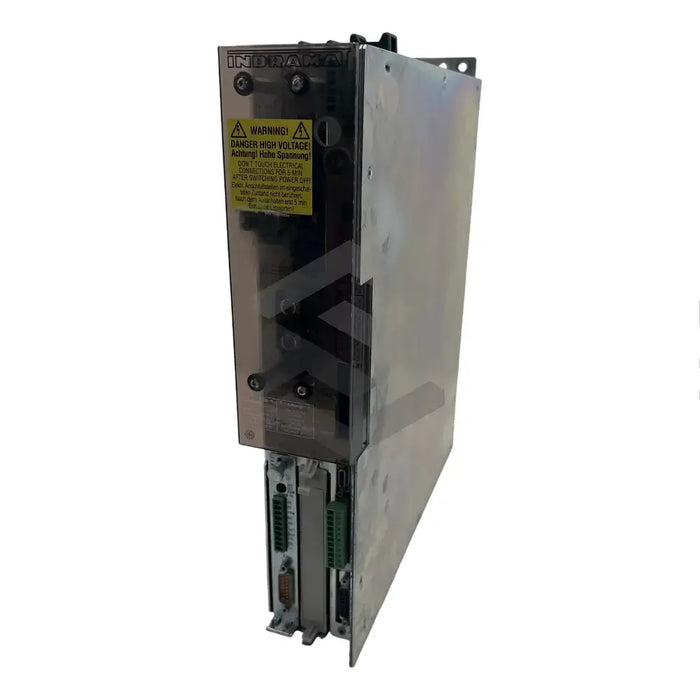

C image of DDS03.1-W030-RA02-00 | Main (Front Left)

DDS03.1-W030-RA02-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the DDS03.1-W030-RA02-00 is a model component from the DDS range of drive controllers. Renowned for simplifying motion control, Bosch Rexroth pairs this device with digital AC servo motors for a swift-response mechanism. The device features a modular structure compatible with all 24V DC regulated voltage Indramat supply units. Due to its compact size, it can be conveniently installed in a control cabinet, meeting the EN 60529 IP 10 protection standards. It utilizes heat technology for cooling, needing a well-conditioned and spacious control cabinet. The model is equipped with an ANALOG interface, facilitating operation of digital AC servo drives in conjunction with traditional controls. The module also interacts with other control systems through control inputs and signal outputs. This specific device requires a DC voltage of about 300V (with ±15% tolerance) and has a 30A current rating. Compatible with Resolver Feedback Servo motors, it uses a specialized Indramat cable (maximum 75m) for connection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS03.1-W030-RA02-00

Product Type

Drive Controller

Voltage Support

DC 24V Regulated Voltage

Design

Modular

Mounting Style

Control Cabinet

Protection Category

IP 10

Cooling Method

Heat Technology

Interface

ANALOG

Module Compatibility

Digital AC Servo Drives

Motor Compatibility

Servo Motors with Resolver Feedback

Maximum Cable Length

75m

Number of Lines in Cable

Three for Motor-Power Connection, One for Protective Conductor Connection, Separately Shielded Pair for Motor Temperature Monitoring

Operating Voltage

300V DC (±15% Tolerance)

Rated Current

30A.
