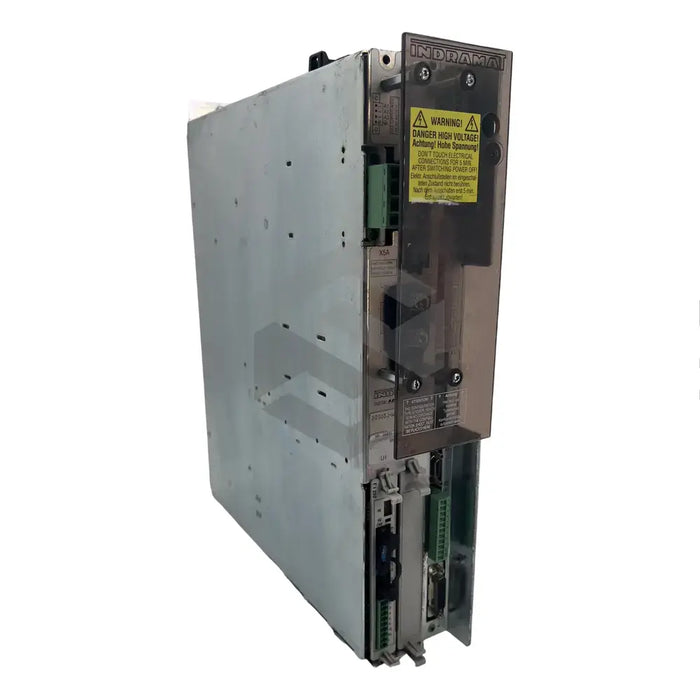

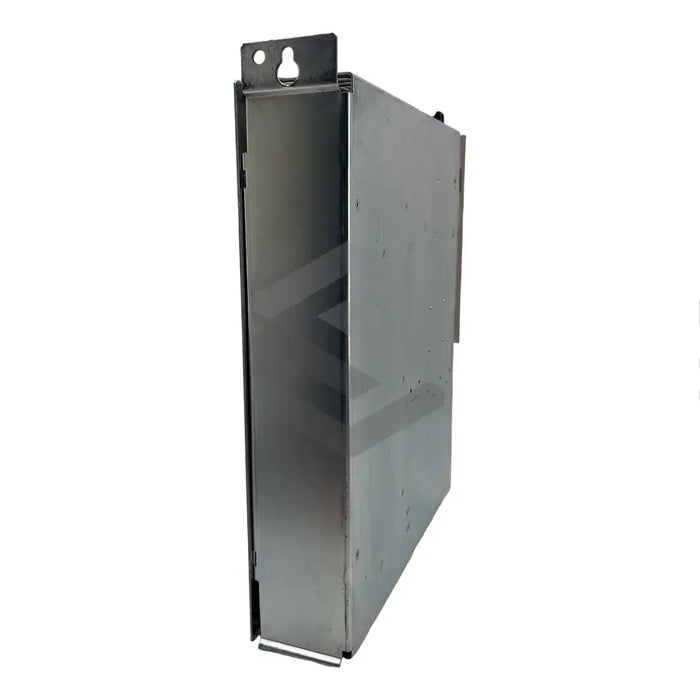

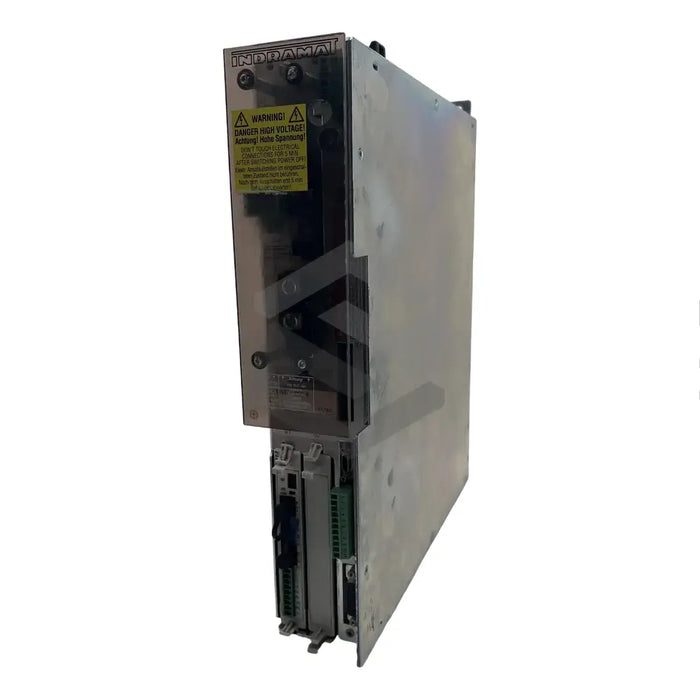

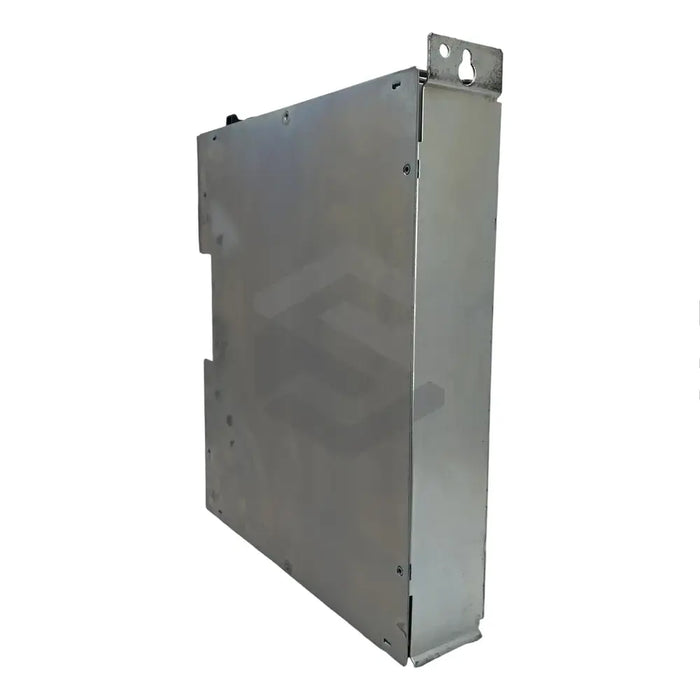

C image of DDS03.1-W030-RS01-01 | Main (Front Left)

DDS03.1-W030-RS01-01

by Bosch Rexroth Indramat
$2,438.13 - $2,438.13
$2,438.13
$2,438.13 - $2,438.13
$2,438.13

In Stock, Ships 1 - 3 Days

The DDS03.1-W030-RS01-01 is a high-quality motor drive controller crafted by premier manufacturer Bosch Rexroth Indramat. With a weight 5.5kg, this model is designed to operate at a DC bus voltage of 300 volts, 15% tolerance. Renowned for its precise control over motor speed and direction, it can handle a continuous current of 10 amps and a peak of 30 amps. The DDS03.1 is eventrated with an IP20 and has a maximum humidity tolerance of 95% or 25 g/m^3. This product boasts a storage and transportation temperature range of -30 to +85 degrees Celsius and, importantly, can function at up to 45 degrees Celsius without data loss. It stands out in the fact most of its energy loss is expelled outside of the control cabinet. Notably, it uses a SERCOS interface for communication. Remember, installation should be conducted by an expert technician and can be fitted up to 1000 meters above sea level. This model also includes an air conditioner and resolver for tracking motor speed and position.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS03.1-W030-RS01-01

Weight

5.5 kilograms

Operating Voltage

300 volts DC bus voltage with a 15 percent tolerance

Continuous Current Rating

10 amps

Peak Current Rating

30 amps

IP Rating

IP20

Maximum Relative Humidity

25 g/m3

Maximum Allowable Humidity

95%

Benefits

Allows for exact control over the motors speed and direction

Storage and Transport Temperature Range

-30 to +85 degrees Celsius

Maximum Operating Temperature

45 degrees Celsius

Energy Loss

Most outside of the control cabinet

Communication Module

SERCOS interface

Installation

By trained technician

Maximum Mounting Height

1000 meters above sea level

Additional Features

Air conditioning and resolver motor feedback

Suitability

A variety of driving applications

Software Modules

Driving instructions, drive settings

Requirement

Firmware to be purchased individually

Shipping

Via reputable logistic partner.
