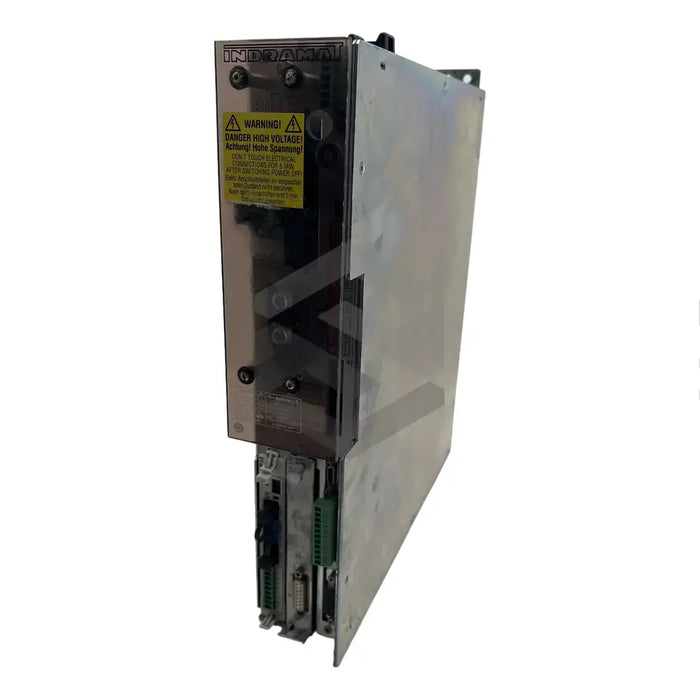

C image of DDS03.1-W030-RS03-01 | Main (Front Left)

DDS03.1-W030-RS03-01

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, revered for its dedication to reliability, safety, and environmental stewardship, the DDS03.1-W030-RS03-01 is a drive controller capable of exceptional performance and reliability. Compatible with standard supply units, the model has a continual voltage of 24V and a DC bus voltage of 300V. Its modular design enables integration with AC servo and main drives to form a compact drive package powered by a single source. The device's continuous rated current is 10 amps and it should be housed in a weatherproof, well-ventilated control cabinet. Though not fully waterproof, its IP20 rating ensures some resistance against dust. The connection card and firmware module occupy U1 and U5 slots respectively. The controller, with a weight of 5.5 kg, offers resolver feedback and can operate in extreme temperatures and vibration if the surrounding is devoid of dust, turbulence, and dirt. It comes with a SERCOS interface communication module enriched with multifunctional firmware.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DDS03.1-W030-RS03-01

Compatibility

Commercial supply units

Voltage

24 volts (constant), 300 volts DC (DC bus)

Design

Modular, can be combined with AC servo and main drives

Current

10 amps (continuous rated)

Placement

Well-ventilated, weatherproof control cabinet

Protection Rating

IP20

Slot U1

Connection card

Slot U5

Firmware module

Weight

5.5 kilograms

Feedback

Resolver feedback

Work Environment

Free of dust, turbulence, and filth

Temperature Resistance

Can tolerate severe temperatures

Vibration Resistance

Yes

Heat Dissipation

Disperses a substantial percentage of its heat outside of its container

Communication Module

SERCOS interface with multifunctional firmware

Additional Features

Suspension supports can be added during travel

Temperature Range

-30 to +80 degrees Celsius

Maximum Operating Temperature (With Reduced Rated Data)

+55 degrees Celsius.
