series image of DDS03.1-W050

DDS03.1-W050

by Bosch Rexroth Indramat
$3,091.39 - $3,091.39
$3,091.39
$3,091.39 - $3,091.39
$3,091.39
Available, Shipping Varies

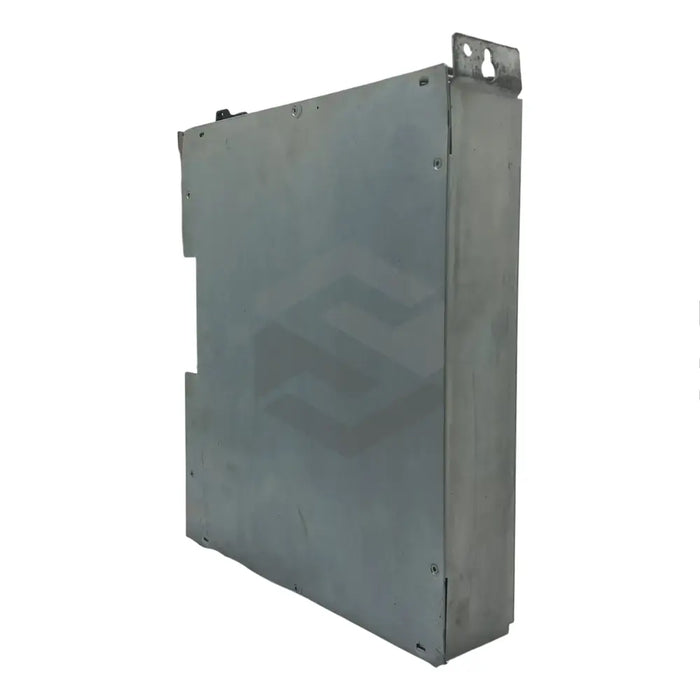

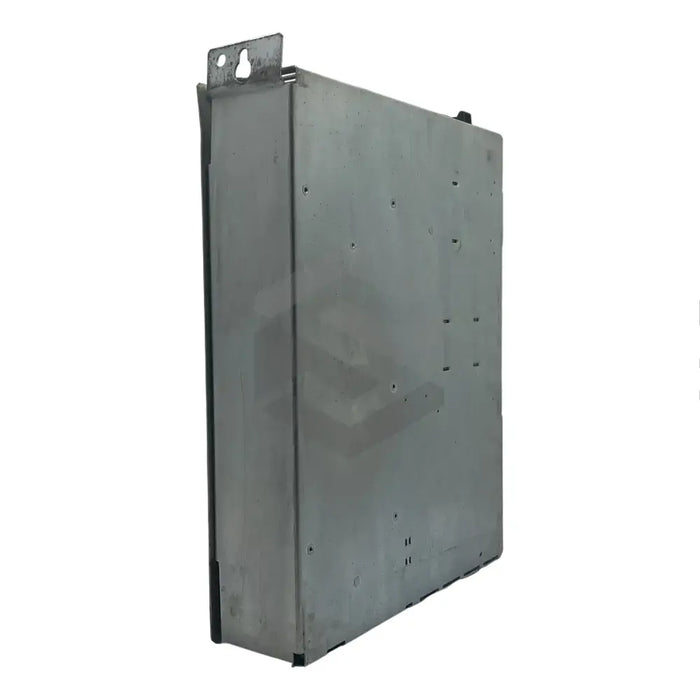

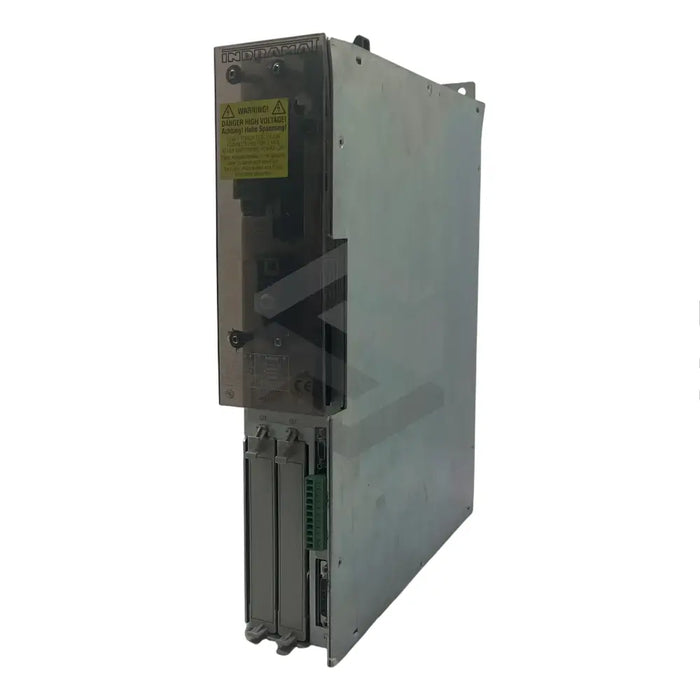

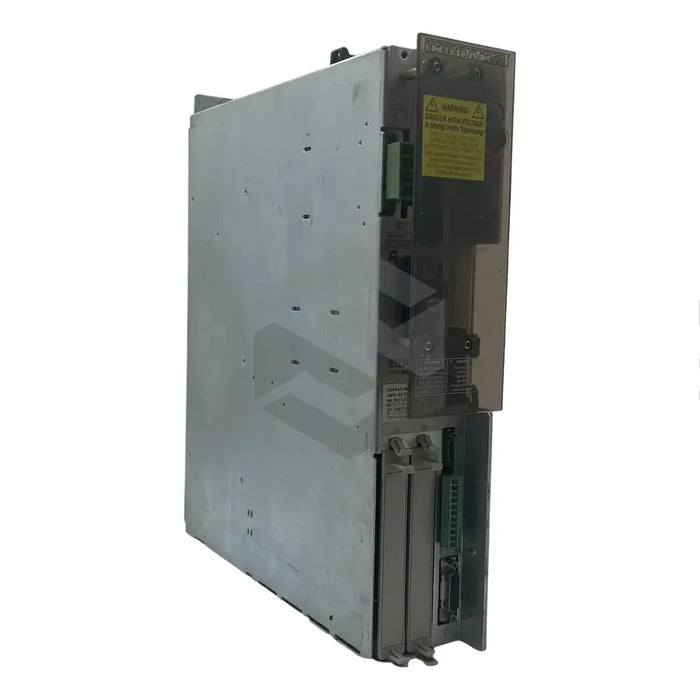

The DDS03.1-W050 is a drive controller crafted by Bosch Rexroth Indramat, as a part of the DDS series, and is designed to work in unison with an array of Bosch Rexroth's industrial, linear and rotary motors. This model demands a regulated 24 Volts DC input and is wrapped in an IP20 rated housing, ensuring its suitability for indoor use or outdoor use when secured in an appropriate cabinet. It is crucial that adequate spacing is provided upon installation to allow for effective airflow and cooling. The unit measures 355 x 325 x 70 millimeters, weighs 5.5 kilograms, and has an output rating of 50 Amps. Built with air cooling in mind, it functions best within an ambient temperature of 0 to 45 degrees Celsius, but can be safely stored between -30 to 85 degrees Celsius. The DDS03.1-W050 is equipped with one slot each for a software module, communication module, and one optional module, further, it offers resolver-based or digital servo feedback capabilities, making it versatile and appropriate for high-precision applications. The product comes with a barcode sticker displaying vital information and specs, which should be checked upon delivery to ensure the equipment isn't damaged.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Series: DDS
  • Functionality: Compatible with several Bosch Rexroth motor product lines
  • Motor Type: Linear and rotary industrial motors
  • Input Requirement: Regulated 24 Volts DC
  • Housing Protection Class: IP20 (Safe for indoor use, outdoor use possible if mounted inside suitable cabinets)
  • Installation Spacing: 40 millimeters on the front and 80 millimeters on the bottom and top
  • Dimensions: 355 x 325 x 70 millimeters
  • Weight: 5.5 kilograms
  • Rated Output: 50 Amps
  • Cooling Method: Air Cooling
  • Operating Temperature: 0 to 45 degrees Celsius
  • Storage Temperature: -30 to 85 degrees Celsius
  • Design: Modular with slots for option modules
  • Number of Slots: Three (1 for a software module, 1 for a communication module, 1 for optional module)
  • Feedback: Supports resolver-based or digital servo feedback.
