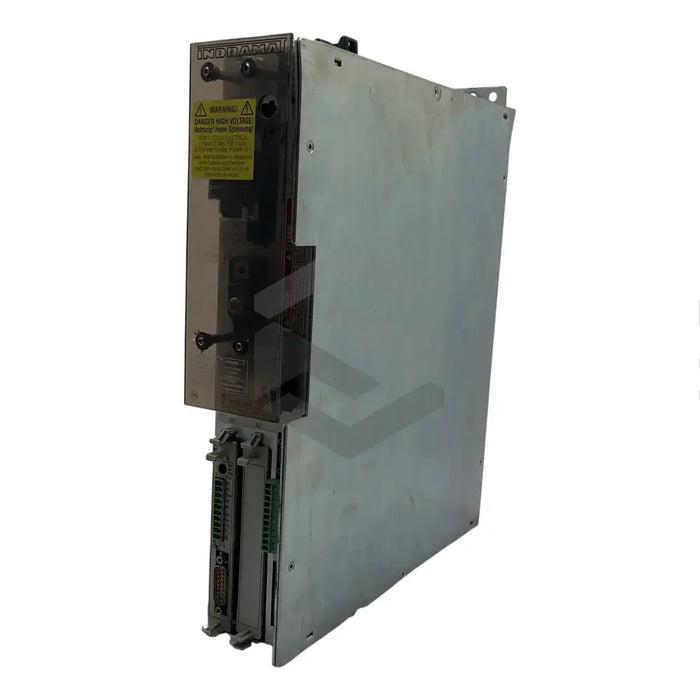

C image of DDS03.1-W050-DA02-01-FW | Main (Front Left)

DDS03.1-W050-DA02-01-FW

by Bosch Rexroth Indramat
$4,309.90 - $4,309.90
$4,309.90
$4,309.90 - $4,309.90
$4,309.90

In Stock, Ships 1 - 3 Days

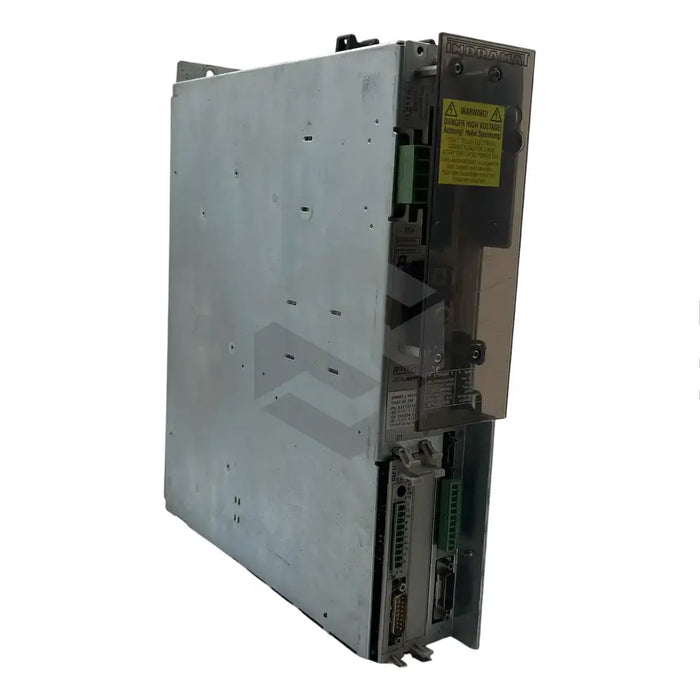

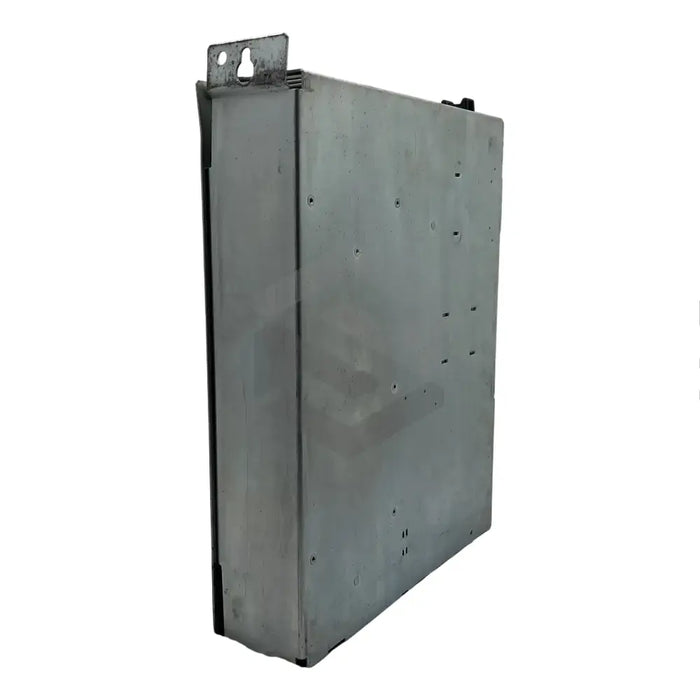

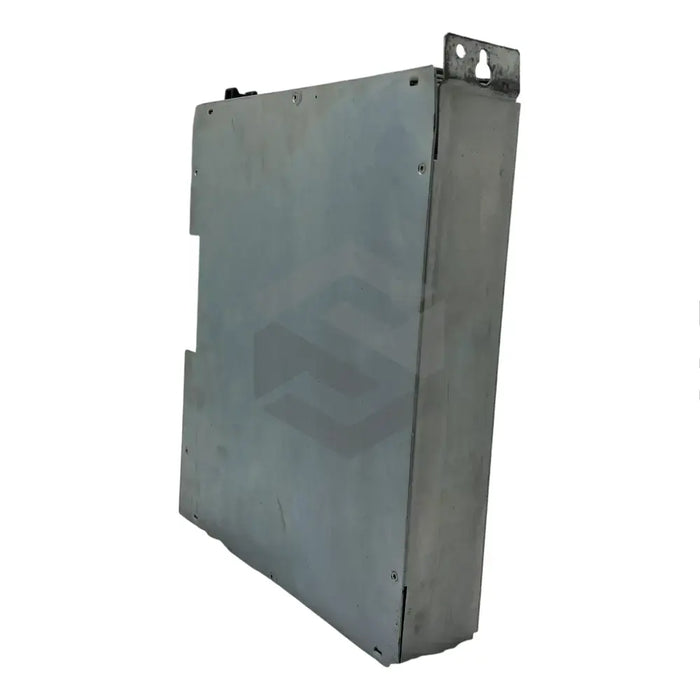

The DDS03.1-W050-DA02-01-FW is a drive controller from the Bosch Rexroth Indramat DIAX02 lineup. This highly versatile system is compatible with an AC main drive and has a usage in equipment ranging from machine tools to textile machinery. Key specifications include a 50A current rating, and a voltage rating of 300 +/-15% VDC. It employs airflow, within a substantial control cabinet, to manage heat levels. Vertical orientation is required for installation and in the event of a replacement, previous software module parameters can be retained. The firmware routinely updates for optimal operation without interfering with the unit's functions. Storage and transit should be undertaken in a dry, shock-free environment, between -30°C to +85°C. It also incorporates an analog diagnostic output with a 10VDC voltage rating and 4mA load capacity. The relative and absolute maximum permissible humidity levels are 95% and 25g/m3 respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS03.1-W050-DA02-01-FW

Product Family

DIAX02

Use Cases

Machine tools, handling machines, printing, packaging, textile machinery

Current Rating

50A

Voltage Rating

300 +/-15% VDC

Cooling Method

Airflow inside the control cabinet

Mounting Orientation

Vertical

Software Module

Parameters can be carried forward during unit replacement

Firmware

Undergoes continuous updates

Storage and Transport Temperature

-30°C to +85°C

Transportation

Must use shock-damping supports if needed

Storage Environment

Dry, free of shock and dust

Connection

Servomotor feedback using manufacturers feedback cables at the X4 terminal

Maximum Cable Length

75m

Starting Lockout Activation

DC voltage in the 20V to 30V range between the AS+ and AS- input terminals

Analog Diagnostic Outputs

Voltage rating of 10VDC and a current load capacity of 4mA

Maximum Relative Air Humidity

95%

Maximum Absolute Air Humidity

25g/m3.
