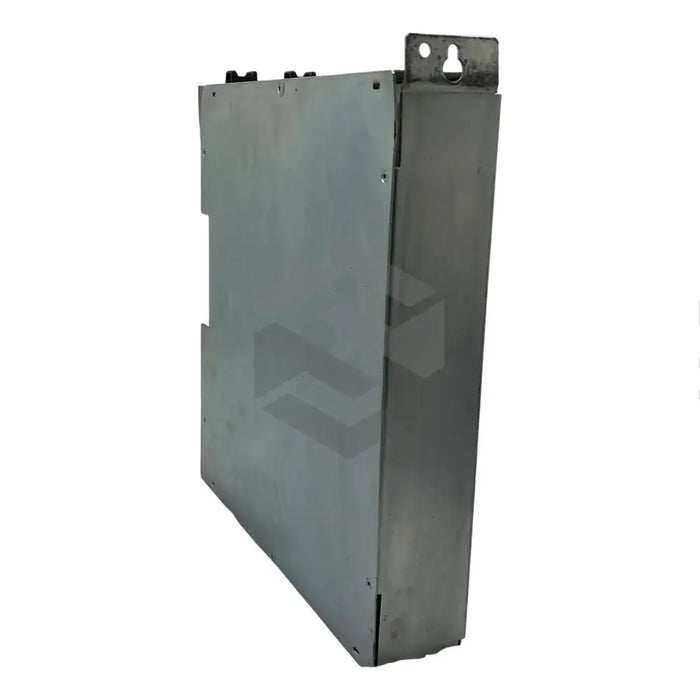

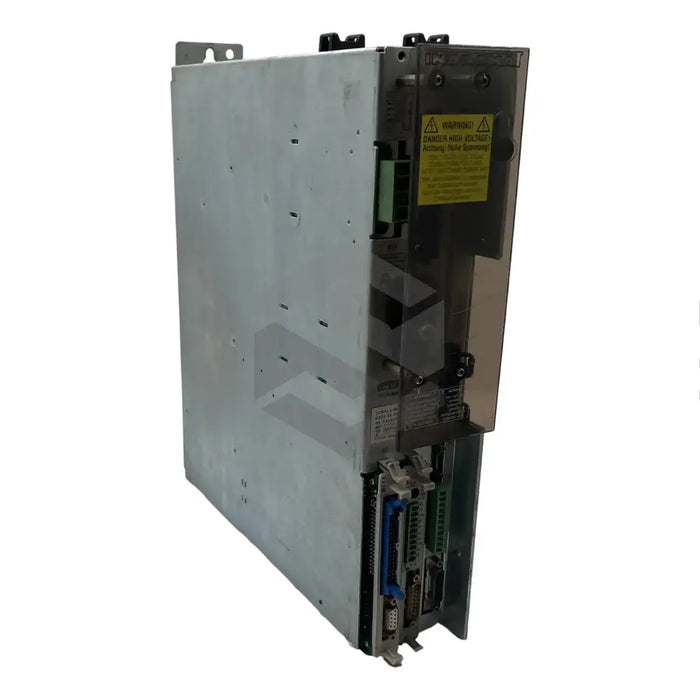

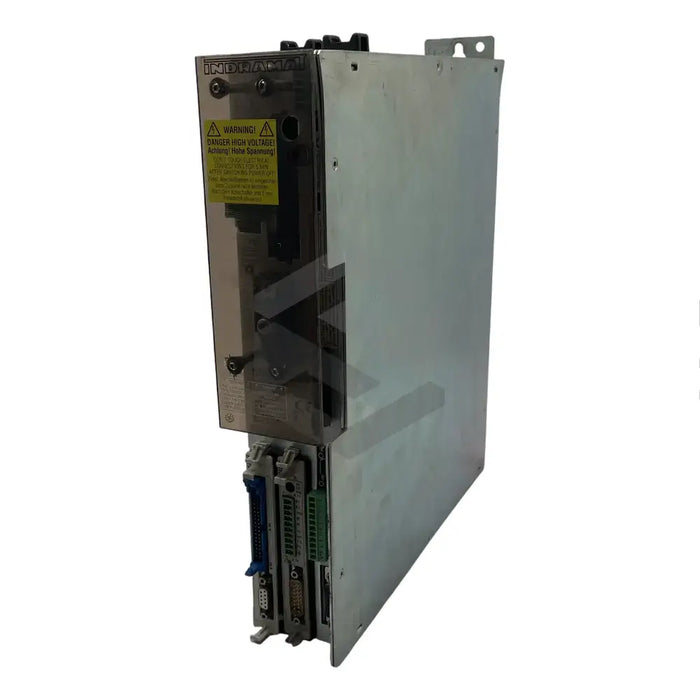

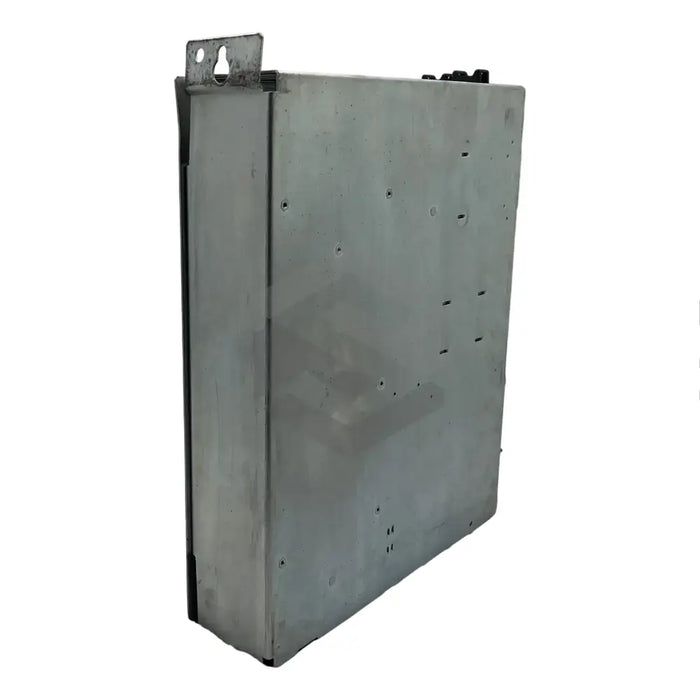

DDS03.1-W050-DL20-01-FW
The DDS03.1-W050-DL20-01-FW is a top-tier drive controller produced by the reputable Bosch Rexroth Indramat. Key features include digital motor feedback to monitor speed and position, ability to accurately manage speed and direction of the motor, and an external dispersal of most energy loss enhancing its efficiency. Operating at a DC bus voltage of 300 volts with a 15 percent tolerance, this 5.5kg model possesses a storage and transport temperature range of -30 to +85 degrees Celsius, maintaining optimal function at maximum temperatures of 45 degrees Celsius without data loss. This IP20 protected drive controller tolerates maximum relative humidity of 25 g/m3, with an allowed maximum humidity of 95 percent. Notable specifications include a continuous current rating of 20 amps and a peak current rating of 50 amps. The adaptable model can operate effectively at altitudes up to 1,000 meters above sea level when handled by a professional technician. Firmware is not included and must be obtained separately.
