DDS03.2-W030-BE32-01-FW

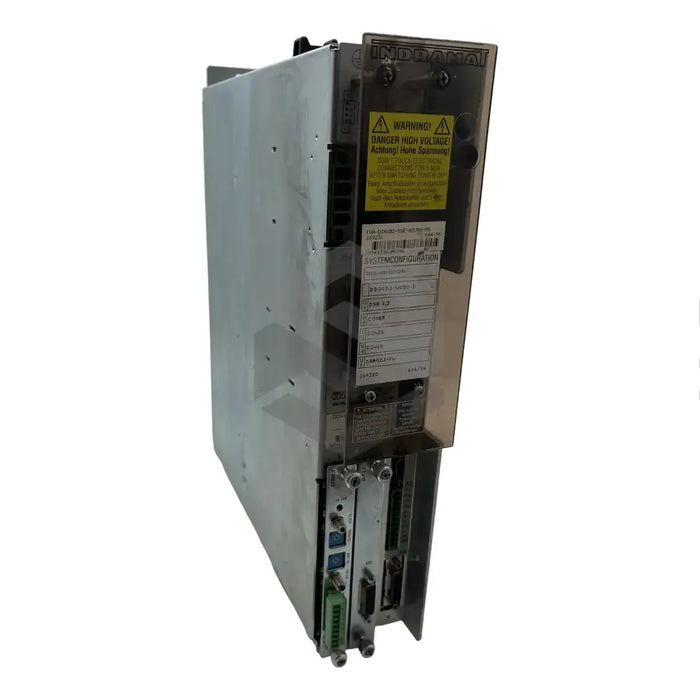

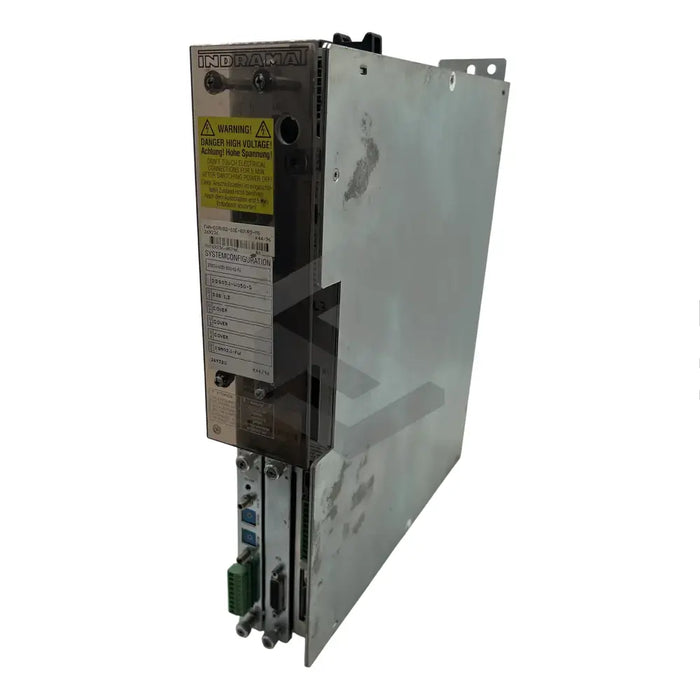

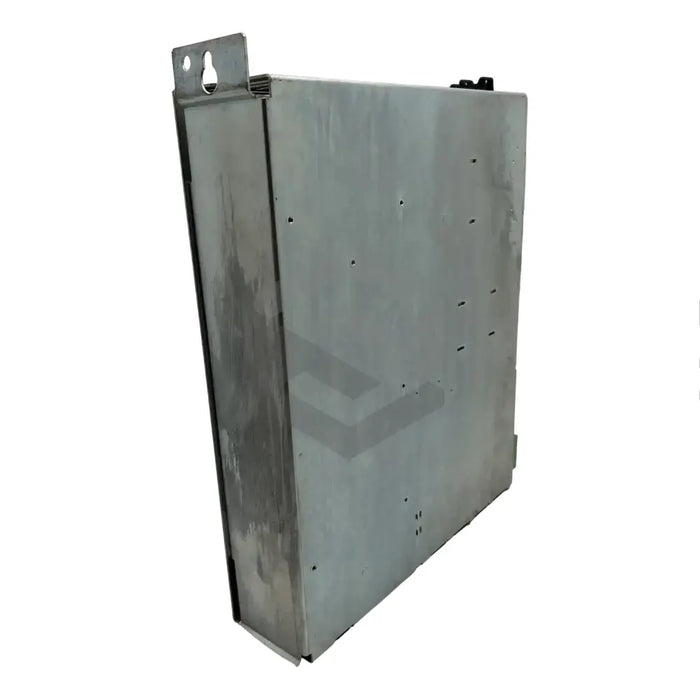

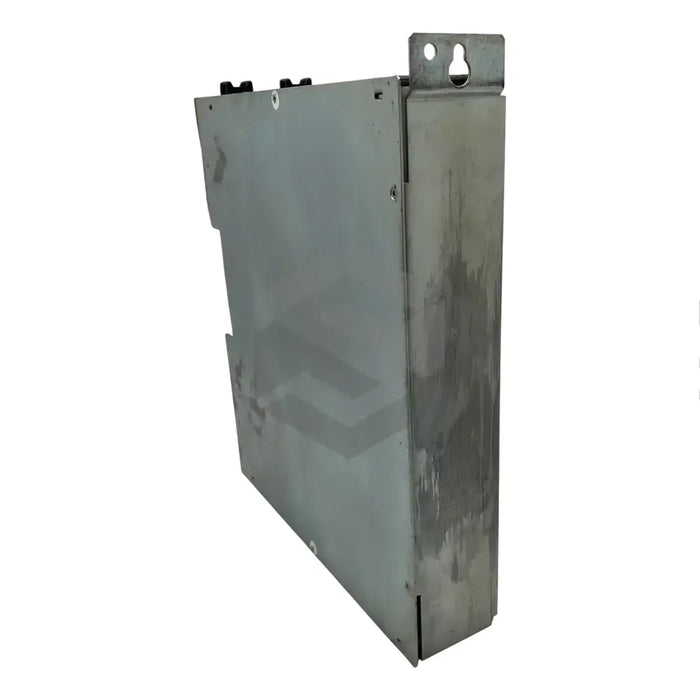

The DDS03.2-W030-BE32-01-FW is a high-quality drive controller made by Bosch Rexroth Indramat, a leading industrial equipment maker. This 5.5 kg model operates at a bus voltage of 300 volts with 15% tolerance, offering a continuous current of 12 amps and a peak current of 30 amps. It is IP20 rated and can handle maximum relative humidity of 25g/m3, up to 95%. This drive controller allows accurate control of motor speed and direction, with an operational temperature limit of 45 degrees Celsius and a storage temperature range from -30 to +85 degrees Celsius. The exterior dispersion of most energy loss from this unit prevents heat accumulation inside the control cabinet. This model also features an air cooling system and digital servo and resolver feedback for motor speed and position monitoring. Please note that although this controller is adaptable to many applications, the firmware must be acquired separately.
