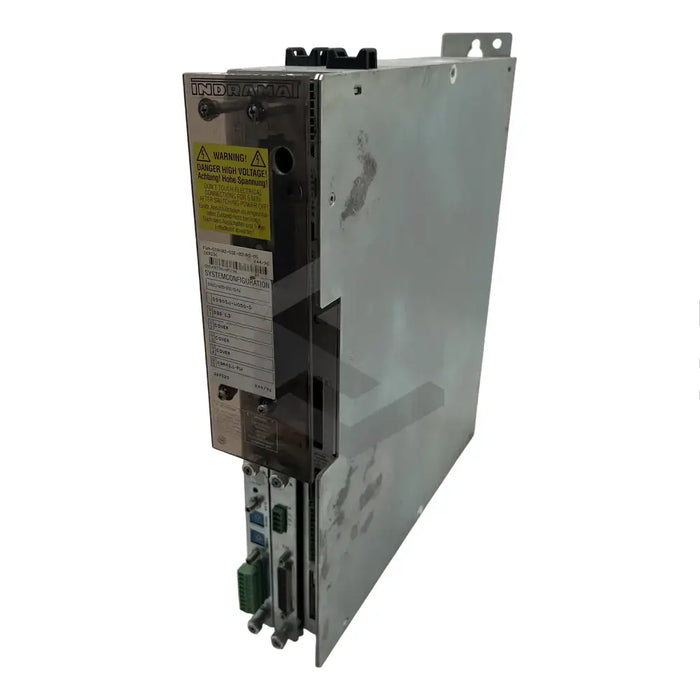

C image of DDS03.2-W030-BE45-01-FW | Main (Front Left)

DDS03.2-W030-BE45-01-FW

by Bosch Rexroth Indramat
$7,936.70 - $7,936.70
$7,936.70
$7,936.70 - $7,936.70
$7,936.70

In Stock, Ships 1 - 3 Days

The DDS03.2-W030-BE45-01-FW is a Bosch Rexroth Indramat product, known for its high performance, reliability, and eco-friendliness. Weighing 5.5 kg, this model of motor drive controller comes with digital and resolver feedback. It features a constant current supply of 12 amps and uses a SERCOS interface module for communication. Enhanced control over motor speed and direction, along with thermal technology for temperature modulation, make it an efficient choice. It has three module slots (U1, U2, U5), configurable for diverse functions. Designed to work under conditions of 0-45 degrees Celsius and 95% humidity, it uses a 24V DC power supply. Complying with IP 20 protection class, it has a DC bus voltage of 300 volts, and a maximum current rating of 30A. The controller can be paired with MDD, LAR, or MKD AC motors for rapid-action drive and is operational up to an installation height of 1,000 meters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS03.2-W030-BE45-01-FW

Weight

5.5 kg

Feedback system

Digital and Resolver

Constant Current Supply

12 amps

Communication Module

SERCOS interface

Module Slots

3 (U1, U2, U5)

Max Installation Height

1000 meters

Operating Temperature

0 to +45 degrees Celsius

Relative Humidity

95%

Power Supply

24 V DC

Protection Category

IP 20

DC Bus Voltage

300 volts

Max Current Rating

30 A

Max Air Humidity

25 g/m3

Supported AC Motors

MDD, LAR, MKD
