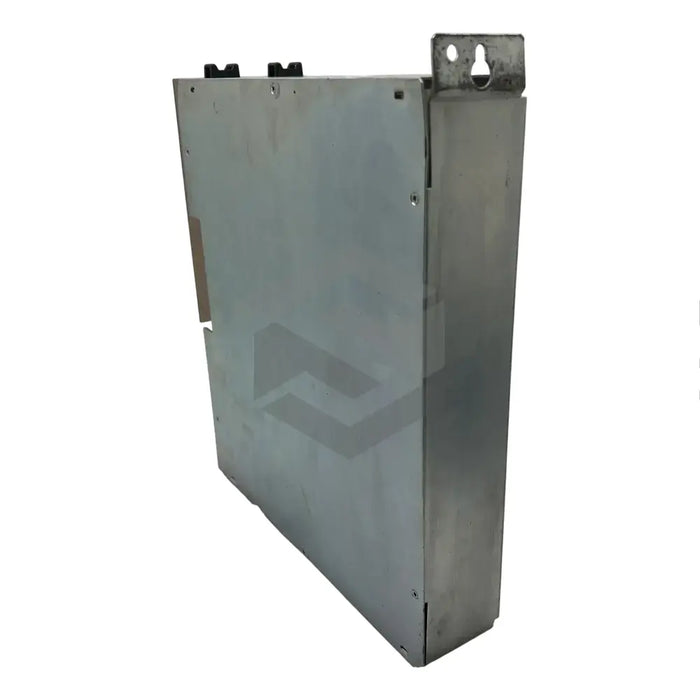

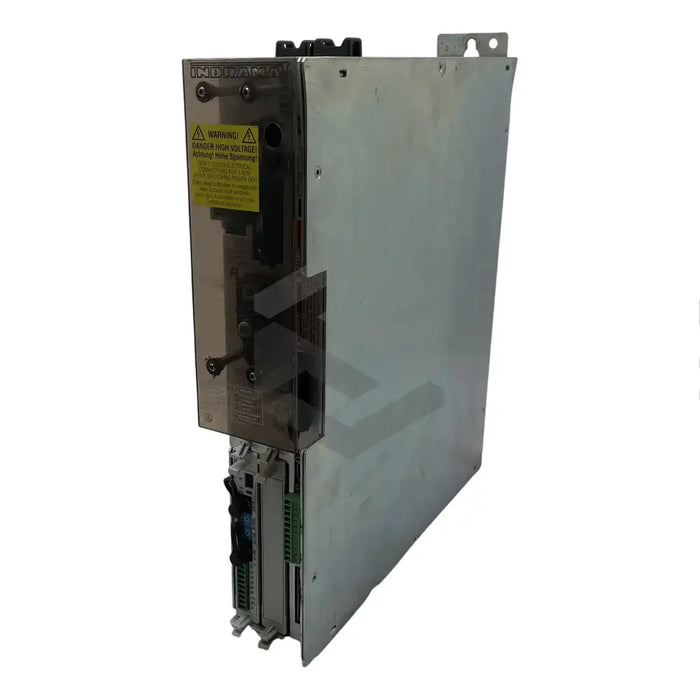

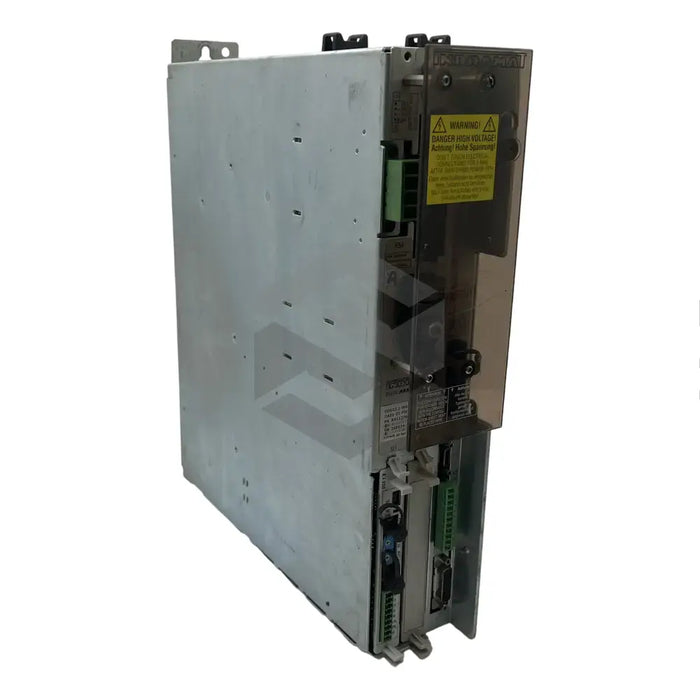

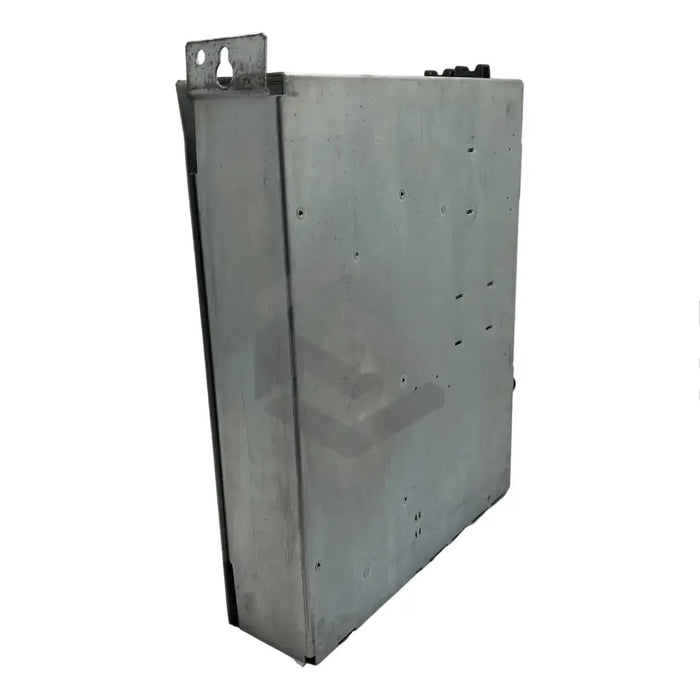

Bosch Rexroth Indramat's DDS03.2-W050-BE12-01-FW is a modular drive controller, allowing for diverse combination with AC servo and main drives to form a compact drive package with minimal energy usage. Designed for use in sectors such as industrial robotics and food processing, the controller is compatible with MKD, MDD, LAF, and LAR AC motors. The DDS03.2-W050-BE12-01-FW links to any Indramat supply unit with a regulated DC 24 V voltage. Comprising hardware and firmware components, the controller entails software modules, plug-in modules, firmware, and the drive controller. The modular drive controller uses heat technology, so it required to be installed in generous control cabinets with an optional cooling system. A SERCOS interface incorporated into the controller enables operation with SERCOS-compatible controls via fiber optic cable. Please note, firmware should be ordered separately and the acceptable operating temperature ranges from 0 to 45 degrees.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DDS03.2-W050-BE12-01-FW
  • Concept: Modular
  • Compatible Motors: MKD, MDD, LAF, LAR AC motors
  • Power Supply: Regulated DC 24 V voltage
  • Compatible Units: KDV 1.3, TVM 2.4, TVM2.1
  • Incompatible Units: TVM 1.2
  • Configuration: Software modules, plugin modules, firmware, drive controller
  • Lines: 3
  • Cooling Method: Internal air
  • Rated Current: 50A
  • Motor Feedback: Digital servo and resolver
  • Interface: SERCOS
  • Software Module: Firmware and drive parameters
  • Installation Requirement: Large Control Cabinet with air conditioning system
  • Permissible Operating Temperature: 0 to 45 degrees
