DDS03.2-W050-BE23-01-FW

Request a quote

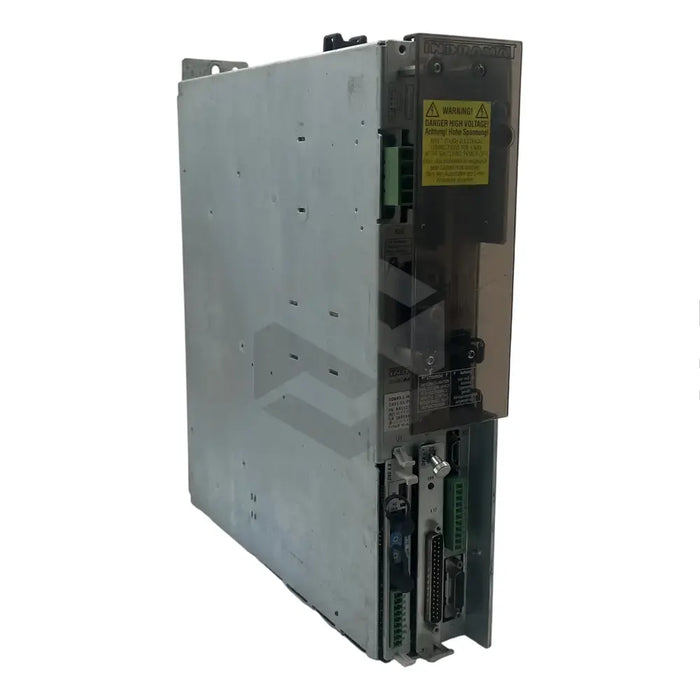

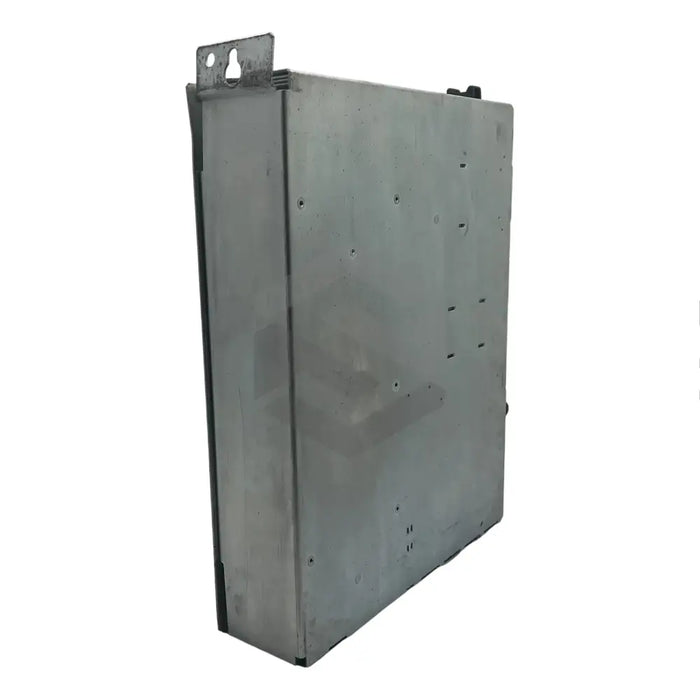

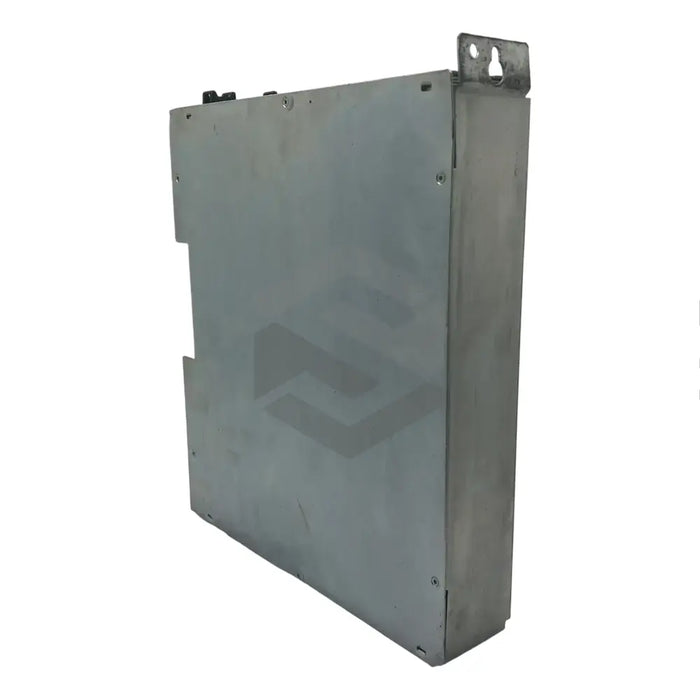

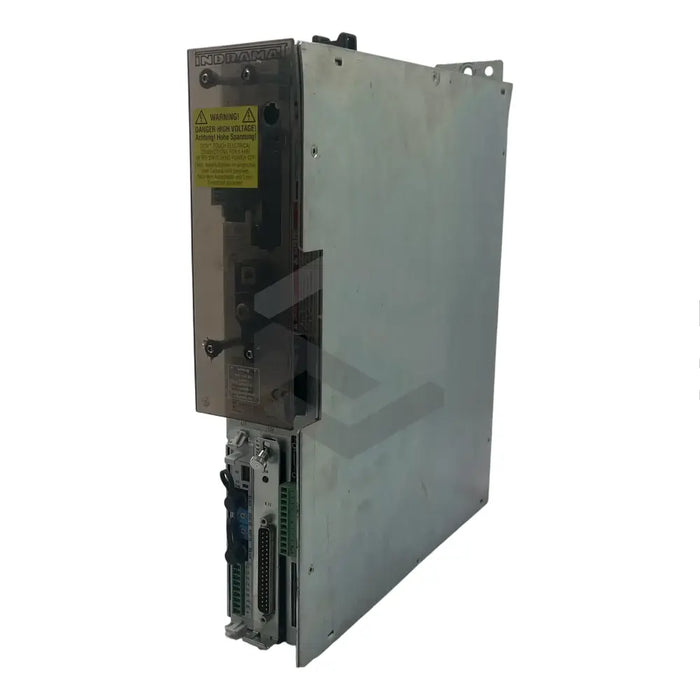

The DDS03.2-W050-BE23-01-FW is a drive controller produced by Bosch Rexroth Indramat that features a SERCOS interface communications module capable of linking to necessary controllers through fiber optic cable. Key characteristics include air-cooling ventilation to prevent overheating, robust electrical connections for durability, and an flexible application range due to mixable software modules. With a constant current draw of 20 A and a peak draw of 50 A, it operates on a DC bus voltage of 300 volts, within a 15% tolerance. The controller possesses a temperature range of 0 to +45 degrees Celsius, while it can sustain -30 to +85 degrees during transport or storage. The model, compliant with EMC rules to eliminate unwanted radio frequencies, also features motor temperature monitoring and is applicable for controlling synchronous and frameless motors in various industrial settings.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive controller
  • Model: DDS03.2-W050-BE23-01-FW
  • Interface: SERCOS interface
  • Cooling Method: Air Cooling
  • Software Modules: Mixed number of software
  • Current Consumption: Constant 20 A, Peak 50 A
  • Communications Module Connection: Fiber Optic Cable
  • Motor Feedback: Digital and Resolver
  • DC Bus Voltage: 300 volts with 15% tolerance
  • Motor Temperature Monitoring: Yes
  • Operating Temperature: 0 to +45 degrees Celsius
  • Storage Temperature: -30 to +85 degrees Celsius
  • EMC Compliance: Yes
  • Application: Controls and monitors the working of synchronous and frameless motors.
