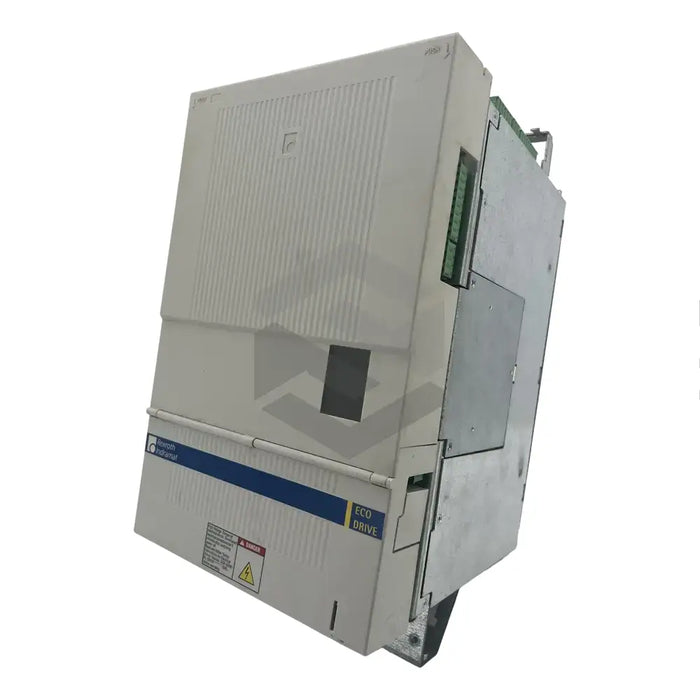

product Main (Front Left) image of DKC01.3-200-7-FW

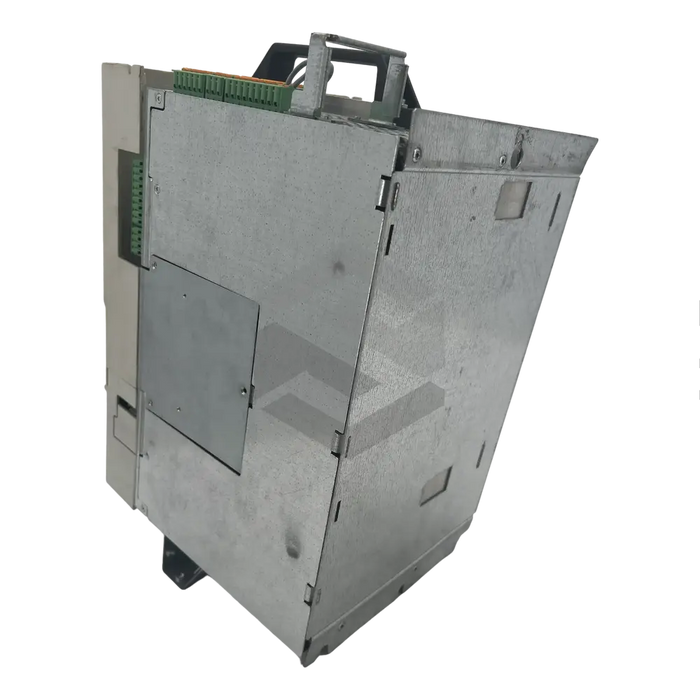

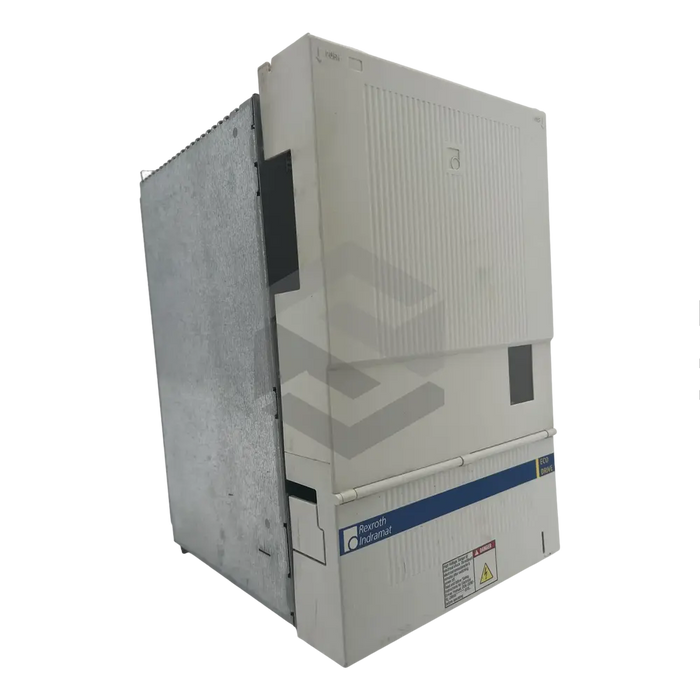

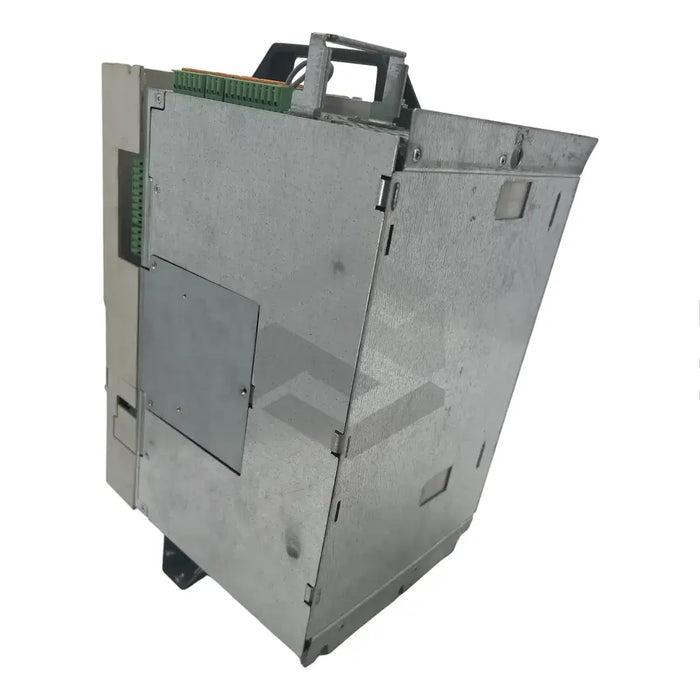

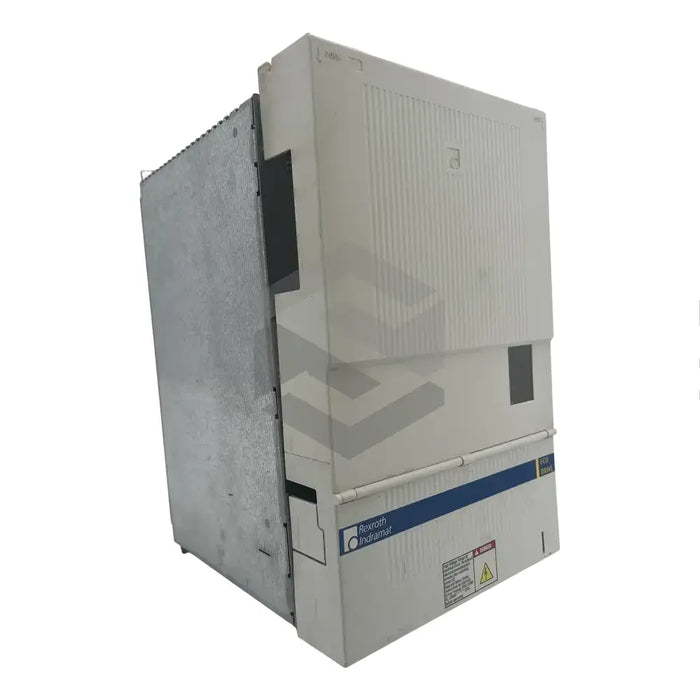

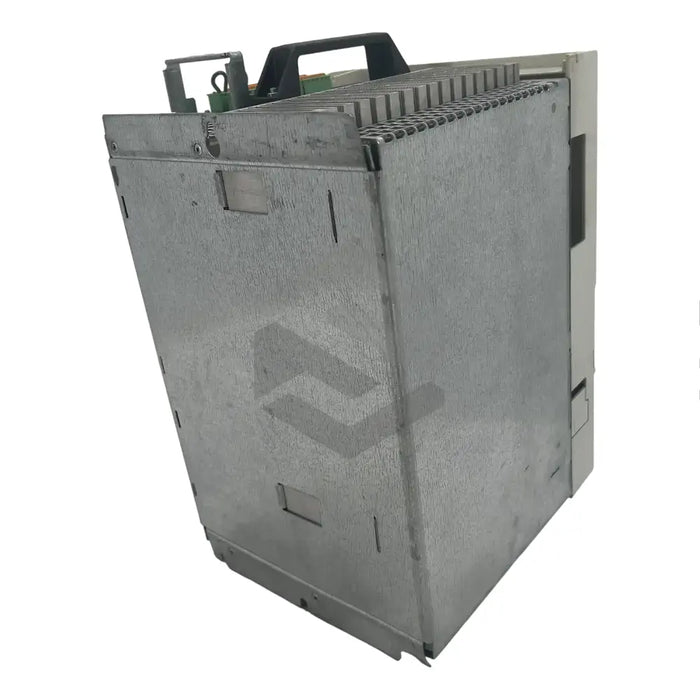

DKC01.3-200-7-FW

by Bosch Rexroth Indramat
$13,366.47 - $13,366.47
$13,366.47
$13,366.47 - $13,366.47
$13,366.47
In Stock, Ships 1 - 2 Days
The DKC01.3-200-7-FW drive controller, produced by Rexroth Bosch Indramat, ensures maximum functionality for a range of applications. This cost-effective solution boasts superior performance, offering easy start-up, automatic parameter matching, and integrated holding brake control among its valuable features. The device can notably function as a reliable servo drive with built-in position control, an electronic gearbox, a stepper interface, and an analog speed interface. With an operable altitude of up to 1000 meters, a tolerance for up to 95% relative humidity, and a temperature range of -30 to 85 degrees for storage and 0 to 45 degrees for operation, it is remarkably durable. Weighting 4.4kg, it uses natural air for cooling and is guarded by an IP 20 protection category. Notable is its 200A current type, a circuit voltage of 700V, and its firmware which is ordered separately. Finally, the controller can be safely housed in an IP 10 certified control cabinet.
30 Day Warranty
Technical Specifications
  • Manufacturer: Rexroth Bosch Indramat
  • Product Line: ECODRIVE drive controllers
  • Model: DKC01.3-200-7-FW
  • Applications: machine tools, handling machines, packaging, food processing machines
  • Features: easy startup, automatic parameter matching, integrated holding brake control, safe operation, dynamic operation
  • Functions: Servo drive with integrated position control, stepper interface, electronic gearbox function, analog speed interface
  • Max Installation Height: 1000m
  • Max Relative Humidity: 95%
  • Absolute Humidity: 25g/m3
  • Storage Temperature: -30 to 85 degrees
  • Operating Temperature: 0 to 45 degrees
  • Cooling Method: Natural Air
  • Weight: 4.4kg
  • IP Protection: IP 20
  • Current Type: 200A
  • Rated Circuit Voltage: 700V
  • Separate Firmware: Yes
  • Mounting: Control Cabinet with IP 10 protection
  • Operating Modes: Speed and Angle Synchronization
  • Position Input: Degrees
