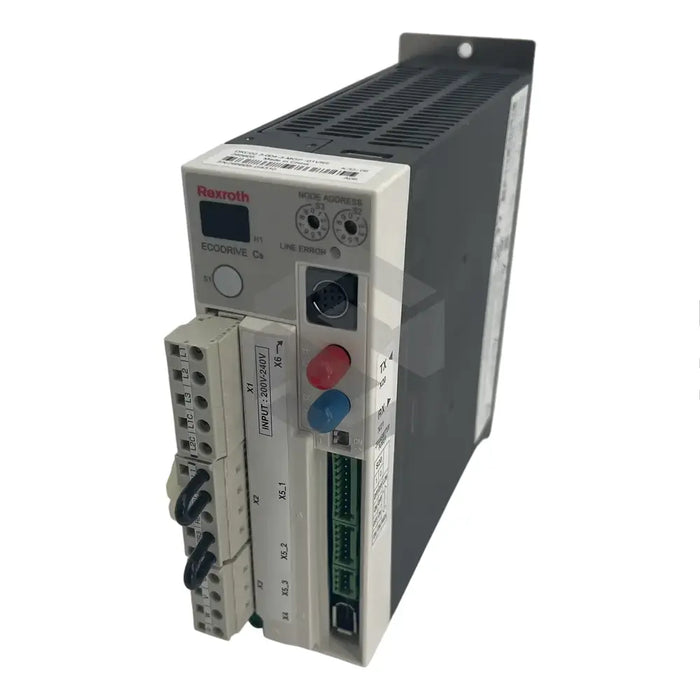

C image of DKC02.3-004-3-MGP-01VRS | Main (Front Left)

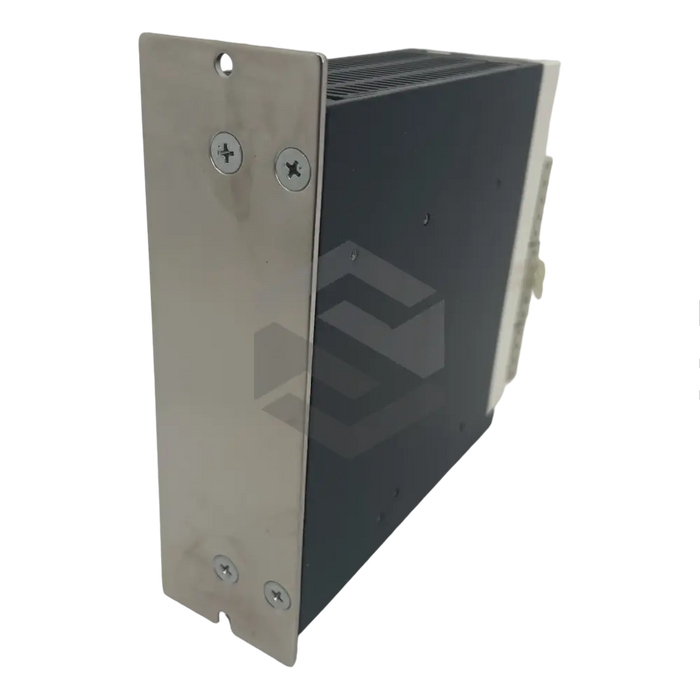

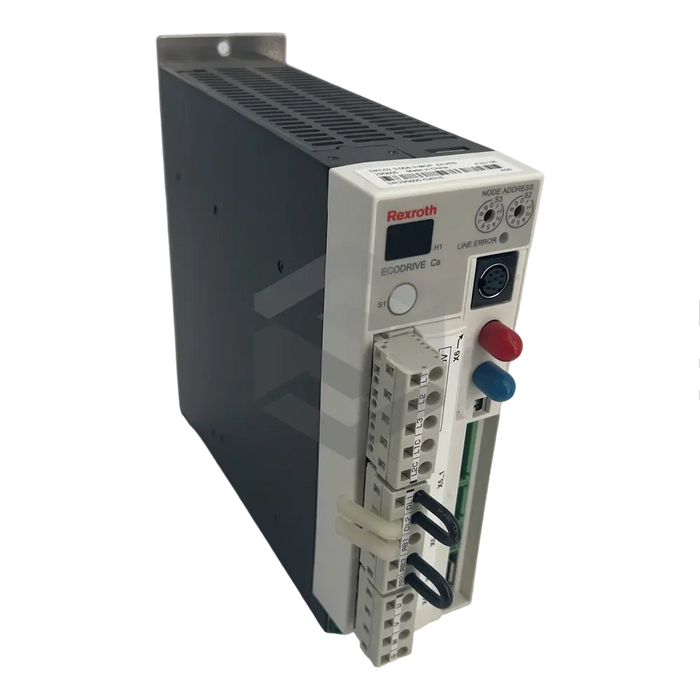

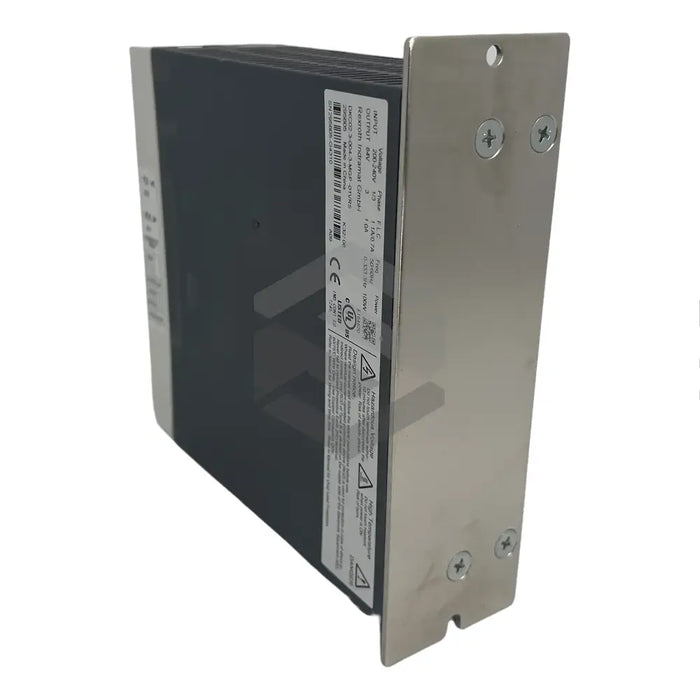

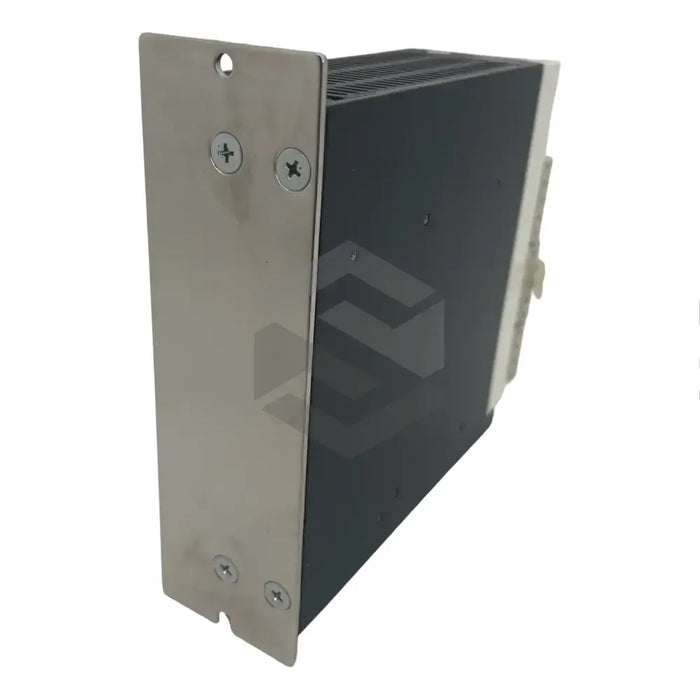

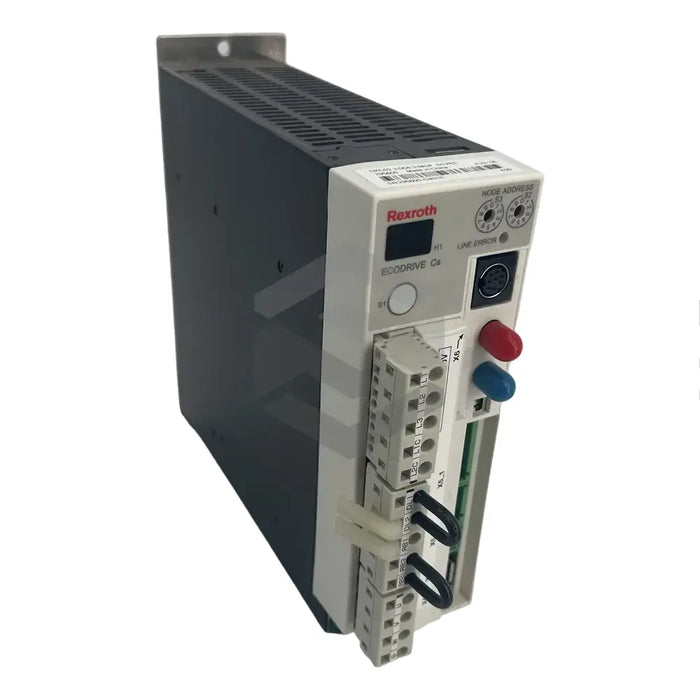

DKC02.3-004-3-MGP-01VRS

by Bosch Rexroth Indramat
$1,789.00 - $1,789.00
$1,789.00
$1,789.00 - $1,789.00
$1,789.00

In Stock, Ships Fast

Rexroth Bosch, an industry leader in durable, high-performance motion control accessories, produces cutting-edge products including mains, filters, power cables, servo controllers, drive controllers, spindle drives, and supply modules. These cost-effective automation products are specifically designed by expert teams utilizing the latest technology to ensure superior efficiency and ruggedness. Among these, the DKC02.3-004-3-MGP-01VRS EcoDrive is an advanced firmware module. Designed for enclosure installation offering a pollution degree 2, this device has no over-speed protection and can operate optimally within a maximum ambient temperature of 40-55 degrees Celsius. The unit weighs approximately 1.8kgs with dimensions of 182 mm height, 55 mm width, and 170 mm depth with a suggested 50mm clearance for top and bottom mounting. This EcoDrive has a rated input voltage of 24V AC, a short-circuit current rating of 5000 W, and a frequency range of 50-60Hz. It is designed for a maximum permissible output voltage of 84V and a max output current of 1A, with a maximum estimated input current of 1.1A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

DKC02.3-004-3-MGP-01VRS EcoDrive

Installation

Enclosure with pollution degree 2

Over-speed Protection

Absent

Maximum Ambient Temperature (Nominal Data)

400C

Maximum Ambient Temperature (Reduced Data)

550C

Weight

1.8kgs

Height

182 mm

Width

55 mm

Depth

170 mm

Top Mounting Distance

50 mm

Bottom Mounting Distance

50 mm

Rated Input Voltage

200 to 230 AC

Input Number of Phases

3

Tolerance Input Voltage

N/A

Input Frequency

50 to 60 Hz

Max Output Voltage

84 V

Max Output Current

1 A

Max Input Current

1.1 A

Branch Circuit Protection Fuse

2

Power Dissipation (Continuous Current and DC Bus Power)

100
