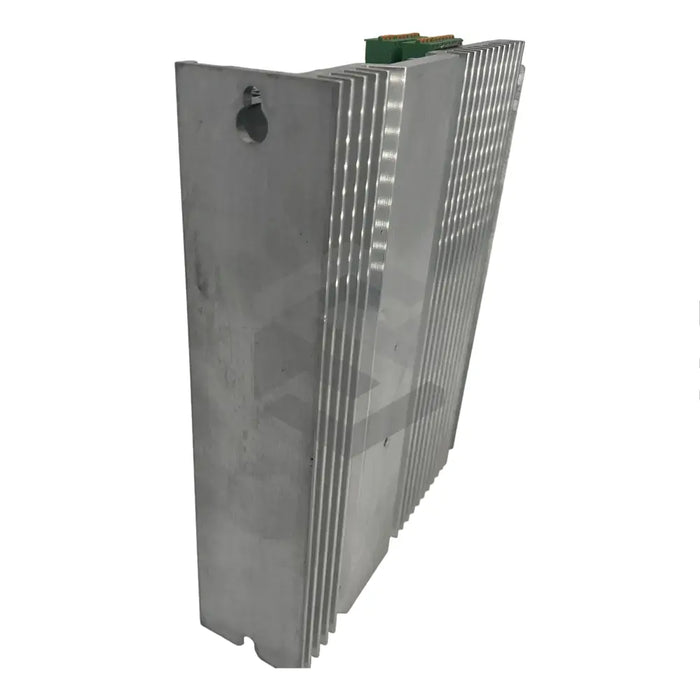

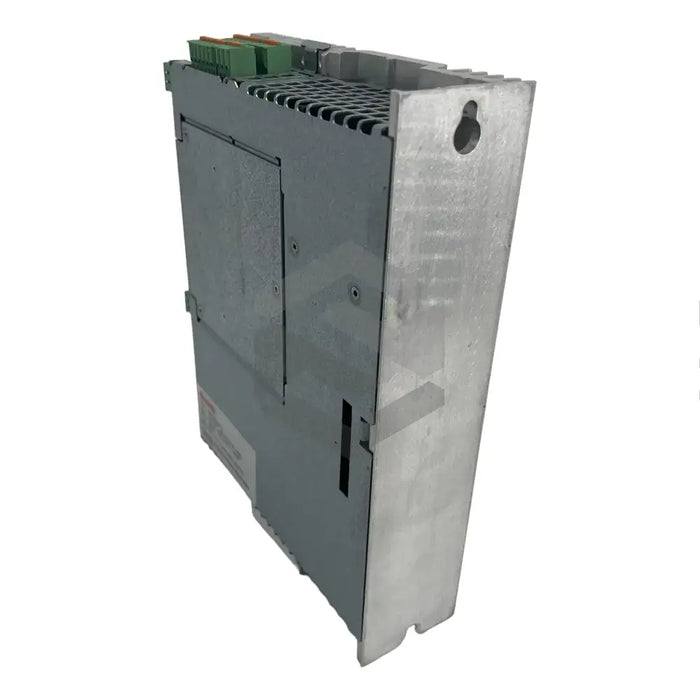

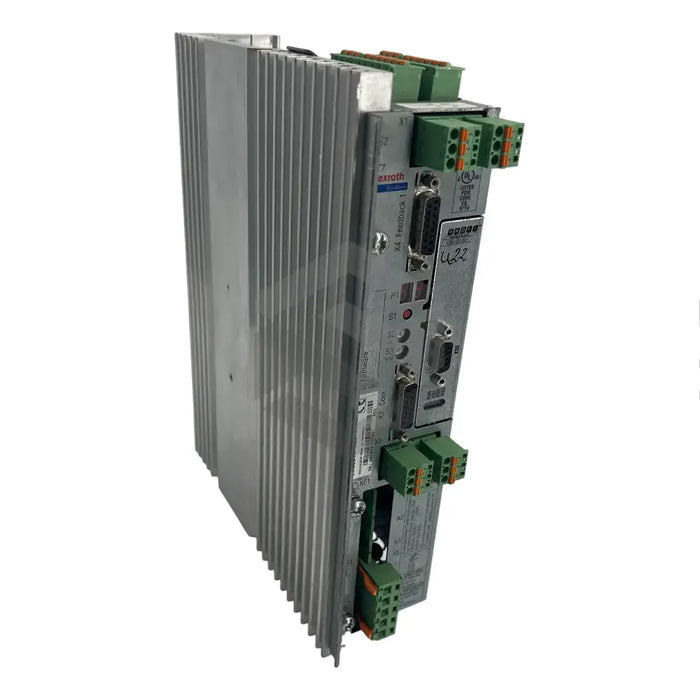

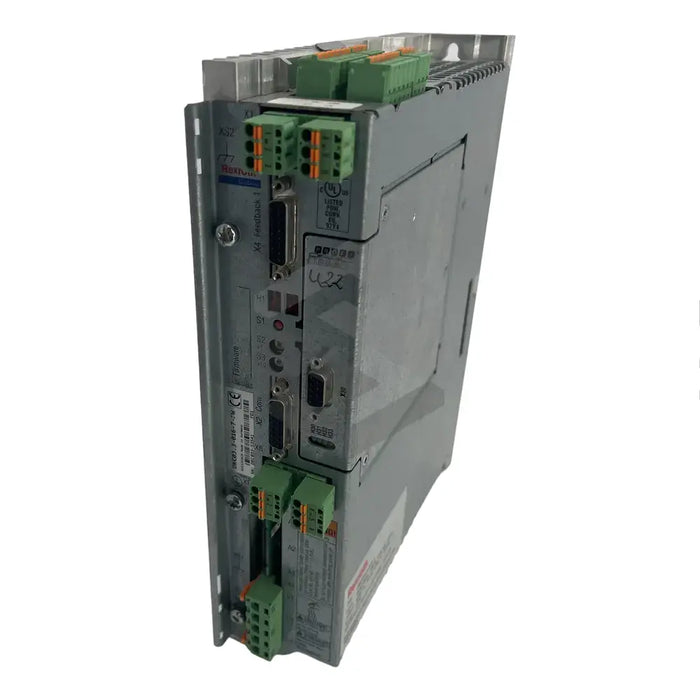

product Main (Front Left) image of DKC03.3-016-7-FW

DKC03.3-016-7-FW

by Bosch Rexroth Indramat
$3,597.75 - $3,597.75
$3,597.75
$3,597.75 - $3,597.75
$3,597.75
In Stock, Ships 1 - 2 Days
The DKC03.3-016-7-FW EcoDrive, manufactured by Bosch Rexroth Indramat, is a testament to robust and cost-effective automation solutions. This drive controller is customizable to fit your specific industrial needs. The device, featuring an estimated net weight of 1.8 kg, has dimensions of 55 mm in width, 182 mm in height, and 170 mm in depth. Installation requires a space of 50 mm at the top and bottom. Using class 1 copper (60/750C) or equivalent for field wiring is recommended, with a protection fuse of 3 to 4. The drive operates optimally with input and output phase numbers of 3 each, an input rated voltage of 200-230 AC, a controlled voltage of 24 AC, an input frequency of 50-60 Hz and a maximum output frequency of 333.3 Hz. Its operating temperature under field-wiring is 40°C, with a maximum ambient temperature of 55°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: EcoDrive
  • Product Number: DKC03.3-016-7-FW
  • Ambient Temperature: Max 550C
  • Operating Temperature: 400C
  • Weight: 1.8 kgs
  • Dimensions: 55 mm (W) x 182 mm (H) x 170 mm (D)
  • Mounting Clearance: 50 mm top and bottom
  • Field Wiring Material: 60/750C Copper Class 1 or equivalent
  • Protection Fuse: 3 to 4
  • Short Circuit Current Rating: 5000 W
  • Input Phases: 3
  • Output Phases: 3
  • Rated Input Voltage: 200 to 230 AC
  • Rated Control Voltage: 24 AC
  • Allowable Input Frequency: 50 to 60 Hz
  • Maximum Output Frequency: 333.3 Hz
