S image of DKC05.3-012-3-MGP-01VRS

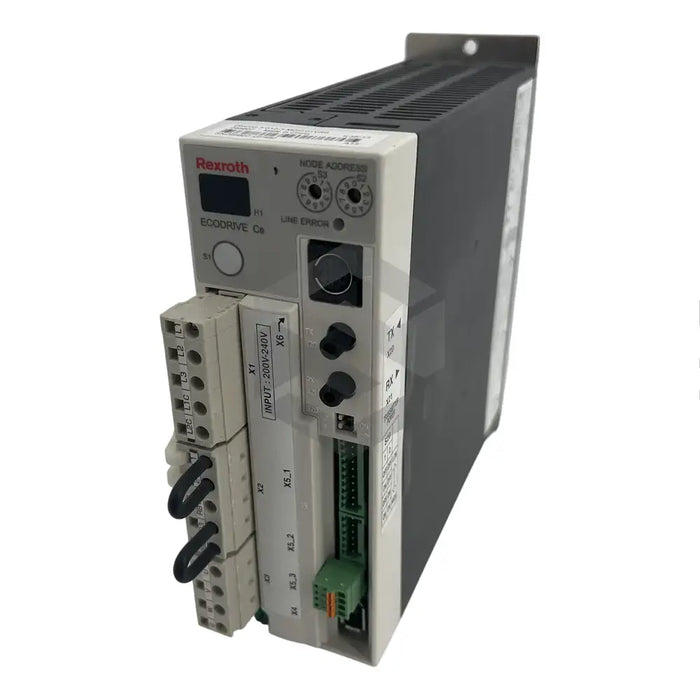

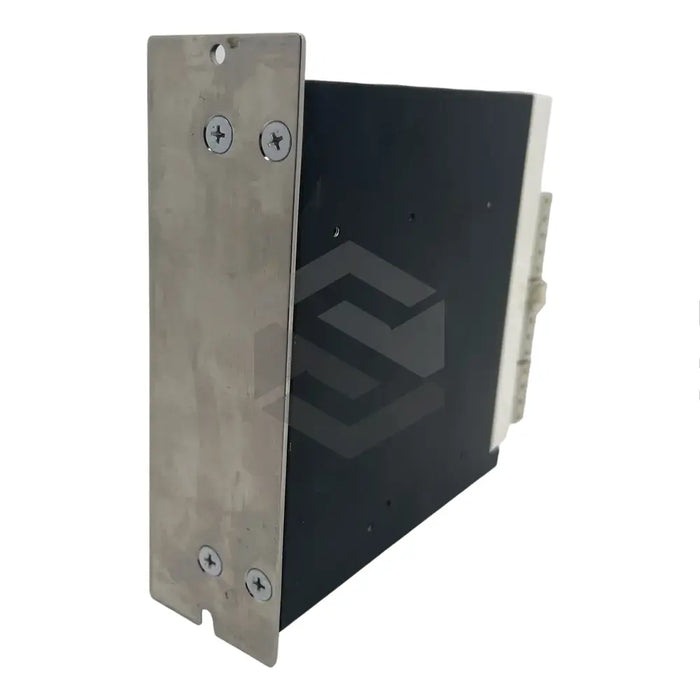

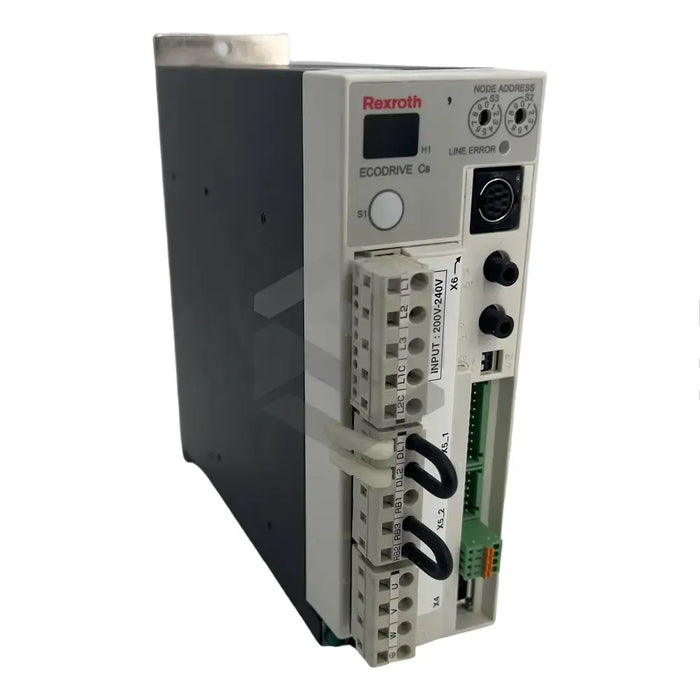

DKC05.3-012-3-MGP-01VRS

by Bosch Rexroth Indramat
$1,789.00 - $10,000.00
$10,000.00
$1,789.00 - $10,000.00
$10,000.00

Available, Shipping Varies

Bosch Rexroth Indramat's DKC05.3-012-3-MGP-01VRS is a high-performance drive controller crafted to operate the EcoDrive Cs drive system’s 400-Watt MSM synchronous motor. Capable of connecting to both single and three-phase 200 – 240 V power sources, this versatile unit delivers an optimal input voltage frequency of 50 – 60 Hz and requires a connected load of 1.4 kVA. The DKC05.3 model operates with a continuous input current of 2.2/1.8 A and delivers a maximum output current of 7.5 A, within an output frequency range of 0 – 333.3 Hz. Installation requires a minimum IP54 protection control cabinet, with the controller itself offering IP20 protection. Featuring a CANopen interface for seamless real-time communication and a serial interface for PC connectivity, this drive controller is typically used in industrial applications such as handling systems, printing machines, and machine tools. Installation environments should not exceed 1000 meters above sea level, with an ambient temperature range of 0 to +40 degree Celsius. The model's DC-bus operates at a nominal voltage of 300 VDC, with a continuous power consumption of 457 W. It also has an internal brake resistor for overvoltage protection and an operator panel for manual programming and error diagnosis.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DKC05.3-012-3-MGP-01VRS

Motor Compatibility

400 Watts MSM synchronous motor

Power Input Single Phase

200 – 240 V

Power Input Three Phase

200 – 240 V

Input Voltage Frequency

50 – 60 Hz

Connected Load Requirement

1.4 kVA

Nominal Continuous Input Current

2.2/1.8 A

Maximum Output Current

7.5 A

Output Frequency Range

0 – 333.3 Hz

Mounting Direction

Vertical

Protection Standard

IP20

Interface

CANopen and serial (RS232/RS484)

Typical Applications

Handling systems, printing machines, machine tools

Ambient Temperature for Installation

0 to +40 degree Celsius

Maximum Altitude for Installation

1000 meters above sea level

DC-Bus Nominal Voltage

300 VDC

Continuous Power Consumption

457 W

Features

Internal brake resistor and operator panel

Firmware

Standard.
