Original price $2,821.00 - Original price $2,821.00
Original price
$2,821.00 - $2,821.00
Current price $2,821.00
In Stock, Shipping Varies

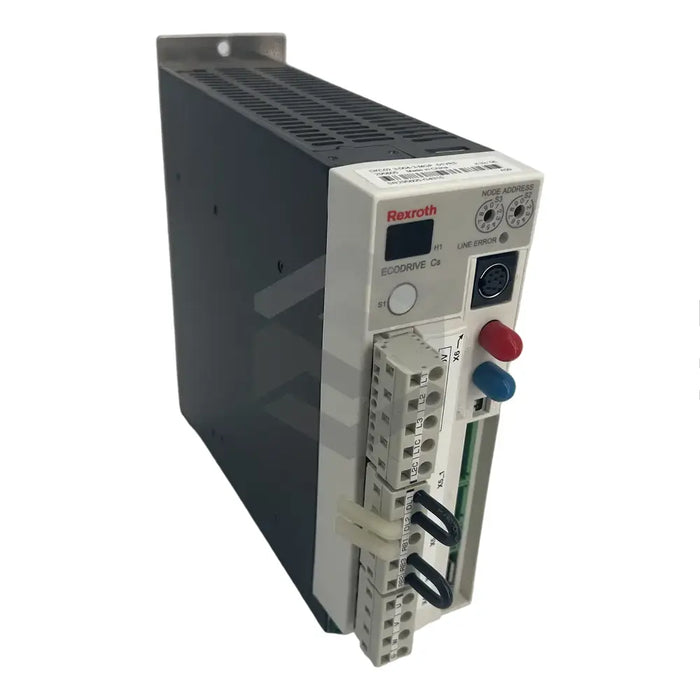

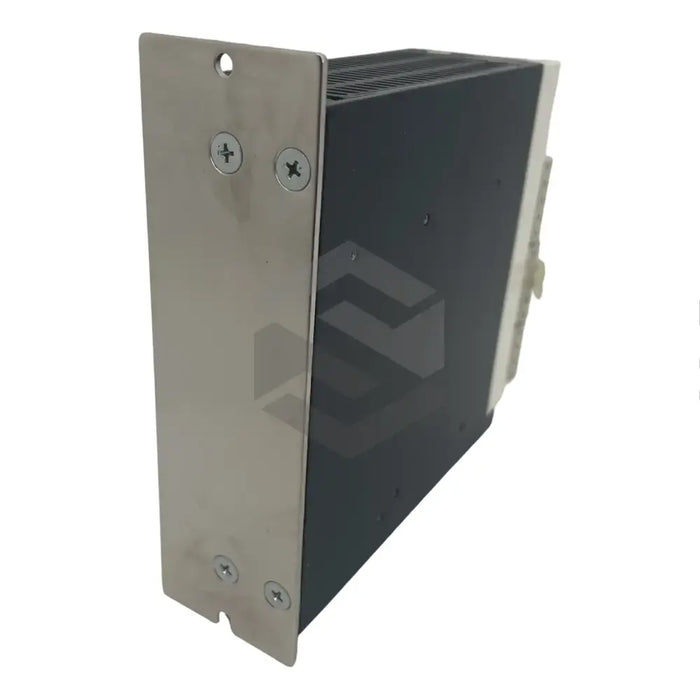

The DKC10.3-004-3-MGP-01V24, engineered by Rexroth Indramat from Bosch, is a state-of-the-art servo drive controller designed for precision control of servo motors in various industrial servo systems. The controller offers superior flexibility for diverse applications, including handling and packaging machines. Though it generates considerable heat during operation, maintaining a horizontal and vertical minimum distance of 10 mm and 100 mm from other devices, respectively, can mitigate potential issues. It tolerates contamination levels up to 2 as per EN 50178 and possesses an IP20 protection category rated housing to prevent fine dust and moisture damage. The servo motors that connect to this drive controller can yield an output current as high as 39.8A. The controller operates with a rated current of 4A and an input voltage of 200 to 240 volts. Operate as directed by the drive's documentation, with proper installation and operation left to skilled technicians to prevent machine breakdowns or accidents.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Controller
  • Technology: State-of-the-Art
  • Uses: Handing machines, packaging machines, and more
  • Heat Production: Significant
  • Horizontal Installation Distance: 10 millimeters
  • Vertical Installation Distance: 100 millimeters
  • Contamination Level: 2 (EN 50178)
  • Protection Category: IP20
  • Output Current: Up to 39.8 watts
  • Rated Current: 4 Amperes
  • Operating Voltage: 200 to 240 volts
  • Nominal Input Current: 1.1 or 0.7 Amperes depending on interface
  • Stop-Start Resistor: 4.7 ohms, 17 watts continuous power
  • Maximum Power of Braking Resistor: 1.68 kilowatts
