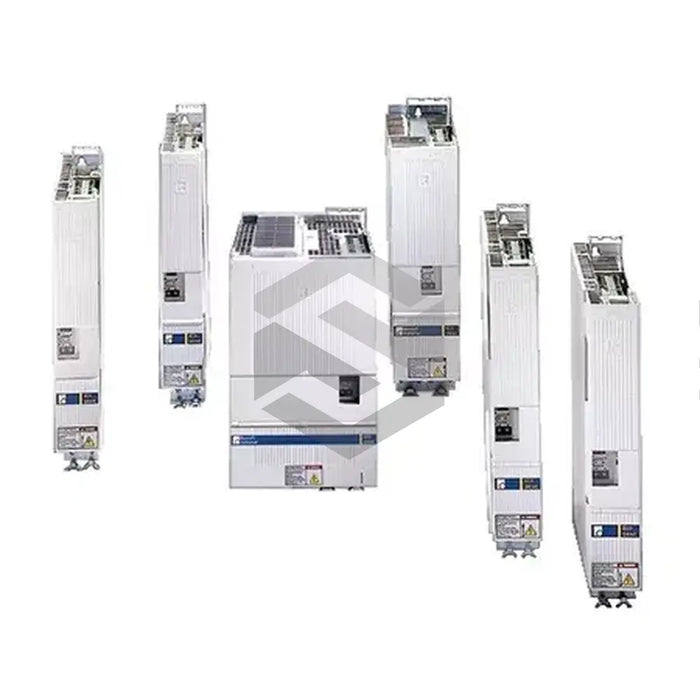

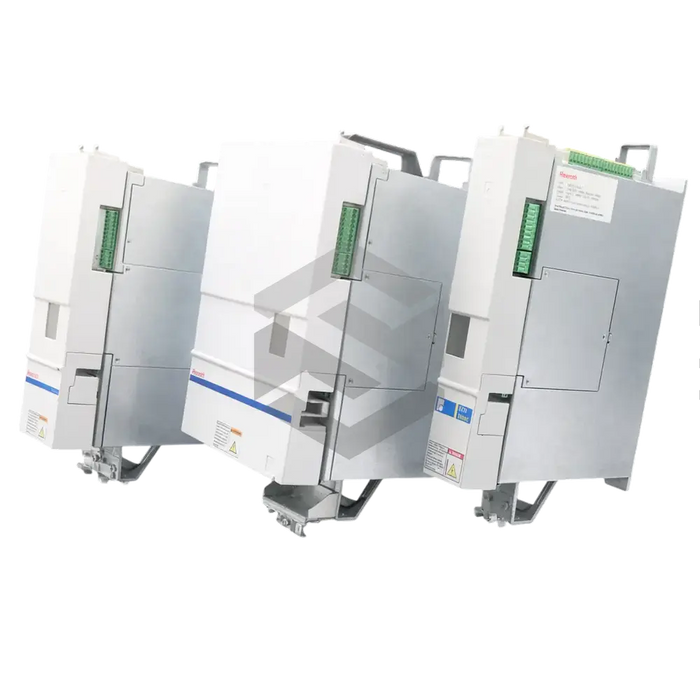

S image of DKC11.3-200-7-NW

DKC11.3-200-7-NW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DKC11.3-200-7-NW is a 200 Amps drive controller from the third version and eleventh series, weighing approximately 19.5 kg. Its maximum output current is 200 Amps, with a top output frequency of 1000Hz, while its output voltage reaches up to 800 V. The internal wiring meets UL 508 A standards and it offers overload and short-circuit protection. The controller operates optimally maximum ambient air temperatures of 45 oC (with nominal data) or 55 oC (with derated nominal data), and is suitable for environments with a pollution level of 2. The controller runs on an input control voltage of 24 volts, an input voltage of 200-480 volts (with a tolerance of +/- 10%), and an input current rating of maximum 38 Amps. It operates at 50 - 60 Hertz for the input frequency and its cable's maximum permissible inductance per unit length is 100 nH/m. The controller should be positioned to prevent water splashes from its cooling blower.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

200 Amps drive controller

Model

DKC11.3-200-7-NW

Version

3

Series

11

Weight

19.5 kilograms

Max Output Current

200 Amps

Max Output Frequency

1000Hz

Internal Wiring Size

AWG at IL_cont

Protection Features

Overload and short-circuit protection

Min Contact Load Rating

100 mA

Max Switch Voltage

40 V DC

Max Output Voltage

800 V

Without derated data Max Ambient Temp

45 oC

With derated nominal data Max Ambient Temp

55 oC

Pollution Compatibility

Degree 2

Input Control Voltage

24 volts

Power Consumption without Brake

29 watts

Input Voltage Rating

200 – 480 volts (+/- 10%)

Number of Input Phases

3 × AC

Max Input Current

38 Amps

Input Frequency Rating

50 – 60 Hertz

Max Inductance per Cable Length

100 nH/m

Cable Ambient Temperature

Less than 40 degrees C

Condensation Precaution

No direct splash/spray on electronic compartment.
