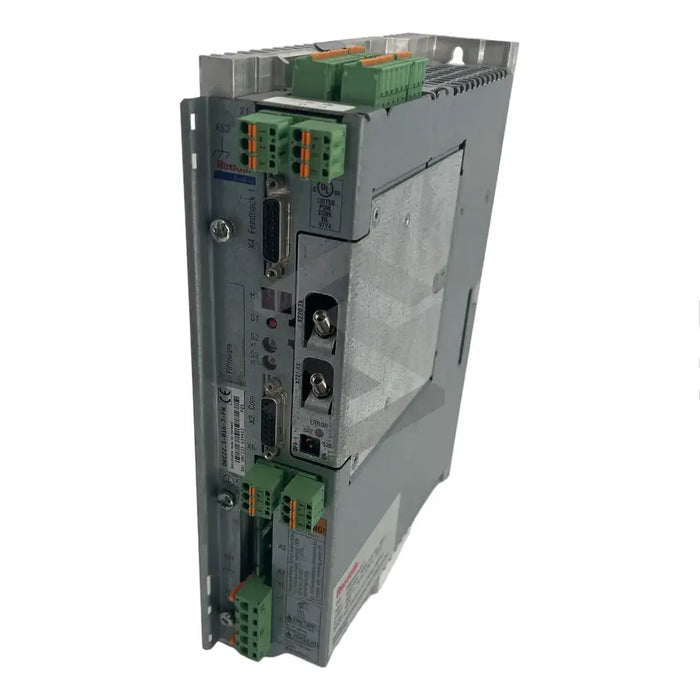

product Main (Front Left) image of DKC22.3-016-7-FW

DKC22.3-016-7-FW

by Bosch Rexroth Indramat
Request a quote
The DKC22.3-016-7-FW servo drive, produced by Bosch Rexroth Indramat, is exceptional for high-speed operations due to its incorporation of speedy transfer protocol, SERCOS. It's typically used within an ECODRIVE03 system and marked as a version 3 of the DKC drives. Its rating for maximum current is 16A, as indicated by its type-code. A distinguishing feature is its need for a separately purchased firmware module, indicated by the 'FW' in its code. It includes two ports, supporting an array of encoders, which when paired correctly optimize precision in controlling the servo-motor. The drive can be powered via a singular or group source, even through a central supply and can run on either a one-phase or 3-phase AC supply.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: DKC22.3-016-7-FW
  • Integration: SERCOS connectivity
  • System: ECODRIVE03
  • Drive Version: Version 3
  • Series: Series 22
  • Maximum Current: 16A
  • Voltage Category Number: 7
  • Firmware: Separately ordered required
  • Ports: Two ports for supporting encoder connection
  • First Port Encoder Support: Single-turn or multi-turn DSF/HSF encoder, Resolver with or without FDS
  • Second Port Encoder Support: Sine encoder, EnDat absolute encoder, Gear-type encoder with 1Vss signals, Square-wave encoder with 5V TTL signals
  • Power Supply: Single source, Group source without DC bus connection, Central supply
  • AC Supply Configuration: Single-phase or 3-phase AC
