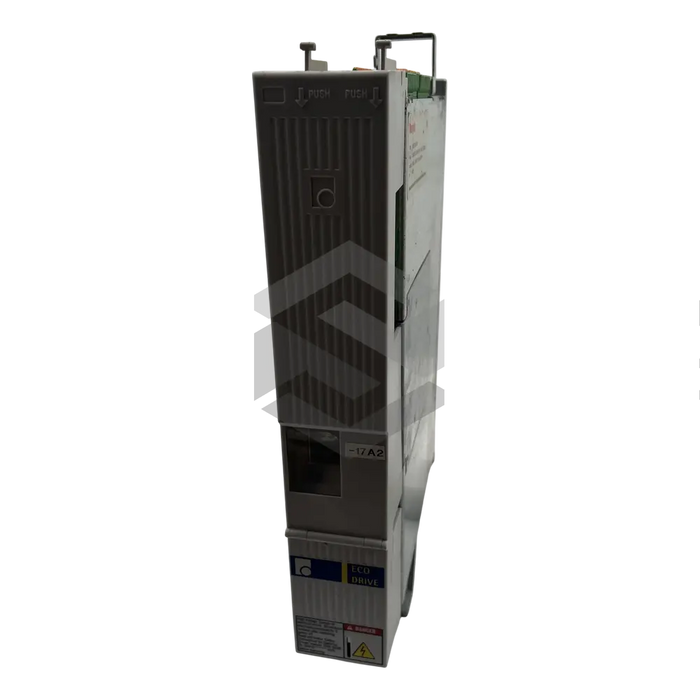

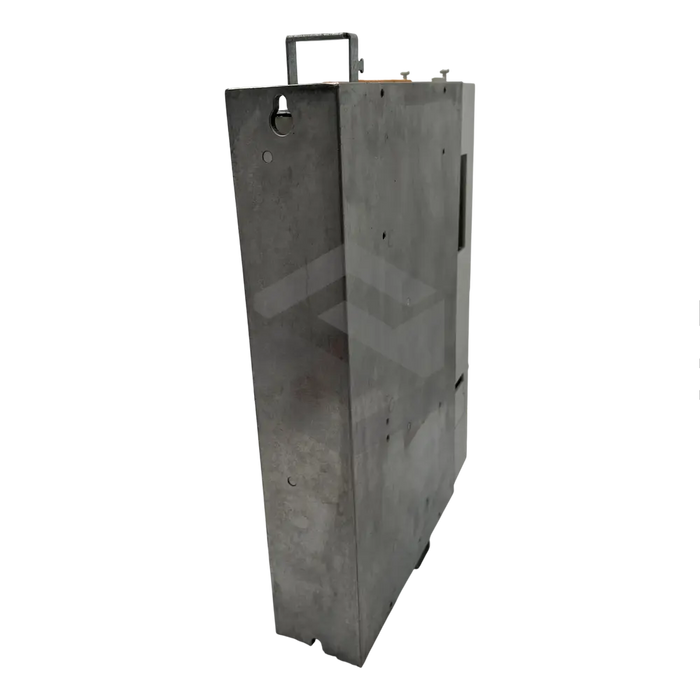

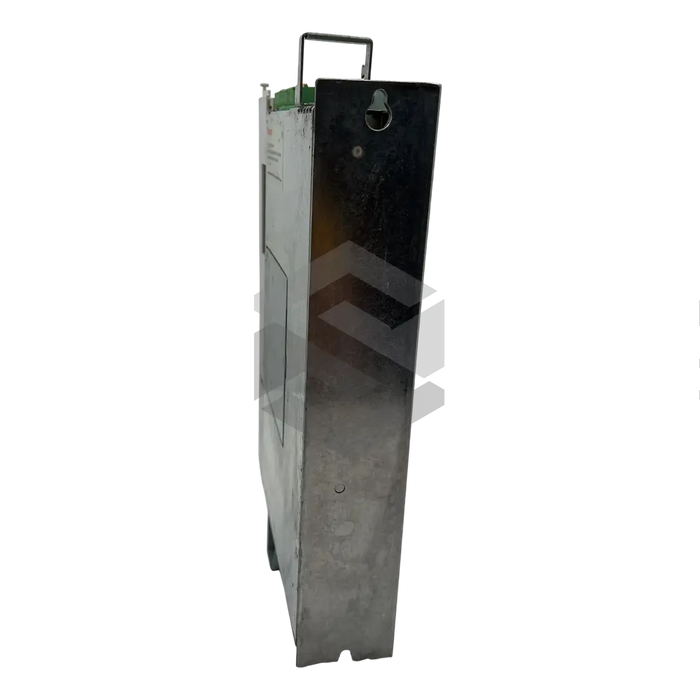

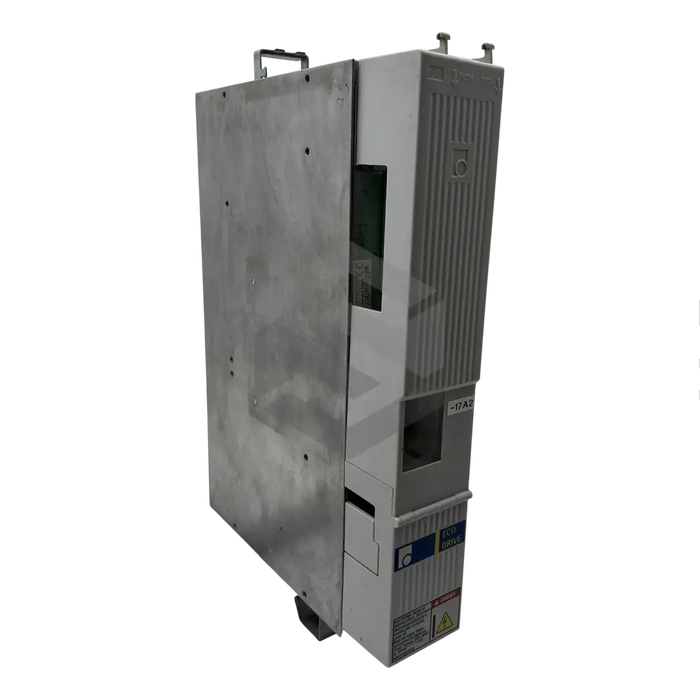

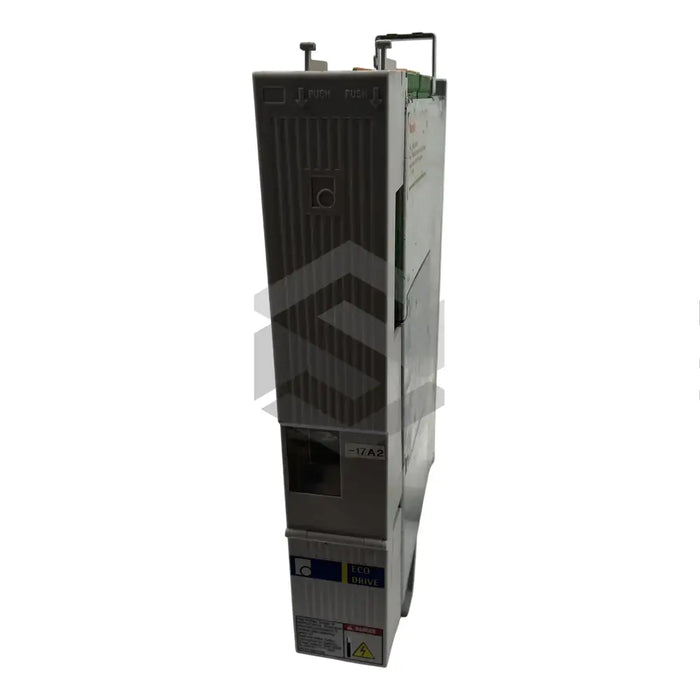

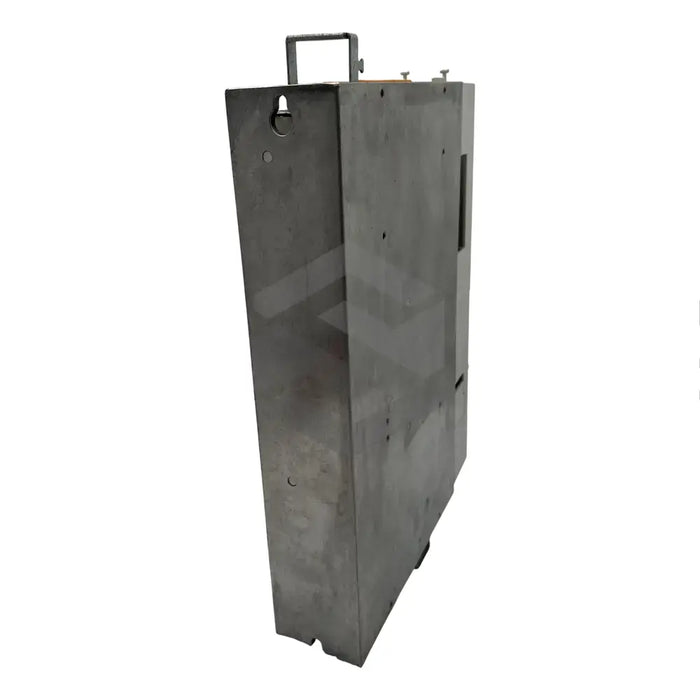

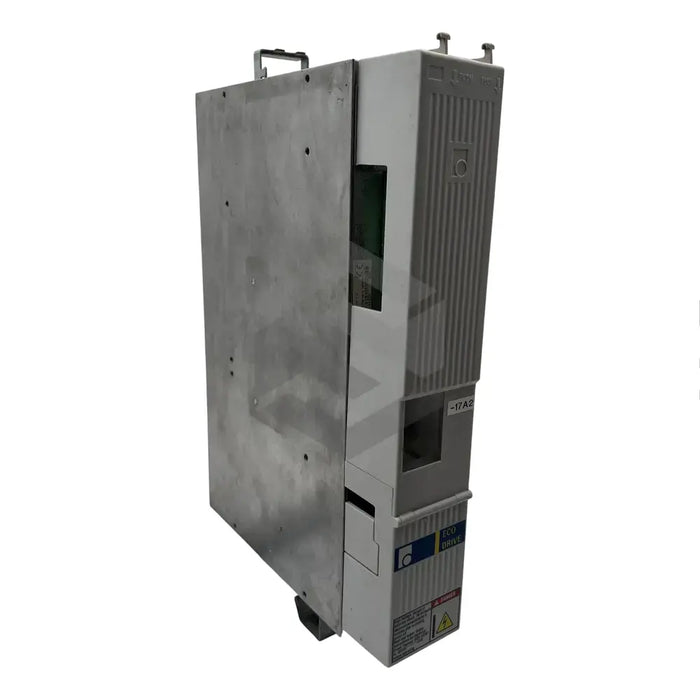

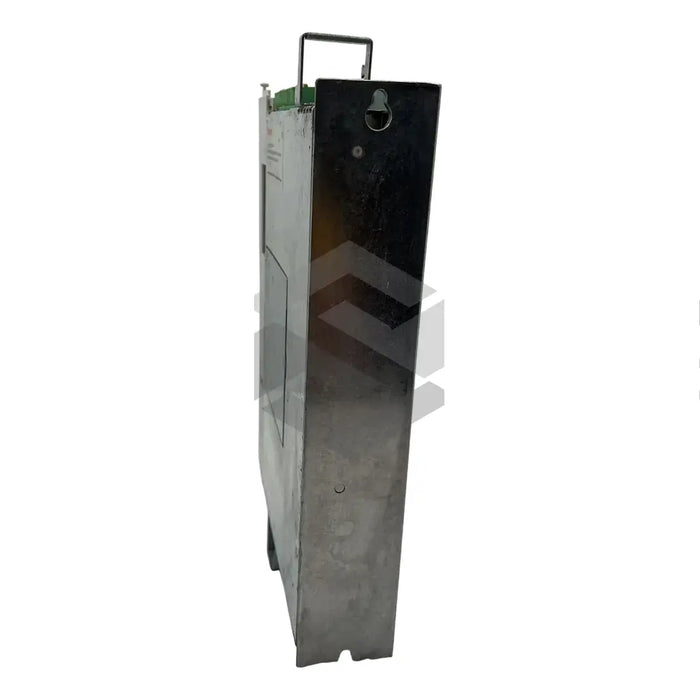

DKCXX.3-040-7-FW

Original price $7,407.00 - Original price $7,407.00
Original price
$7,407.00
$7,407.00 - $7,407.00
Current price $7,407.00
In Stock, Ships Today
Request a quote
The DKCXX.3-040-7-FW, an EcoDrive series drive controller, is a Bosch Rexroth Indramat product that serves as a servo drive with integrated position control. It communicates with higher-level controls over a Profibus network and can store up to 64 positioning blocks, selectable by a PLC via the PROFIBUS-DP interface. The device features advanced navigation capabilities and can process rotational and translatory position, speed and acceleration data independently. Rated for 40 Amps output current and 700 Volts DC bus voltage, the drive controller comes in dimensions of 65 x 333 x 210 millimeters and requires a custom-ordered firmware for functionality. The device operates in an ambient temperature range of 0 to 45 degrees Celsius and an elevation range of 0 to 1000 meters and has separate specifications for tolerances outside these ranges. It needs a vertical space of 80 millimeters top and bottom and is powered by 3-phase AC input at 380 to 480 Volts.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: EcoDrive
  • Product Type: Drive Controller
  • Communication Interface: Profibus Network
  • Positioning Blocks: Up to 64
  • Rated Output Current: 40 Amps
  • DC Bus Voltage: 700 Volts DC
  • Dimensions: 65 x 333 x 210 millimeters
  • Mounting: Vertical
  • Spacing Requirement: 80 millimeters top and bottom
  • Cooling Air Inlet: Bottom of unit
  • Warm Air Outlet: Top of unit
  • Power Requirement: 3-phase AC input at 380 to 480 Volts AC
  • Acceptable Voltage Tolerance: ±10%
  • Main Frequency: 50 and 60 Hertz
  • Power Dissipation: 180 Watts without bleeder dissipation
  • Ambient Temperature Range: 0 to 45 degrees Celsius
  • Ambient Temperature Derating: 45 to 55 degrees Celsius
  • Site Elevation Range: 0 to 1000 meters
  • Site Elevation Derating: 1000 to 5000 meters
