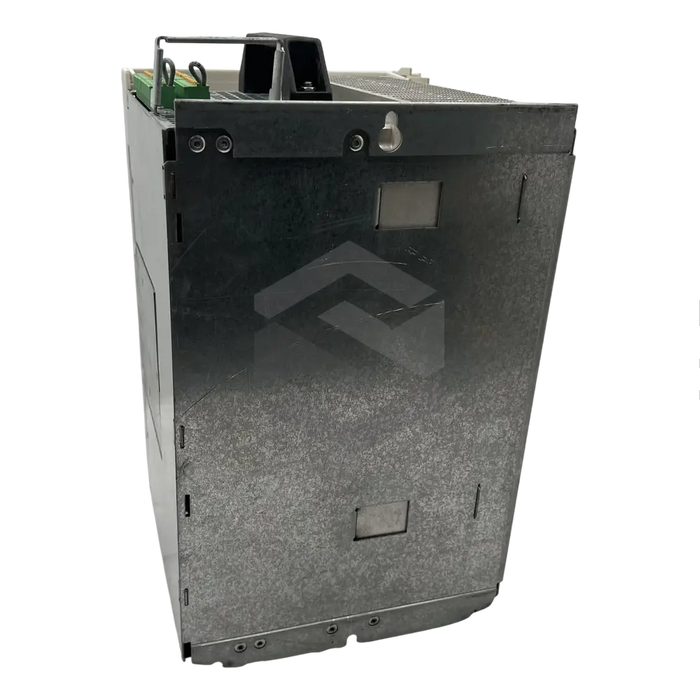

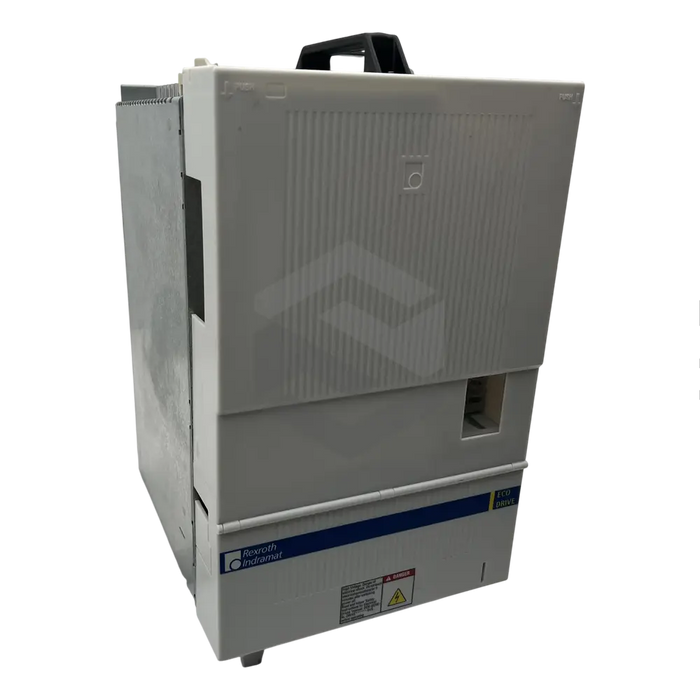

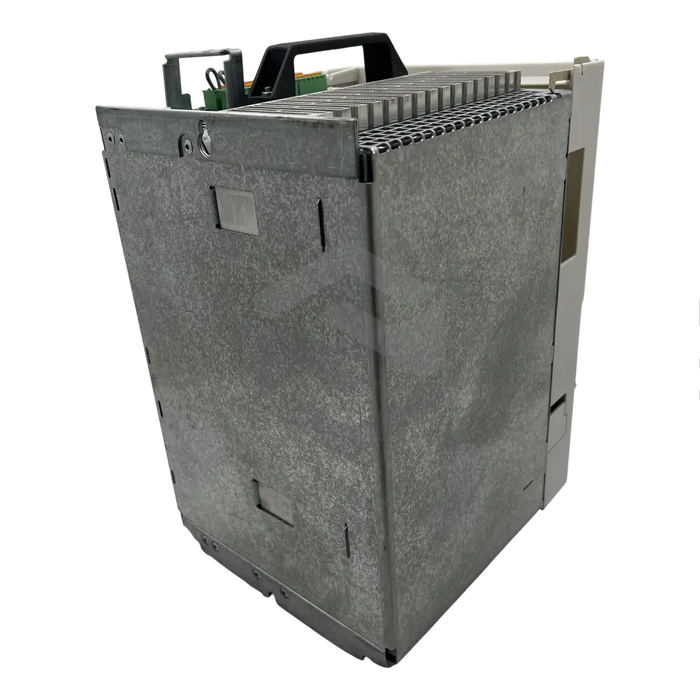

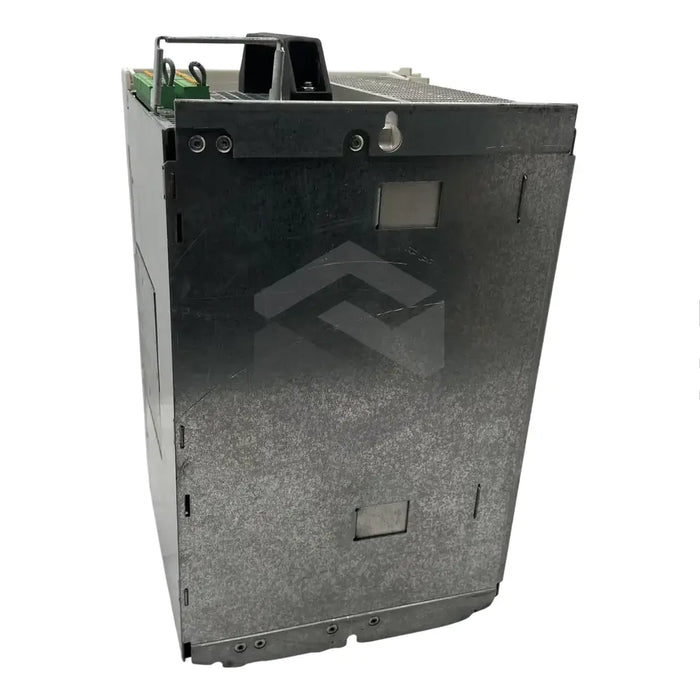

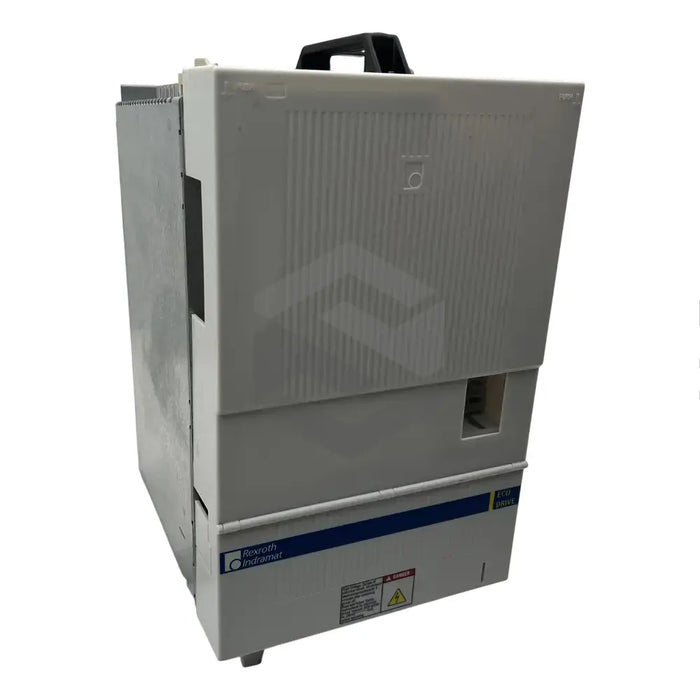

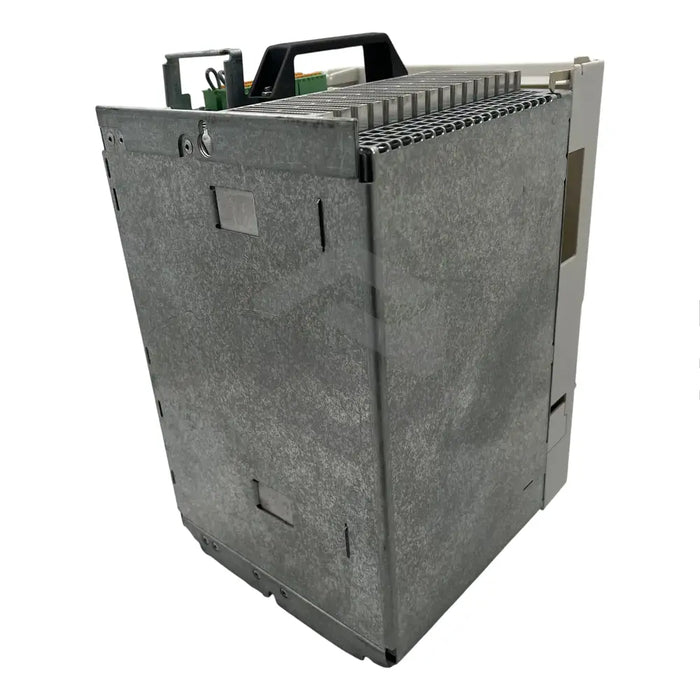

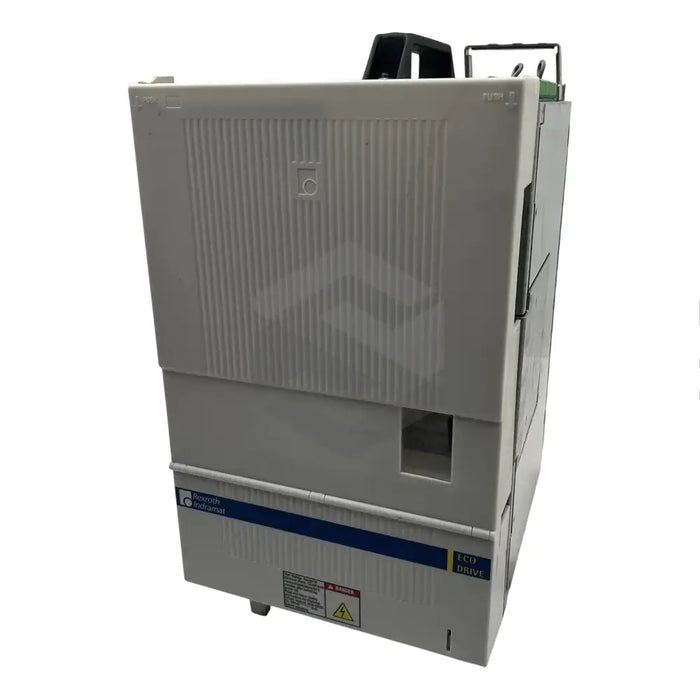

DKCXX.3-200-7-FW

Original price $7,617.92 - Original price $7,617.92
Original price
$7,617.92
$7,617.92 - $7,617.92
Current price $7,617.92
In Stock, Ships Today
Request a quote
The DKCXX.3-200-7-FW is an industrially manufactured Drive controller from the EcoSeries line by Bosch Rexroth Indramat, delivered with a 200 Amps output rating and requiring an input of 380 to 480 Volts AC on a three-phase supply system. Designed for operation within an ambient temperature of 0 to 45 degrees Celsius and between 0 to 1000 meters elevation, it operates with a nominal DC bus voltage of 700 Volts DC and communicates over a Profibus network. It includes an internal blower for power section cooling with an inlet at the bottom and an outlet at the top. The controller, weighing approximately 4.4 kg, with protection category IP20, measures 360 x 65 x 210 millimeters and is designed for vertical mounting. The unit should only allow qualified personnel to be in operation or its vicinity. Only Bosch-approved accessories should be used for this unit.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: DKCXX.3-200-7-FW
  • Product Type: Drive Controller
  • Product Line: EcoSeries
  • Rated Output: 200 Amps
  • Input Rating: 380 to 480 Volts AC
  • Supply System: Three-phase
  • Ambient Temperature for Rated Output: 0 to 45 degrees Celsius
  • Site Elevation for Rated Output: 0 to 1000 meters
  • Nominal DC Bus Voltage: 700 Volts DC
  • Communication Network: Profibus
  • Cooling System: Internal Blower
  • Cool Air Inlet: Bottom
  • Hot Air Outlet: Top
  • Minimum Spacing Required: 80 millimeters
  • Protection Category: IP20
  • Weight: 4.4 kilograms
  • Dimensions: 360 x 65 x 210 millimeters
  • Mounting Orientation: Vertical
  • Operation: Qualified Personnel Required
  • Intended Use: Commercial Machines
  • Regulations Compliance: EC Directive 89/392/EEC (Machine Guideline)
  • Accessories: Use Only Bosch Approved.
