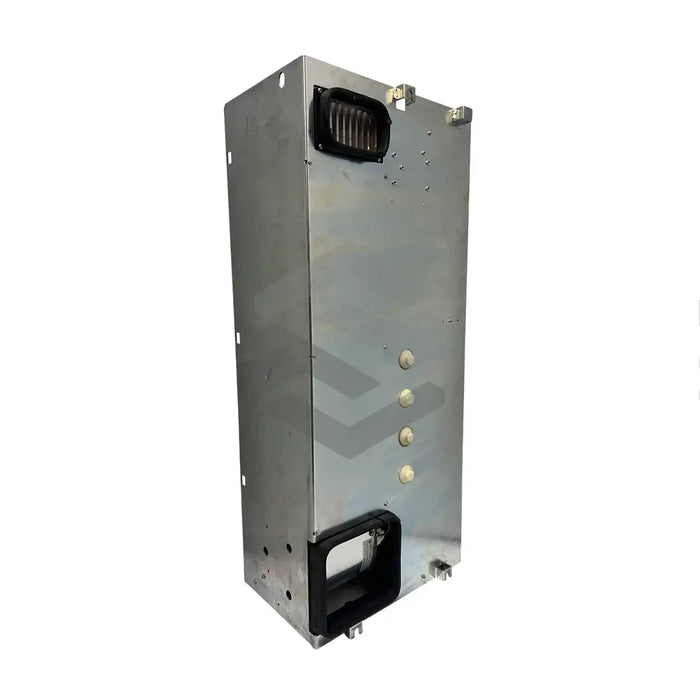

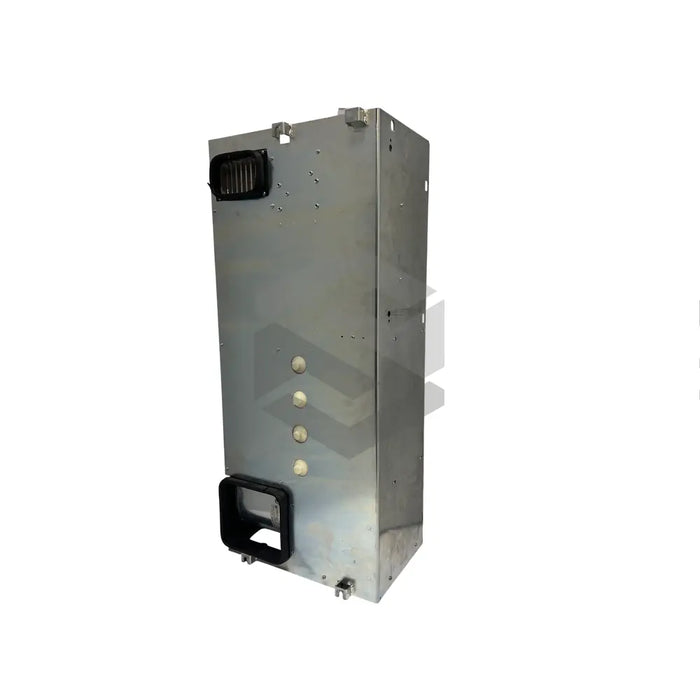

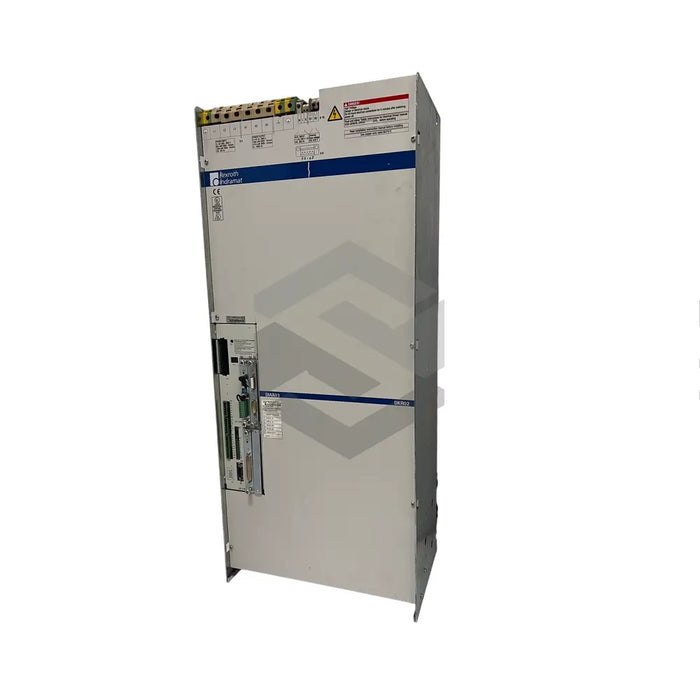

S image of DKR02.1-W200B-BE09-01-FW

DKR02.1-W200B-BE09-01-FW

by Bosch Rexroth Indramat
$4,882.71 - $4,882.71
$4,882.71
$4,882.71 - $4,882.71
$4,882.71

In Stock, Ships 1 - 3 Days

The DKR02.1-W200B-BE09-01-FW model, manufactured by Bosch Rexroth Indramat, is a highly durable and energy-efficient device used in multiple industrial sectors for intelligent control of diverse motors such as AC main spindle, 1MB frameless, and linear motors. As a part of the DIAX 04 drive system, the robust controller boasts of high dynamics and requires no maintenance. It operates at a supply voltage of 3 × AC 400 – 480V and a frequency of 50/60 Hz, demanding a rated power of 200 A. The model has five slots for module installation, including a SERCOS interface for efficient real-time communication and an auxiliary plug-in module. This controller can deliver up to 55 kW power and has various cooling features. It also has the X6 interface for motor temperature monitoring and the RS 232 interface for external device connection. The permissible ambient temperature is +5 to +45 degrees Celsius, and the model has an IP 20 protection rating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DKR02.1-W200B-BE09-01-FW

Use

Control of AC main spindle motors, 1MB frameless motors, linear motors

Part Of

DIAX 04 drive system

Supply Voltage

3 × AC 400 – 480V

Operating Frequency

50/60 Hz

Rated Power Requirement

200 A

Additional Equipment

Bleeder Resistor, 5 slots for plug-in modules

Interface Installed

DSS02.1M SERCOS

Additional Plug-in Modules

DEF01.1M

Maximum Power

55 kW

Maximum Current

141 A

Continuous Power Regeneration

55 kW (for maximum of 10 seconds)

Cooling System

Cooling with the air from inside/outside the control cabinet and duct cooling

Heat Dissipation

1800 W (1200 W in the air channel)

Interfaces

X6, RS 232

Permissible Ambient Temperature

+5 to +45 degree Celsius

Protection Rating

IP 20
