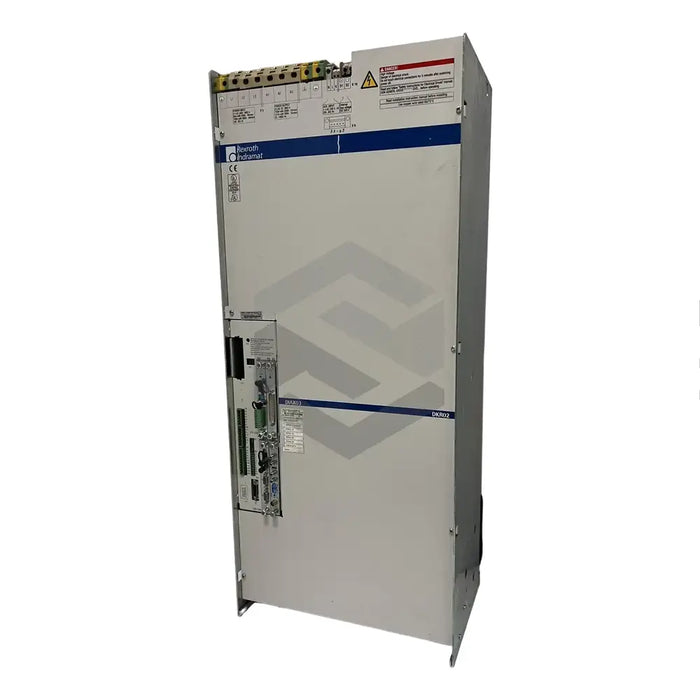

product Main (Front Left) image of DKR02.1-W200B-BE43-02-FW

DKR02.1-W200B-BE43-02-FW

by Bosch Rexroth Indramat
$10,453.30 - $10,453.30
$10,453.30
$10,453.30 - $10,453.30
$10,453.30
In Stock, Ships Today
Bosch Rexroth Indramat's DKR02.1-W200B-BE43-02-FW is a drive controller with an IP 20 protection category, which must be operated under specific ambient conditions to prevent damage. Its shock resistance stands at 8.4g for 5ms, owing to the inbuilt contactor. Equipped with an inbuilt heatsink and air vents, the device dissipates heat and operates at a maximum pressure of 160Pa and a minimum airflow of 300m3/h. Comes included with flanges, gaskets, and screws for mounting. The controller can operate temperature ranging between 5°C to 45°C, provided a clearance distance of at least 160mm is maintained for air circulation. Connections to the motor should be made using power and feedback cables not exceeding 75m in length. To avoid potential malfunction, the controller should be connected to a grounded system, and cables should be properly shielded and separated from high-frequency equipment.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DKR02.1-W200B-BE43-02-FW
  • Protection Category: IP 20
  • Shock Resistance: 8.4g for 5ms
  • Maximum Pressure: 160Pa
  • Minimum Airflow: 300m3/h
  • Temperature Operation Range: 5°C to 45°C
  • Clearance Distance: 160mm at top and bottom
  • Power Cable Length: maximum of 75m
  • Feedback Cable Length: maximum of 75m
  • Mounting Orientation: Vertical
  • Included Components: Flanges, gaskets, screws
  • Power Dissipation Method: Inbuilt heatsink and air vents.
