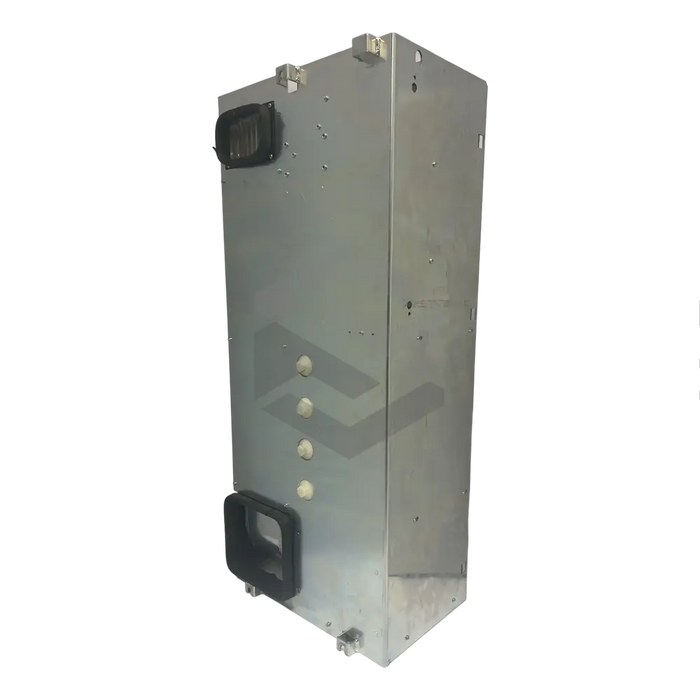

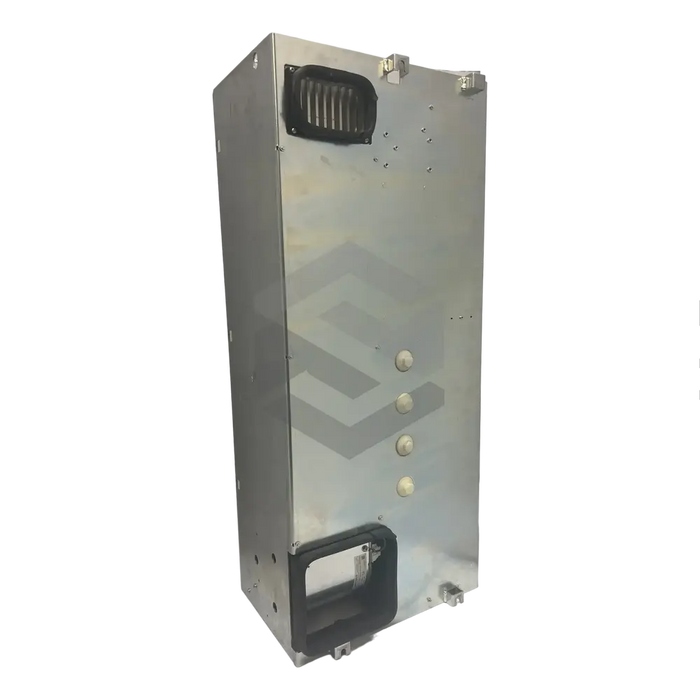

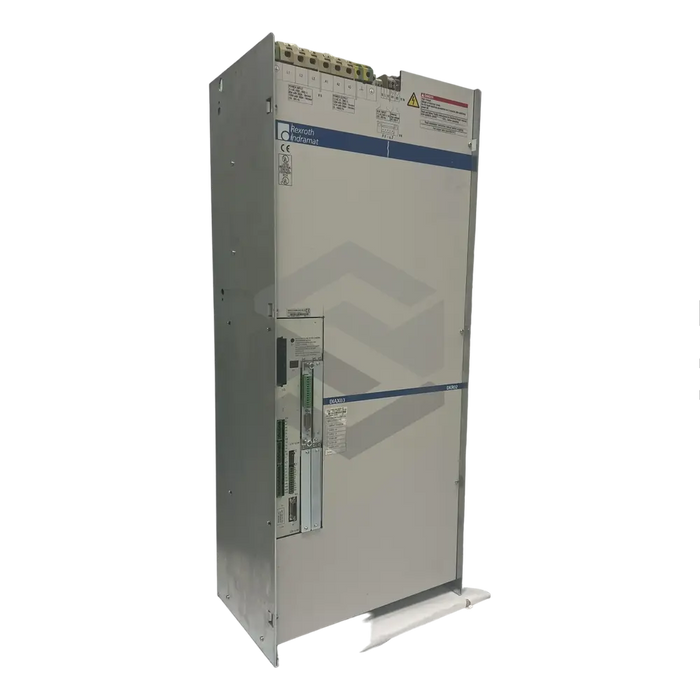

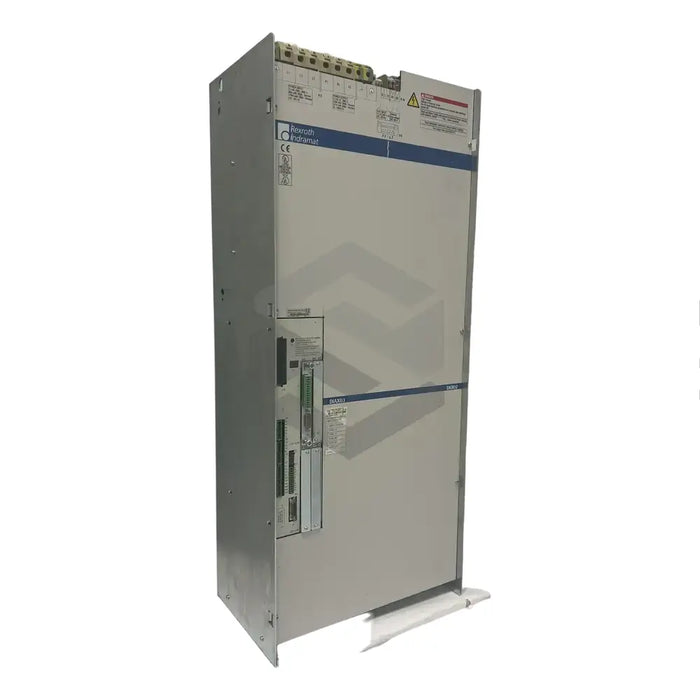

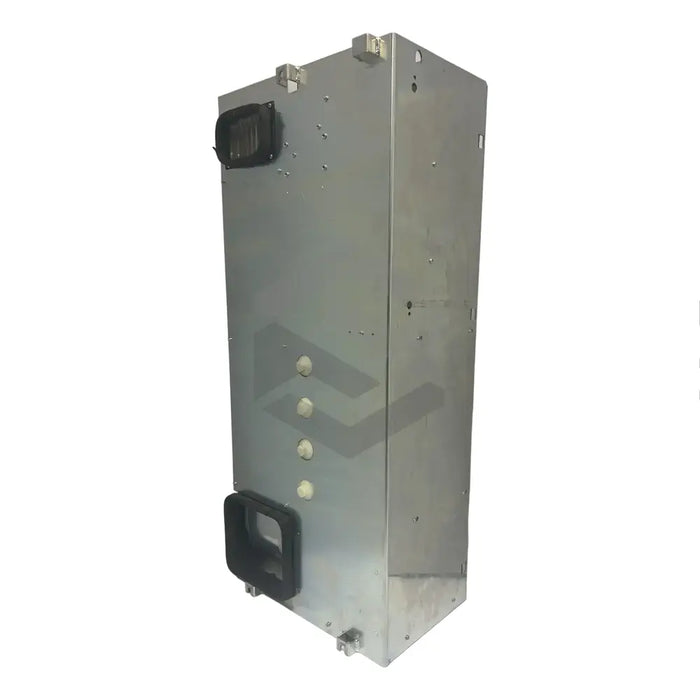

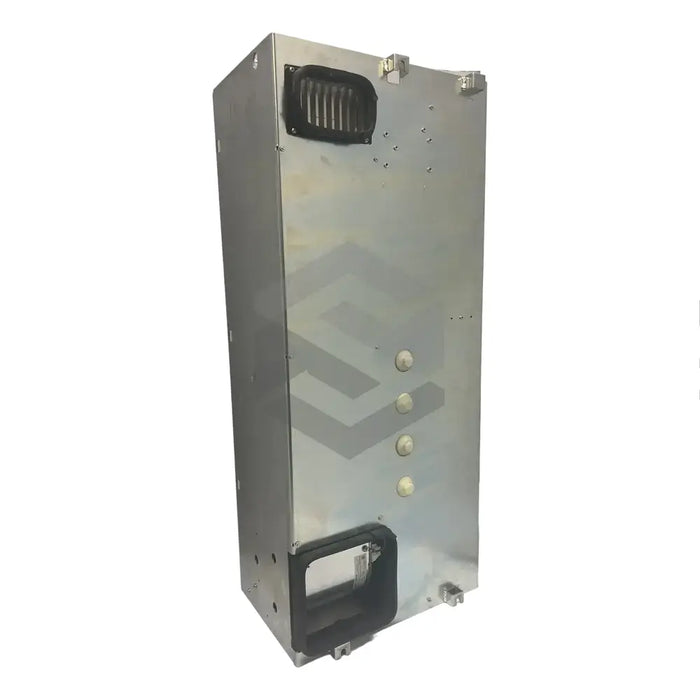

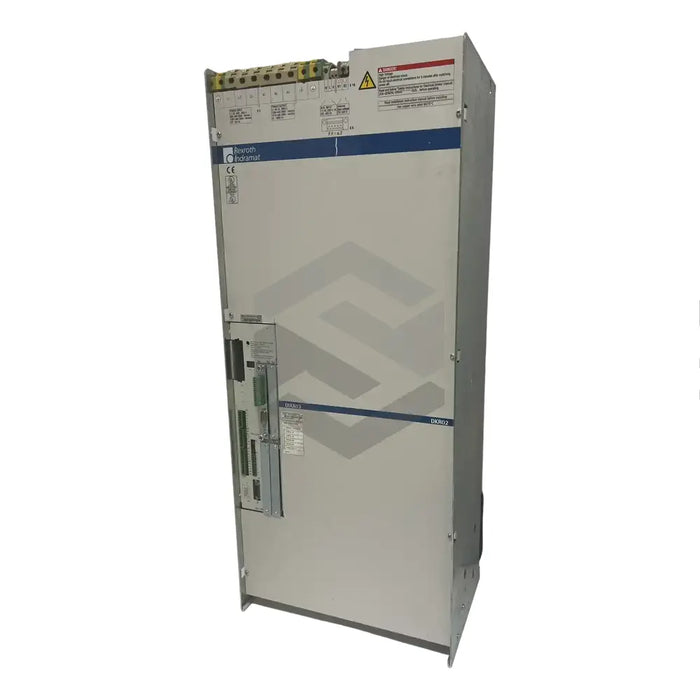

DKR02.1-W200N-BA01-01-FW

Request a quote
The Bosch Rexroth Indramat DKR02.1-W200N-BA01-01-FW is a modular drive controller with an output capacity of 200 Amps. It comprises a base unit with plug-in modules slots, including a firmware module in slot U5, an analog command communication card in slot U1, and additional slots for optional features. The DKR02.1-W200N-BA01-01-FW is equipped with an inbuilt heatsink and blower and must be installed vertically for optimal performance. It operates on 400 to 480 Volts AC input, dissipates approximately 1600 Watts heat during operation, and weighs around 104 kilograms. The controller functions within an ambient temperature range of 13-113 degrees Fahrenheit, but can operate at up to 131 degrees Fahrenheit at an 80% derating of nominal data. It is recommended to install the drive controller up to an elevation of 1000 meters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Modular Drive Controller
  • Model: DKR02.1-W200N-BA01-01-FW
  • Output Rating: 200 Amps
  • Firmware Slot: U5
  • Command Communication Card Slot: U1
  • Optional Plug-In Cards Slot: U2 to U4
  • HeatSink and Blower: Integrated
  • Bleeder: Not Available
  • Function Numeric Code: 01
  • Version Function Numeric Code: 01
  • Feedback: Integrated Servo and Resolver
  • Cooing Method: Air outside the controller cabinet
  • Orientation: Vertical
  • Drive Input Rating: 400 to 480 Volts AC
  • Heat Dissipation: 1600 Watts
  • Weight: 104 kilograms
  • Dimensions: 1000 x 440 x 290 millimeters
  • Ambient Temperature Range: 13 to 113 degrees Fahrenheit
  • Maximum Ambient Temperature: 131 degrees Fahrenheit
  • Setup Height: Up to 1000 meters.
