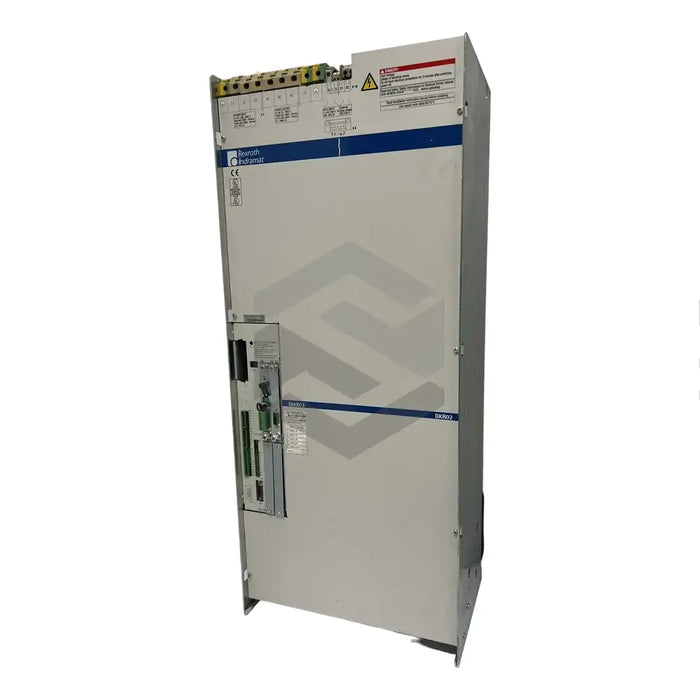

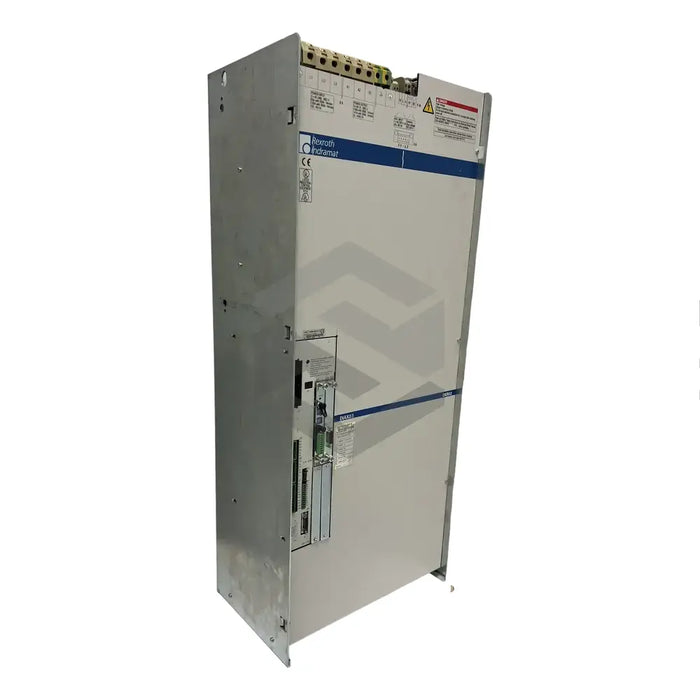

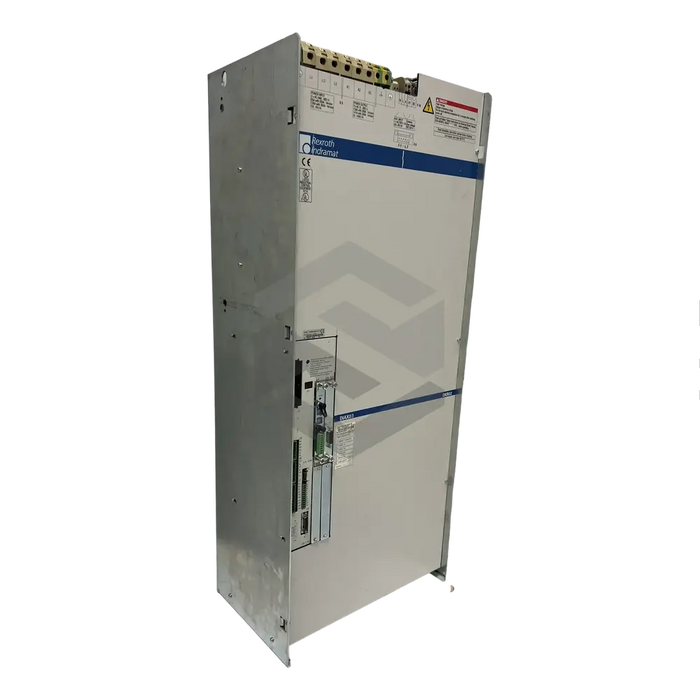

product Main (Front Left) image of DKR02.1-W200N-BE32-01-FW

DKR02.1-W200N-BE32-01-FW

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
In Stock, Ships Today
The DKR02.1-W200N-BE32-01-FW by Bosch Rexroth is a drive controller renowned for delivering consistent operational reliability across multiple industries including machine tools, handling systems, printing machines, and robotics. Its main purpose is managing and monitoring the performance of Indramat AC motors. The model includes an RS-232 serial interface for PC or VT-terminals connections, an H1 status display for diagnosing errors, and is powered by a built-in module connected to a 3-phase power source. The device requires a supply voltage of AC 3 × 400 – 480 V and consumes a rated current of 200 A. It features a 4/8 kHz drive with a power voltage range of 0 – 380 V, system frequency of 800/1600 Hz, and a continuous power output of 47/37 kW. Its housing falls under the IP 20 protection category and endures a maximum operating temperature of +55 ºC with derating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth
  • Product Type: Automation Product
  • Model Number: DKR02.1-W200N-BE32-01-FW
  • Operational Use: Machine tools, handling systems, printing machines, robotics
  • Interface: RS-232 serial
  • Diagnostic Display: H1 status
  • Power Supply: Built-in
  • Rated Current: 200 A
  • Supply Voltage: AC 3 × 400 – 480 V
  • Drive Frequency: 4/8 kHz
  • Voltage of Drive: 0 – 380 V
  • System Frequency: 800/1600 Hz
  • Current Requirement for Drive: 120/95 A
  • Continuous Power Delivery: 47/37 kW
  • Basic Unit Slots: 5
  • Slot U1: Equipped with SERCOS interface
  • Feedback: Digital servo and resolver feedback
  • Software: Installed into firmware module (ESM 02.3)
  • Installation Slot for Software: U5
  • Housing Protection: IP 20
  • Maximum Operational Altitude: 1000 m/sea level
  • Max Bearable Temperature: +55 degree Celsius (with derating)
