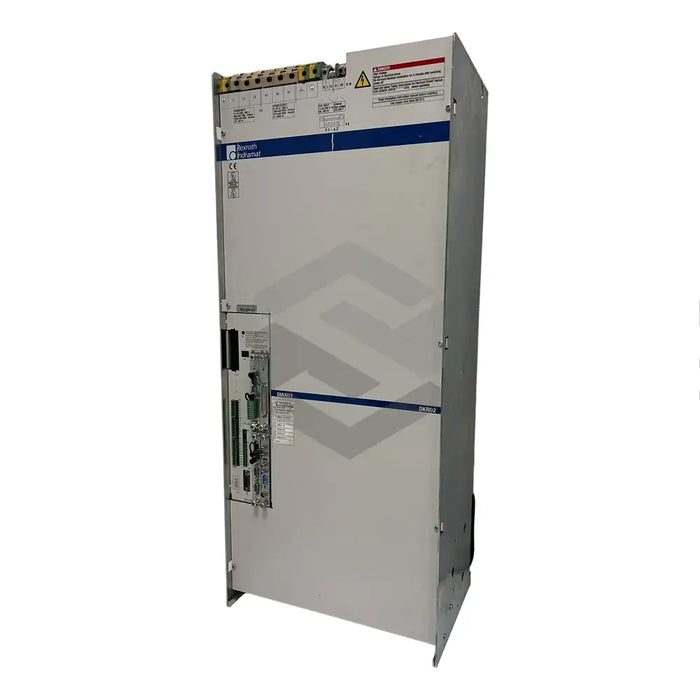

C image of DKR02.1-W200Z-BE43-01-FW | Main (Front Left)

DKR02.1-W200Z-BE43-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DKR02.1-W200Z-BE43-01-FW is a sophisticated drive controller with a modular design. It consists of five slots, two of which are specifically for a software module and a command communication module. The command communication interface is located in Slot U1, while Slot U5 houses the firmware module which preserves the firmware and the operational parameters of the drive. Optimal operation data for the drive are applicable for environments ranging from 0 to 1000 meters above sea level, and temperatures between 5 to 45 degrees Celsius. However, this device can operate at temperatures up to 55 degrees Celsius and altitudes up to 5000 meters, but with reduced drive power due to load capacity. The device also features a built-in blower, digital servo, and resolver feedback. The input rating is three phase 400 to 480 Volts AC with an output current rating of 200 Amps. For continuous output, the ratings are 120 Amps at 4 kHz and 95 Amps at 8 kHz. The IP 20 rated drive enclosure is designed for installation in an IP 54 rated switch cabinet. The drive produces 1600 Watt heat and thus, the switch cabinet's dust filters should be maintained regularly.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product type

Drive Controller

Model

DKR02.1-W200Z-BE43-01-FW

Modular slots

5

Dedicated slots

Software module, Command communication module

Additional slots

3 for plug-in modules

Command communication interface

SERCOS

Operating parameters

Stored in firmware module

Installation elevation

0 to 1000 meters

Ambient temperatures

5 to 45 degrees Celsius

Maximum operational temperature

55 degrees Celsius

Maximum installation elevation

5000 meters

Cooling system

Integrated blower

Feedback type

Digital servo and resolver

Input rating

Three phase 400 to 480 Volts AC

Output current rating

200 Amps

Continuous output rating

120 Amps at 4 kHz, 95 Amps at 8 kHz

Enclosure rating

IP 20 (for installation inside IP 54 rated switch cabinet)

Heat dissipation

1600 Watt during operation.
