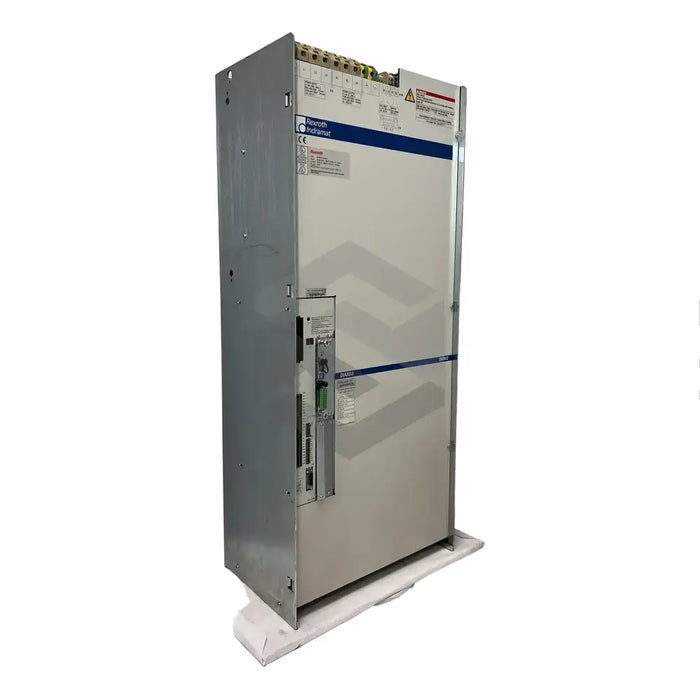

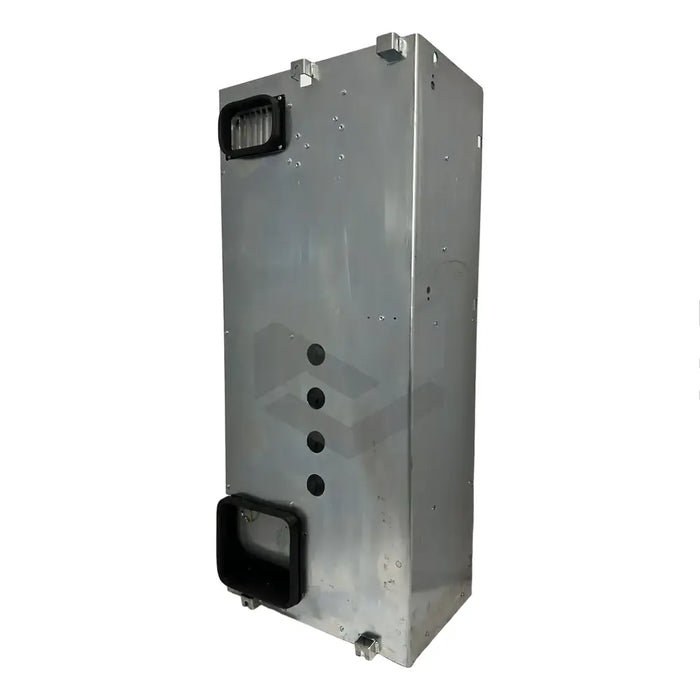

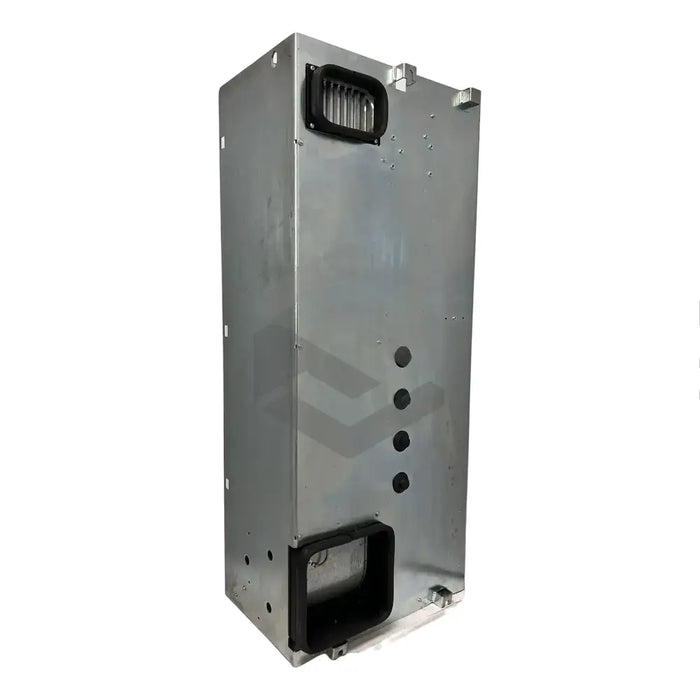

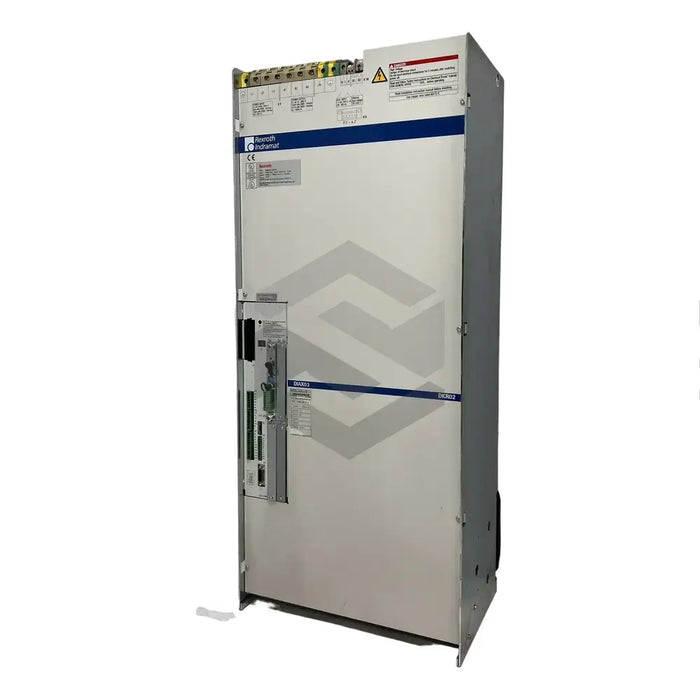

DKR02.1-W300B-BE12-01-FW

Original price $5,569.62 - Original price $5,569.62
Original price
$5,569.62
$5,569.62 - $5,569.62
Current price $5,569.62
Available, Shipping Varies
The Bosch Rexroth Indramat DKR02.1-W300B-BE12-01-FW drive controller is mainly used in conjunction with the 2AD, ADF, 1MB, LSF, or LAF series motors. It can operate under temperatures up to 55°C and altitudes up to 1000m, while maintaining up to 80% data deration. The controller conforms to an IP 20 protection category under IEC 529 / EN 60529. It supports a functional numeric code of 12 and offers continuous current ratings of 141A and 110A at frequencies of 4Hz and 8Hz respectively. Equipped with two rating plates for identification and spare part procurement, it features a power voltage of 0 to 380 volts and continuous regenerated power of around 43kW. Connectors include the X8 for signal voltages and X9 for control inputs, plus connections for motor power and mains at the top.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DKR02.1-W300B-BE12-01-FW
  • Compatible Motors: 2AD, ADF, 1MB, LSF, LAF
  • Max Operating Temperature: 55°C
  • Maximum Elevation: 1000m above sea level
  • Protection Category: IP 20
  • Function Numeric Code: 12
  • Current Rating at 4Hz: 141A
  • Current Rating at 8Hz: 110A
  • Storage and Transport Temperature: -30°C to 80°C
  • Power Voltage: 0 to 380 volts
  • Continuous Regenerated Power: 43kW
  • Control method: Fiber optic cables
  • Malfunction Indicators: Interference voltage coupling
  • Connector For Measuring and Test Purposes: X8
  • ON and OFF Control Inputs: X9
  • Motor Power Connection and Mains Connection: Top of controller
