DKR02.1-W300B-BE23-01-FW

Original price $5,930.00 - Original price $5,930.00
Original price
$5,930.00
$5,930.00 - $5,930.00
Current price $5,930.00
Available, Shipping Varies

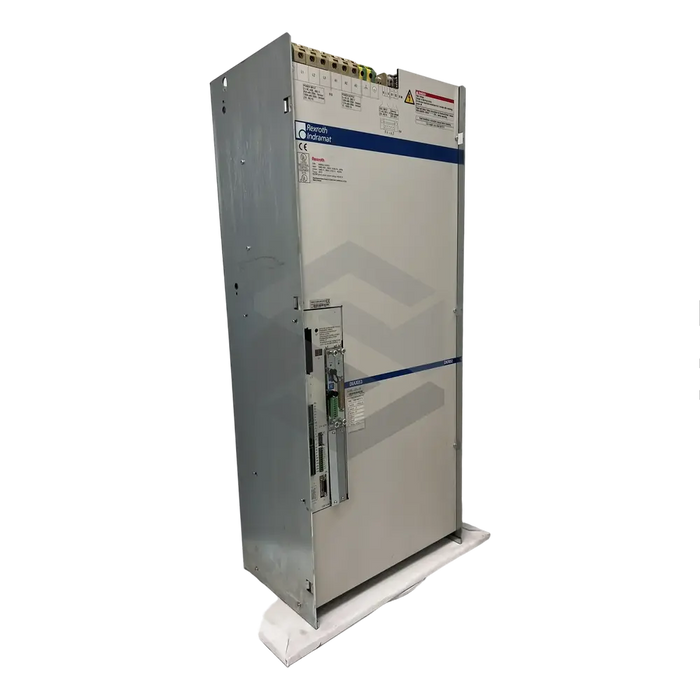

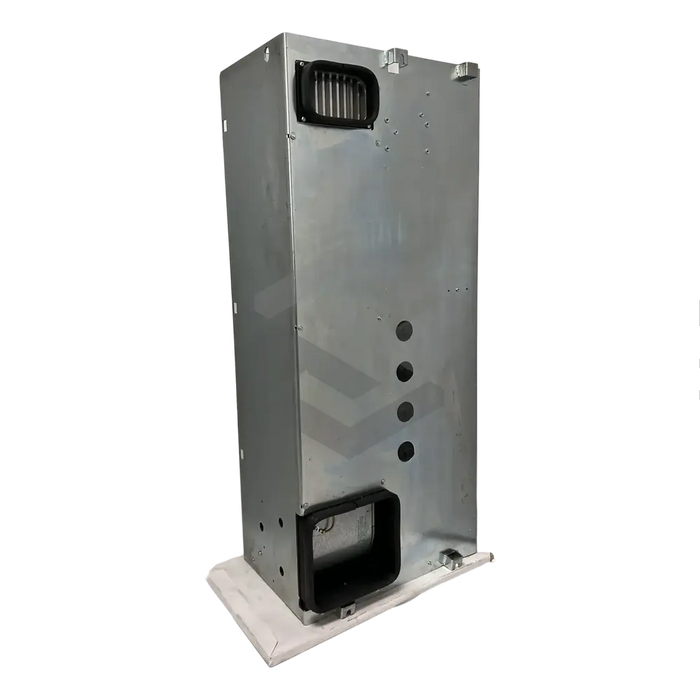

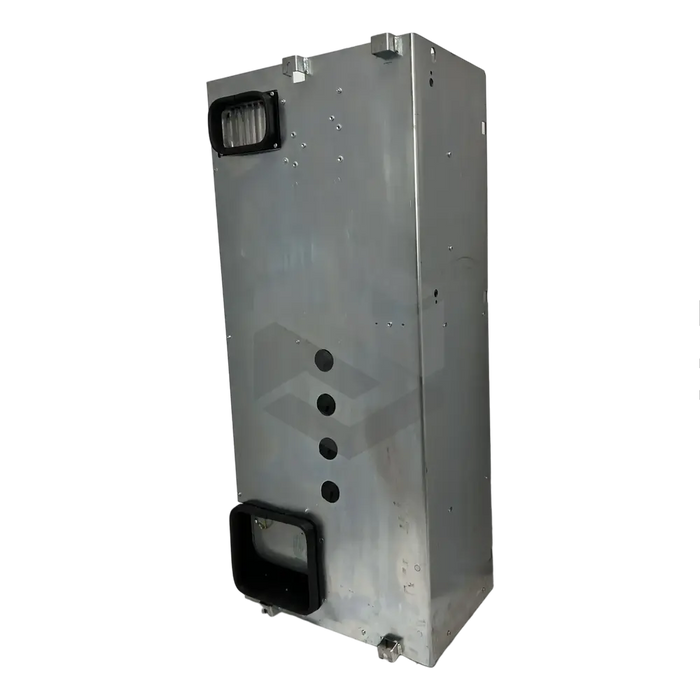

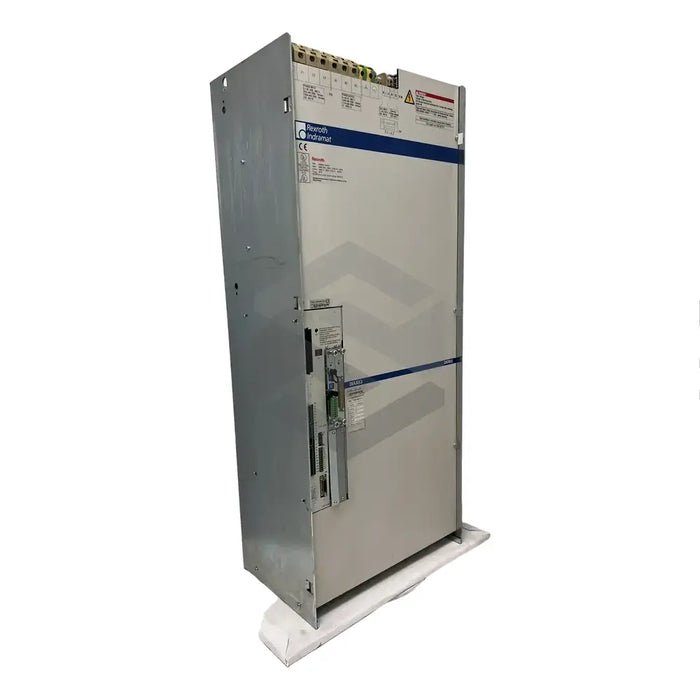

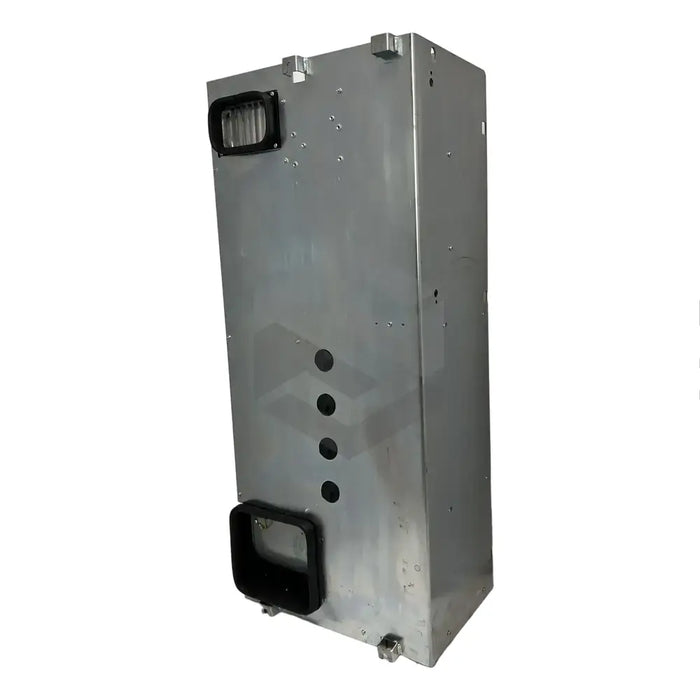

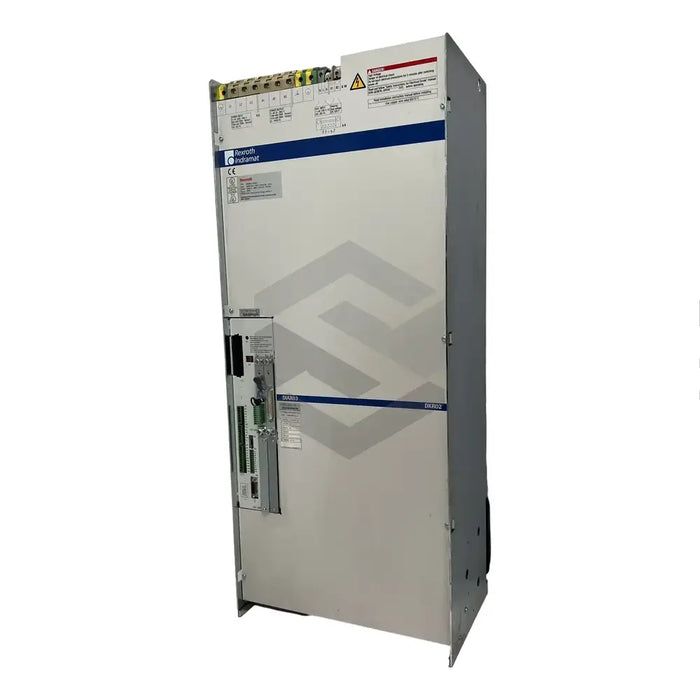

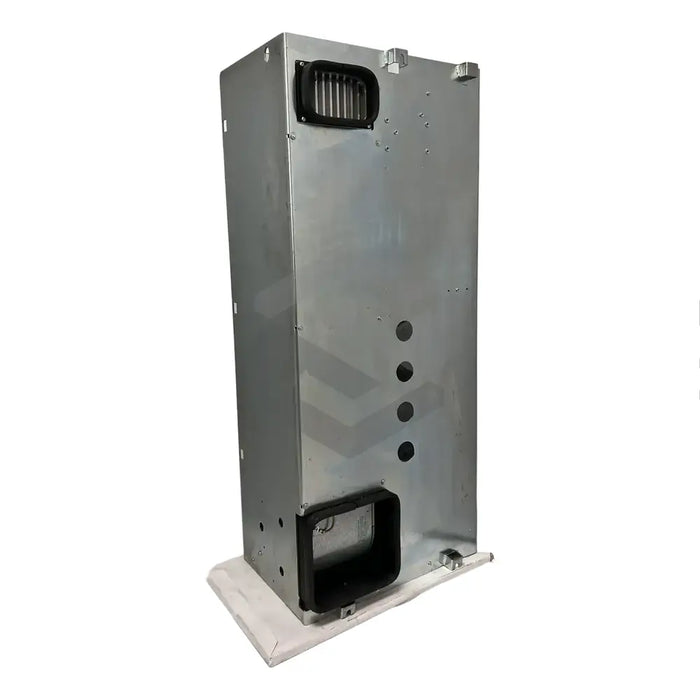

The Bosch Rexroth Indramat DKR02.1-W300B-BE23-01-FW is a DKR02 drive controller designed specifically for the digital management of AC mains motors, linear motors, and frameless motors. Showcasing superior control, constant power, and an extensive speed range, this drive controller is widely used in NC-controlled machines and printing machines. It has a power voltage rating of 3 x AC 400-480, ± 10%, and a control voltage rating of 230 V AC, ± 10%. It operates at a frequency of 50-60 Hz with a rated current of 300 Amps and provides a continuous regenerated power of approximately 43 kW. The unit uses air cooling and features an integrated bleeder and digital servo feedback with a resolver mechanism. Furthermore, it communicates via a SERCOS command interface.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: DKR02 drive controller
  • Application: Control of AC mains motors, frameless motors and linear motors
  • Power Voltage: 3 x AC 400 – 480, ± 10 %
  • Frequency: 50-60 Hz
  • Control Voltage Frequency: 50-60 Hz
  • Control Voltage Rating: 230 V AC, ± 10%
  • Rated Current: 300 Amperes
  • Control Voltage Power Rating: 0.2 kVA
  • Switching Frequency: 4 kHz and 8 kHz
  • Continuous Current: 141 Amperes (4 kHz), 110 Amperes (8 kHz)
  • Peak Current: 212 Amperes
  • Heat Dissipation: 1.8 kW at continuous current rating
  • Peak Power: ca. 93 kW in relation to motor-driven shaft
  • Continuous Regenerated Power: ca. 43 kW
  • Cooling Method: Air cooling with in-built blower
  • Feedback Mechanism: Digital servo with resolver
  • Line: 2
  • Design Type: 1
  • Communication Interface: SERCOS
  • Function Numeric Code Designation: 23
  • Function Numeric Code: 01
