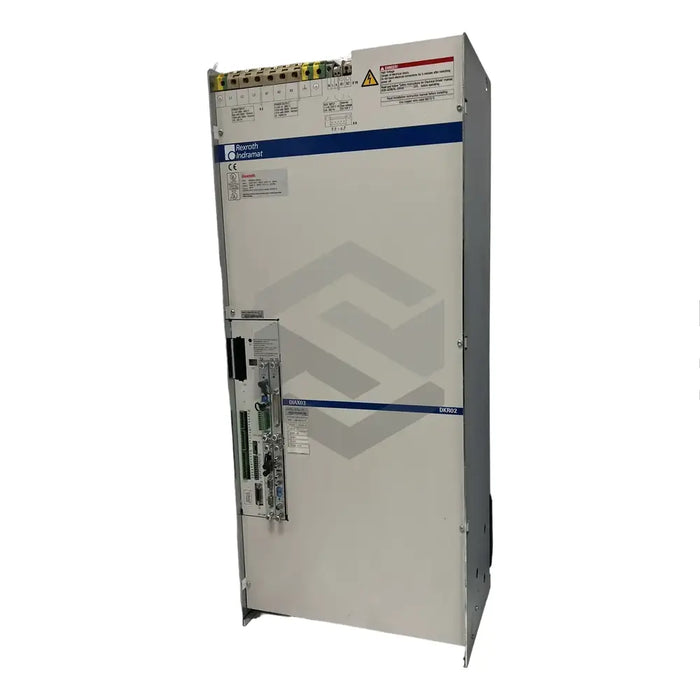

C image of DKR02.1-W300B-BE43-02-FW | Main (Front Left)

DKR02.1-W300B-BE43-02-FW

by Bosch Rexroth Indramat
$11,225.32 - $11,225.32
$11,225.32
$11,225.32 - $11,225.32
$11,225.32

In Stock, Ships 1 - 3 Days

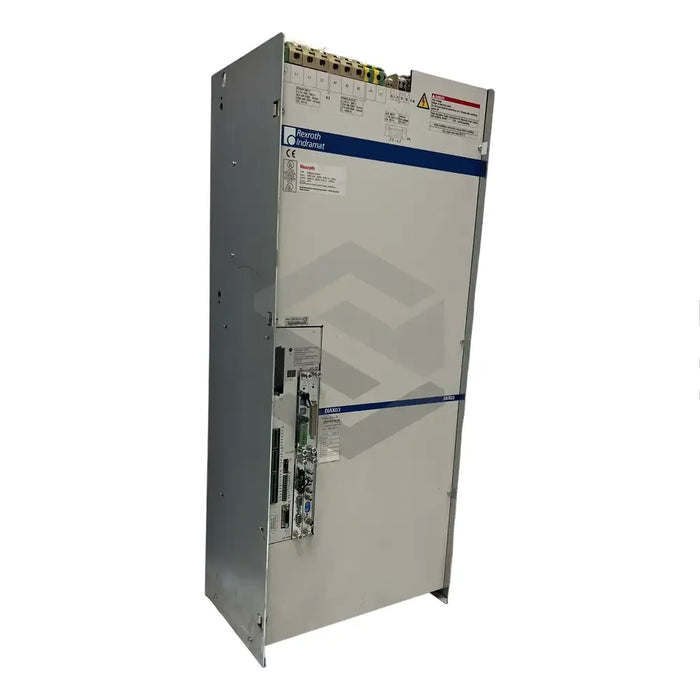

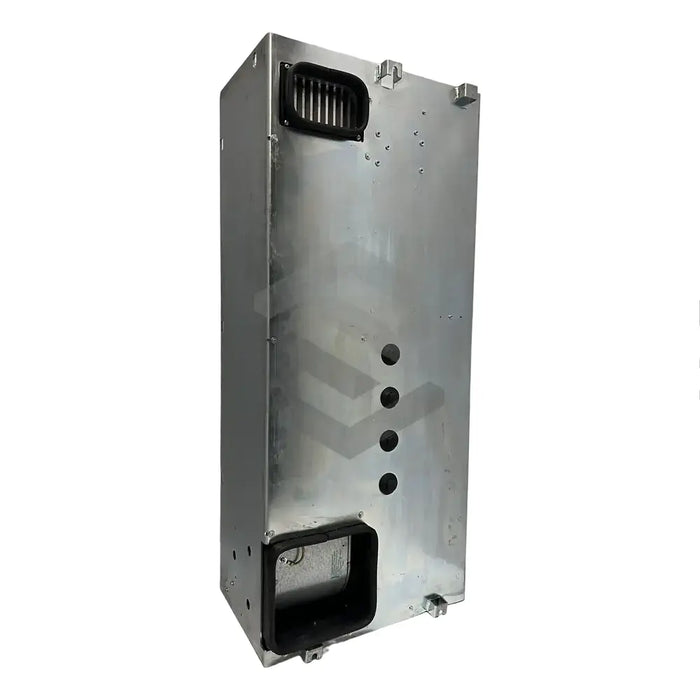

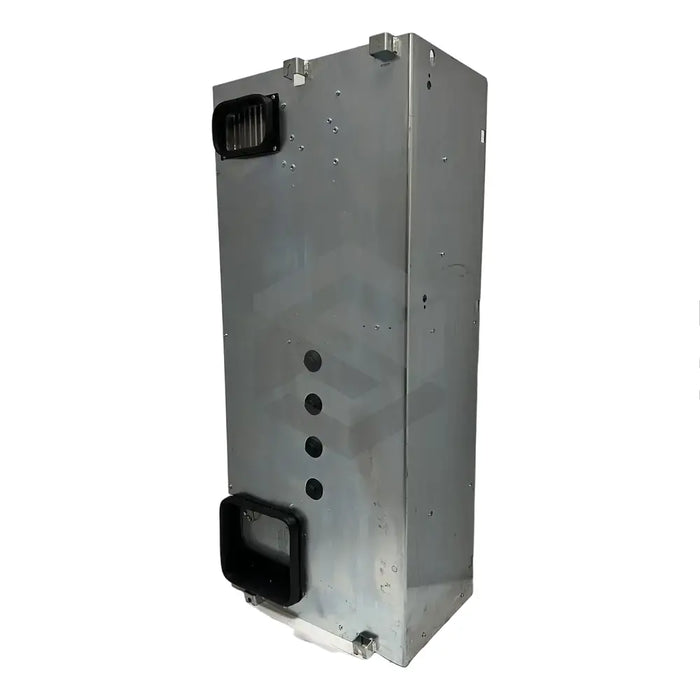

The DKR02.1-W300B-BE43-02-FW by Bosch Rexroth Indramat is a high-performance drive controller, prominent in the field of industrial automation. Key features encompass an auxiliary bleeder resistor, which offsets excess energy during deceleration, and a maximum braking energy of 240 kWs. The controller's continuous regenerated power stands at 43 kW. This device is part of the DIAX 04 digital intelligent drive system, with a rated power requirement of 300 A and operational voltage at AC 3 × 400 – 480 V. The model also features an AC 230V control voltage connection via the X10 port, and includes a blower unit for internal temperature management. Prior to implementation, it should be pre-programmed and housed within a control cabinet, due to its IP 20 protection category. It utilizes digital servo and resolver feedback for speed and position operations, and a status display for error diagnosis. The model's ambient operation temperature ranges from +5 to +45-degree Celsius. It supports configurable plug-in modules and can generate a peak power of 93 kW at peak current of 212 A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DKR02.1-W300B-BE43-02-FW

Brake resistor maximum braking energy

240 kWs

Controller continuous regenerated power

43 kW

Part of system

Digital Intelligent Drive System (DIAX 04)

Rated power requirement

300 A

Operational voltage

AC 3 × 400 – 480 V

System frequency

50/60 Hz

Control voltage

AC 230V

Control voltage connection port

X10

Power requirement for control voltage

200 VA

Cooling method

Blower unit with external air use

Protection category

IP 20

Control operations

Speed and position control

Feedback system

Digital servo and resolver

Status display

H1 status display

Operational ambient temperature range

+5 to +45 degree Celsius

Configuration options

Plug-in modules in U1 – U5 slots

Peak power

93 kW

Peak current

212 A.
