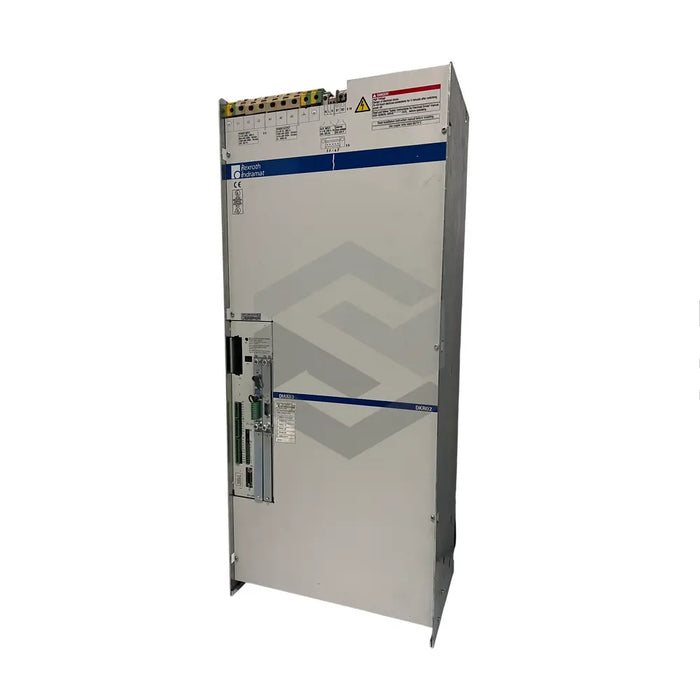

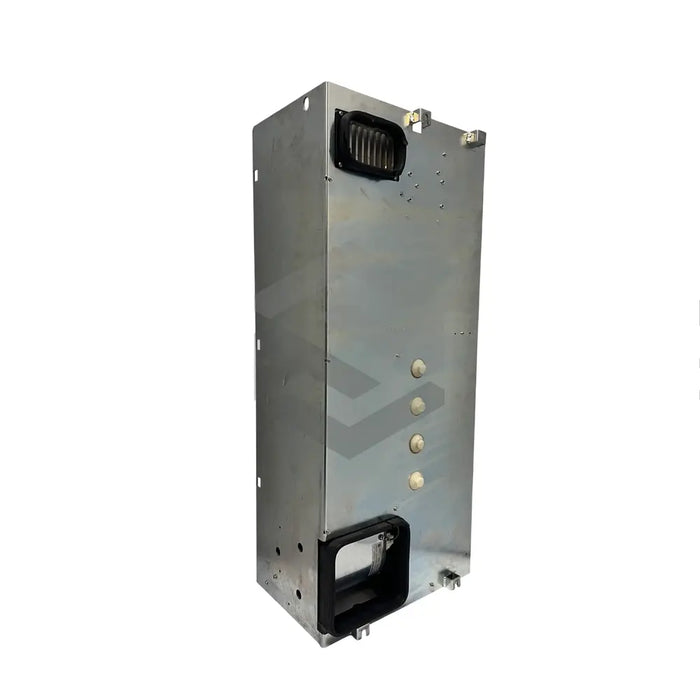

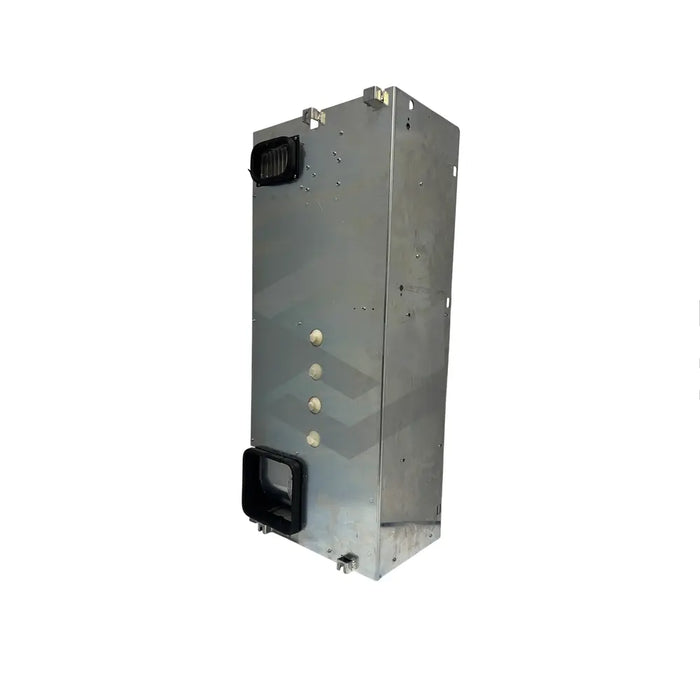

S image of DKR02.1-W300N-BE34-02-FW

DKR02.1-W300N-BE34-02-FW

by Bosch Rexroth Indramat
$19,845.00 - $19,845.00
$19,845.00
$19,845.00 - $19,845.00
$19,845.00

In Stock, Ships 1 - 3 Days

The DKR02.1-W300N-BE34-02-FW by Bosch Rexroth Indramat is a sophisticated Drive Controller, part of the line 4 product group and Type 1 design series. It offers advanced control of compatible motors through digital systems and supports plug-in module pairing via the U1 to U5 slots. With a weight of 104 kg, the unit is cooled internally by a blower. The control voltage is AC 230 V, ± 10%, 50 – 60 Hz, and it features a peak power of 93 kW at frequency levels of 800 Hz and 1600 Hz. The drive provides continuous power of 55 kW at 4 kHz and 43 kW at 8 kHz, with a peak current value of 212 Amps. It achieves heat dissipation of 1800 Watts at the continuous current rating and uses an ESM firmware module handling the OS and drive parameters. Suitable ambient temperature for operation is 5 – 45 oC, while shipping/storage temperature ranges from -30 to 80 degrees C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

Bosch Rexroth Indramat

Controller Type

Type 1 Design

Product Group

Line 4 Product Group

Cooling System

Internal Mounted Blower

Control Voltage

AC 230 V, ± 10%, 50 – 60 Hz

Module Pairing Support

U1 to U5 slots

Weight

104 kg

Total Heat Dissipation

1800 Watts

Continuous Current Rating

141 Amperes at 4 kHz and 110 kHz at 8 kHz

Peak Current Value

212 Amperes

Control Voltage Power

200 VA

Continuous Power

55 kW at 4 kHz and 43 kW at 8 kHz

Nominal Current

300 Amperes

Ambient Temperature Rating

55 degrees C at 80% derated data

Peak Power

93 kW

Maximum Frequency

800 Hz and 1600 Hz

Continuous Regenerated Power

43 kW

Control Voltage Frequency

50-60 Hz

Firmware

ESM Firmware Module

Perm. Surrounding Air Temperature

5 – 45 degrees C at 100% equipment data

Shipping/Storage Temperature

-30 … 80 degrees C.
