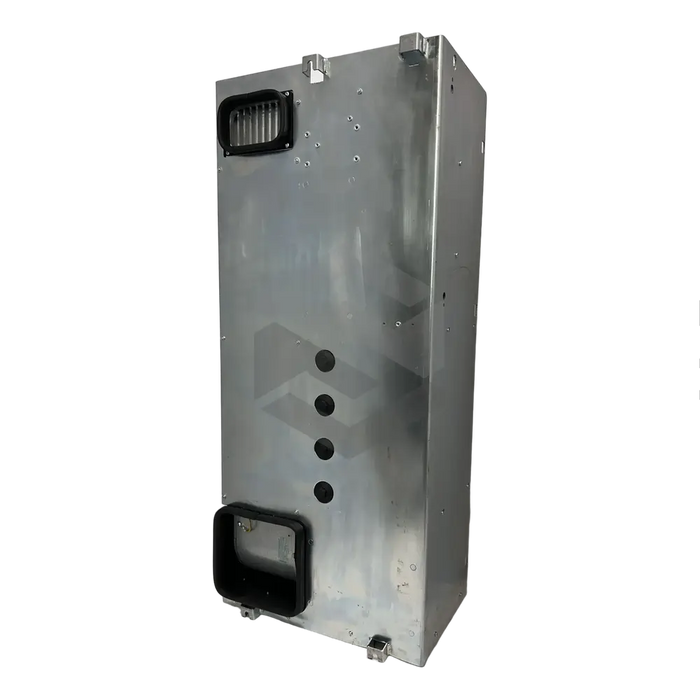

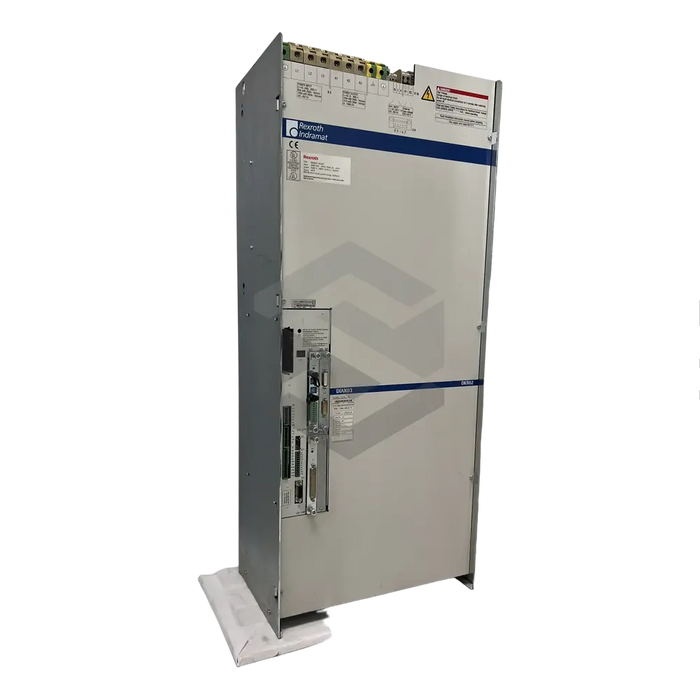

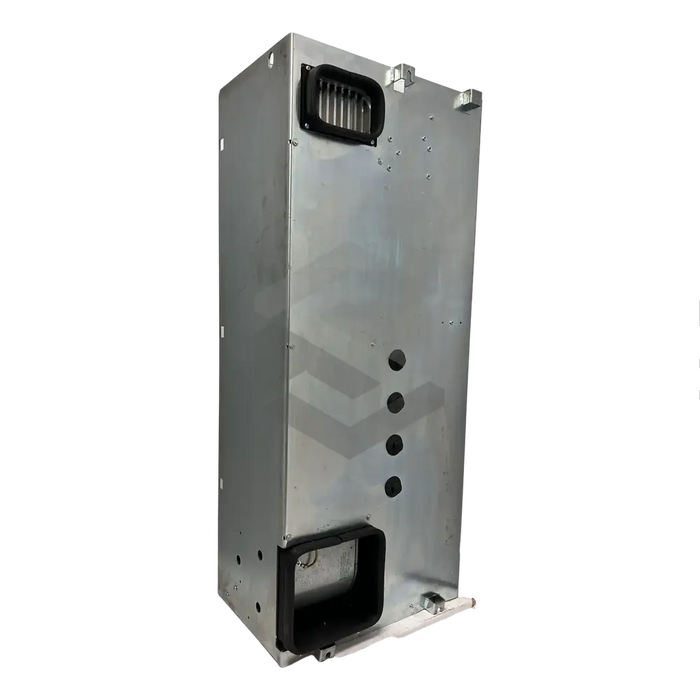

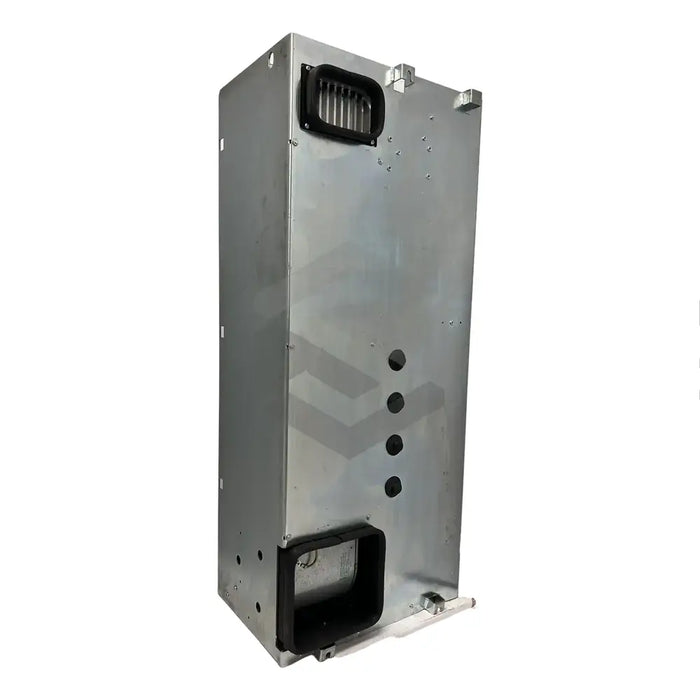

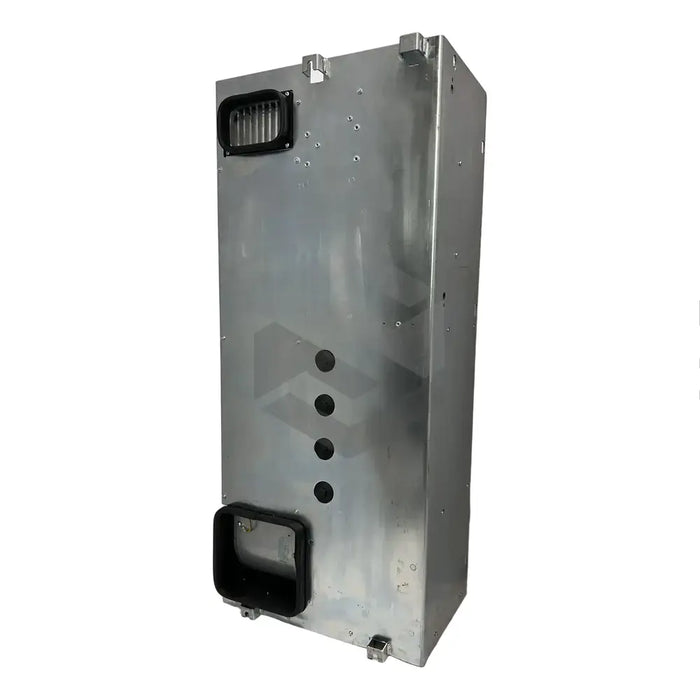

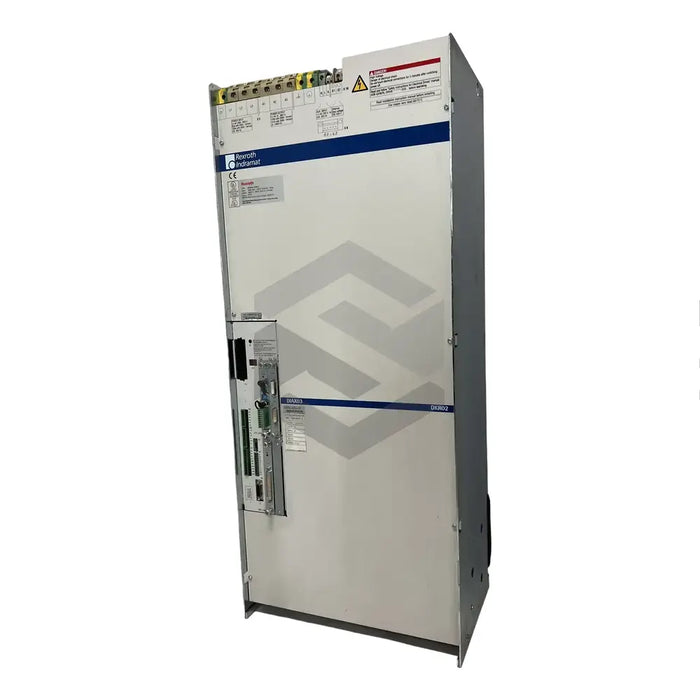

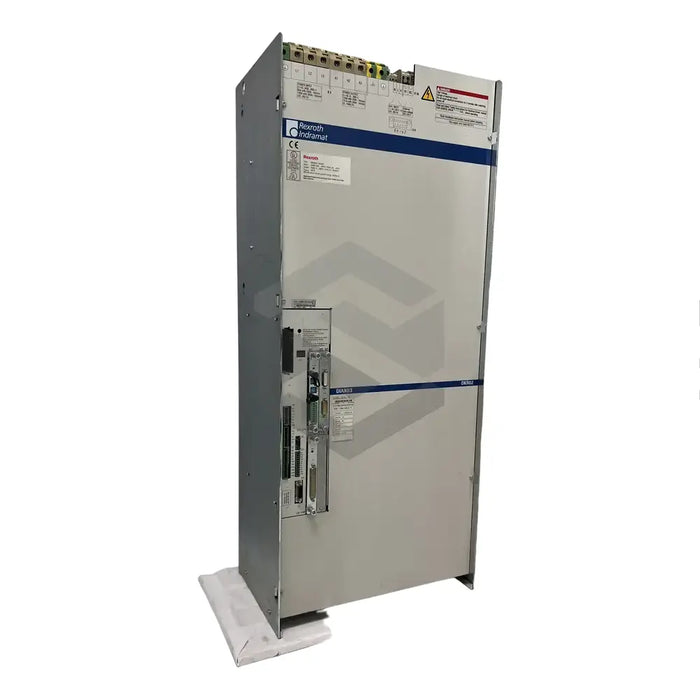

product Main (Front Left) image of DKR02.1-W300Z-BE11-01-FW

DKR02.1-W300Z-BE11-01-FW

by Bosch Rexroth Indramat
Request a quote
The DKR02.1-W300Z-BE11-01-FW is a high-performance drive controller produced by Bosch Rexroth Indramat, primarily used in industrial automation. It's essential function is managing and monitoring the operations of Indramat AC motors efficiently. Capably delivering power across a wide speed range, this controller proves its precision, accuracy and durability. Connecting to an AC 3 × 400 – 480 V power source via the X5 port, this model also facilitates the connection of holding brakes and motor temperature monitoring through the X6 port. Diagnostic purposes are served by a seven-segment H1 display and a RS232 serial interface. With an operating current of 212 A, the controller offers a power output of 93 kW and features an in-built blower unit facilitating dissipation of 1200 W heat from the total 1800 W. The integrated bleeder resistor, in tandem with a 24 V blower unit, helps dissipate energy generated during deceleration. Additionally, it employs a SERCOS command interface, digital servo and resolver motor feedback while offering an IP20-rated housing.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DKR02.1-W300Z-BE11-01-FW
  • Application: Controlling and monitoring Indramat AC motors
  • Supply Module Electrical Connection: AC 3 × 400 – 480 V power source through X5 port
  • Additional Connections: Connection for holding brake and motor temperature monitoring via X6 port
  • Display Type: Seven-segment H1 display
  • Interface: Serial interface (RS232)
  • Maximum Current: 212 A
  • Maximum Power: 93 kW
  • Heat Dissipation: 1800 W
  • Descending Power: 1200 W
  • Bleeder Resistor Dissipation Power: 1.5 kW
  • Bleeder Resistor Cooling System: 24 V blower unit
  • Firmware: Ordered according to configuration, installed into U5 slot
  • Command Interface: SERCOS interface
  • Feedback: Digital servo and resolver feedback
  • Housing: IP20 ingress protection
  • Operating Temperature Range: +5 to +45 degree Celsius
