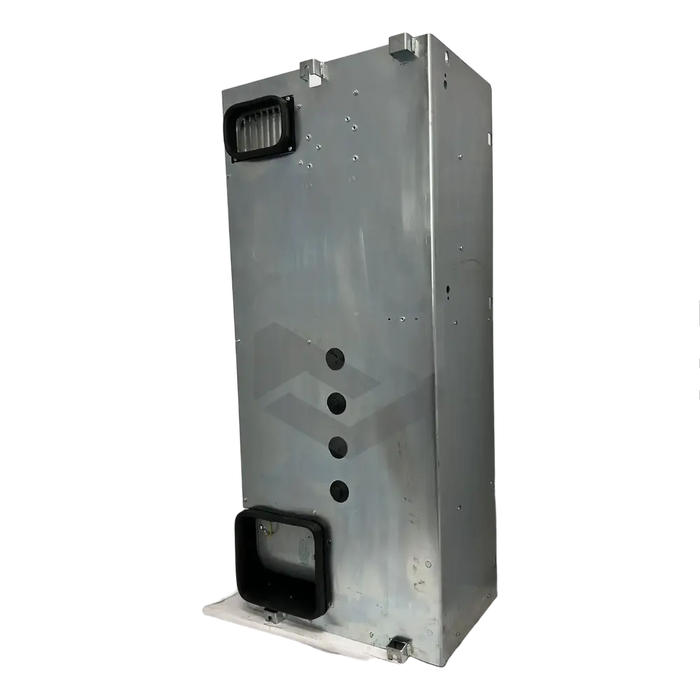

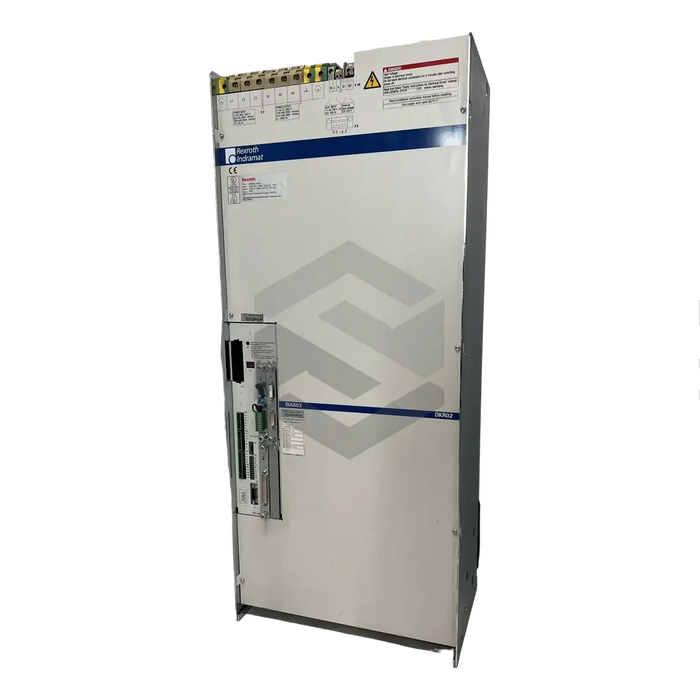

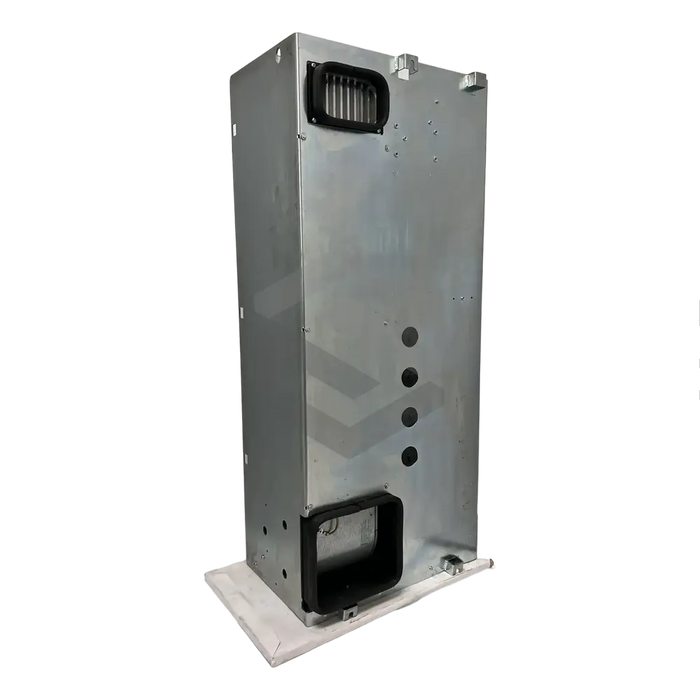

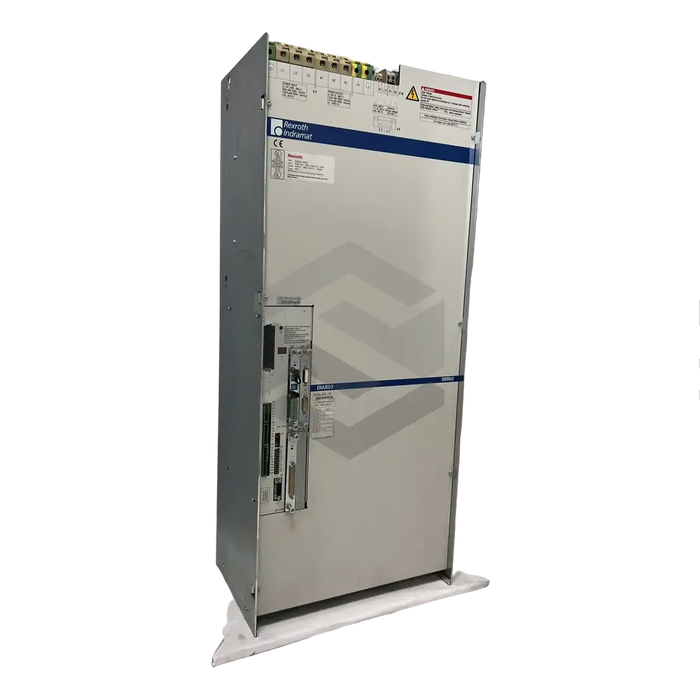

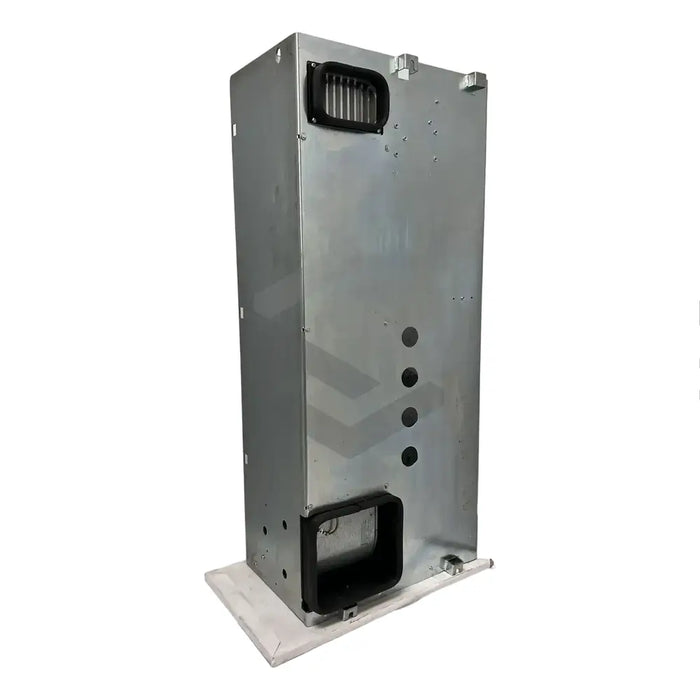

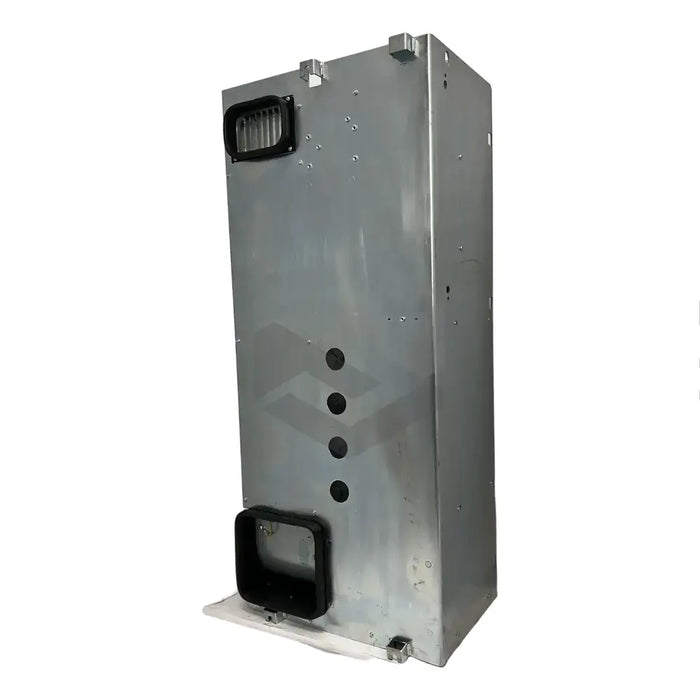

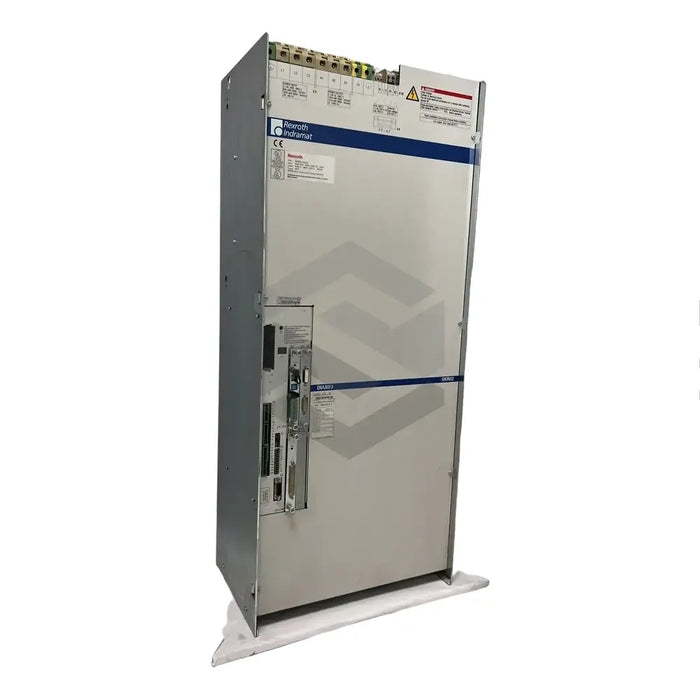

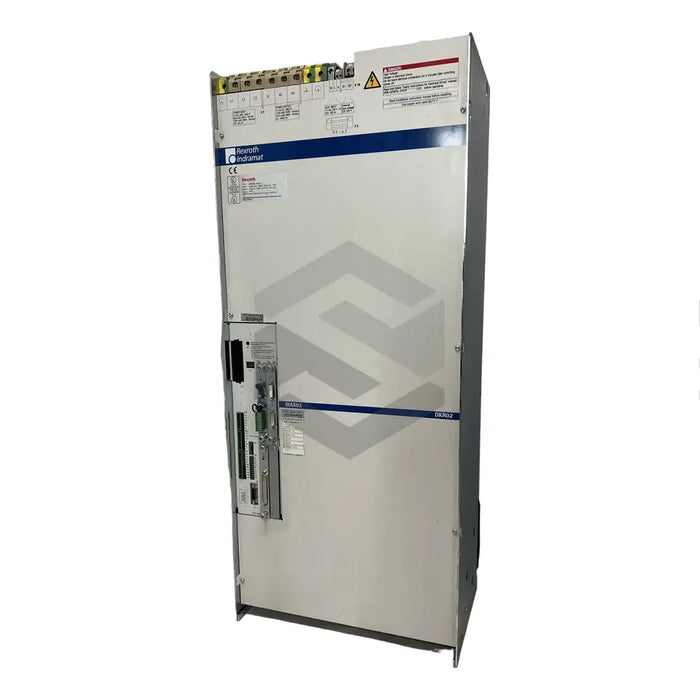

C image of DKR02.1-W300Z-BE11-02-FW | Main (Front Left)

DKR02.1-W300Z-BE11-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DKR02.1-W300Z-BE11-02-FW is a state-of-the-art drive controller, highly suitable for applications such as machine tools, printing machines, and handling systems. Engineered for maintenance-free operation, it adheres to the IP20 protection standard, resistant to 50 mm dust particles, ensuring optimal performance when installed in a dust-free environment. Its robust setup features a power rectifier, five PCI slots, and a DSS 02.1M command interface card for indirect position detection. Communication with AC motors is achieved via an optical fiber cable through the SERCOS interface. Weighing 104 kg, it operates between +5 to +45 degree Celsius and up to a maximum altitude of 1000 m/sea level. Its bleeder resistor generates up to 240 kWs of braking energy, cooled by a 24 VDC blower. With a rated current requirement of 300 A, the product's firmware needs to be separately ordered based on the specific configuration needs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DKR02.1-W300Z-BE11-02-FW

Operation Type

Maintenance-free

Protection Standard

IP20

Mounting Conditions

In closed control cabinet of minimum IP54 protection category, Dust-free and reactive elements free atmosphere

Common Applications

Machine tools, Printing machines, Handling systems

Unit Features

Power rectifier and 5 PCI slots

Position Detection

Indirect, digital servo and resolver feedback

Communication Interface

DSS 02.1M command interface card, SERCOS interface (optical fiber cables)

Weight

104 kg (excluding bleeder resistor, mounting kit, and blower unit)

Operating Temperature

+5 to +45 degree Celsius

Mountable Height

1000 m/sea level

Braking Energy

240 kWs (generated by bleeder resistor)

Cooling System

24 VDC blower

Rated Current

300 A

Firmware

Must be ordered separately according to configuration
