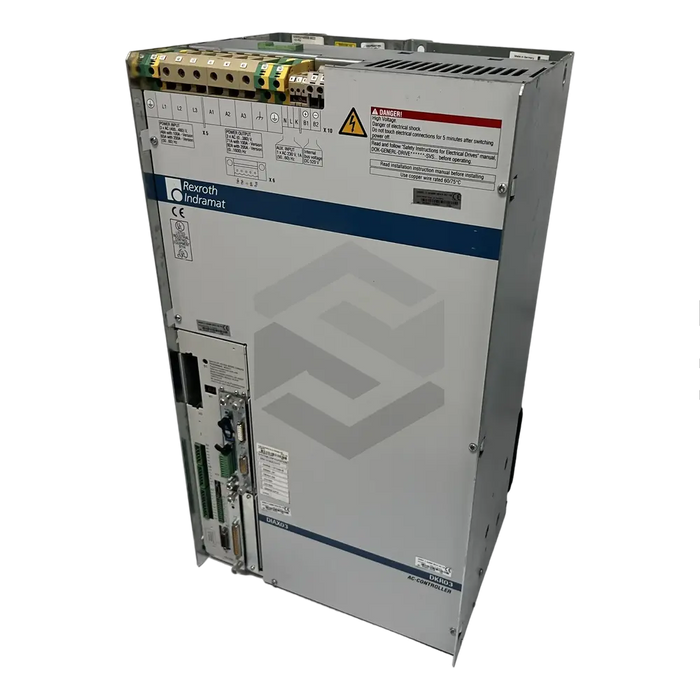

C image of DKR03.1-W100B-BE43-02-FW | Main (Front Left)

DKR03.1-W100B-BE43-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W100B-BE43-02-FW by Bosch Rexroth Indramat is a drive controller featuring numeric function code 43 and version function numeric code 02. Operating on three-phase 400-480 V AC input and a 230 V AC control voltage, this controller offers a permissible fluctuation of ±10%. Both controller and control input maintain a frequency range of 50 to 60 Hz. The controller's control circuit demands 200 VA power and hosts a continuous current rating of 71 Amps at 4KHz or 60 Amps at 8KHz, with a peak of 71 Amps. Its maximum power output ranges between 22 kilowatts and 26 kilowatts depending on frequency. The unit, which dissipates 900 Watts of power and includes a built-in cooling blower, also incorporates a SERCOS interface for command communication and supports digital servo and resolver feedback. Note that firmware must be purchased separately. The unit should be handled and installed by professionals to prevent damages.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DKR03.1-W100B-BE43-02-FW

Product Type

Drive Controller

Function Numeric Code

43

Version Function Numeric Code

02

Rated Input

Three-phase 400-480 Volts AC

Input Tolerance

±10%

Control Voltage

230 Volts AC

Control Tolerance

±10

Frequency Range

50-60 Hertz

Required Control Circuit Power

200 VA

Rated Continous Current (4 kHz)

71 Amps

Rated Continous Current (8 kHz)

60 Amps

Max Rated Current

71 Amps

Peak Power Rating (4 kHz)

26 kilowatts

Peak Power Rating (8 kHz)

22 kilowatts

Continous Regenerated Power

22 kilowatts

Max Regenerated Power

26 kilowatts

Power Voltage

0-380 Volts AC

Total Power Dissipation

900 Watts

Cooling System

Built-in Blower

Communication

SERCOS Interface

Features

Includes Bleeder, Supports Digital Servo and Resolver Feedback

Storage Ambient Temperature

-30 to 85 degrees Celsius

Installation

Should Be Carried Out By Trained Personnel Only.
