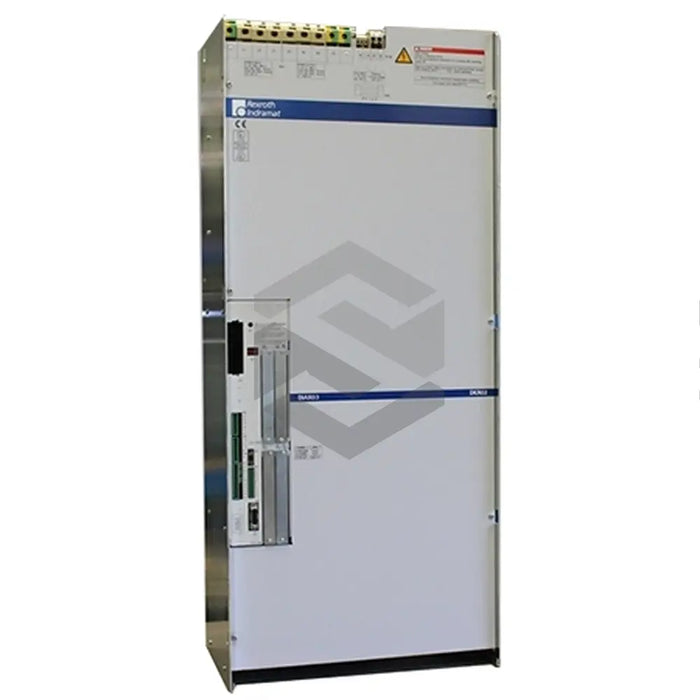

S image of DKR03.1-W100N

DKR03.1-W100N

by Bosch Rexroth Indramat
$15,804.70 - $17,385.17
$17,385.17
$15,804.70 - $17,385.17
$17,385.17

In Stock, Ships 1 - 3 Days

The DKR03.1-W100N is a compact drive control unit manufactured by Bosch Rexroth Indramat, known for its reliability and wide power range. This unit is used to monitor and operate many types of motors by Rexroth. Weighing 49 kg, it is shipped with an accessories kit of 1.7 kg. It operates optimally between +5 to +45 degrees Celsius with up to 20% data loss if the temperature rises to a maximum of +55 degrees. It can be stored safely from -30 to +80 degrees. The unit can be installed up to 1000 meters above sea level without data de-rating. Connection points for resetting the device, displaying status, and input control are clearly labelled. Air-cooled with a built-in blower, it comes without a bleeder, and firmware must be ordered separately. Ideal applications include printing machines and numeric controlled machine tools. It compatible with AC spindle motors 2AD or ADF, frameless spindle and linear motors. It requires a three-phase AC unit with 10% tolerance and has a control voltage power rating of 200 VA.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Control Unit

Model Number

DKR03.1-W100N

Weight

49 kg

Accessories Kit Weight

1.7 kg

Operating Temperature

+5 to +45 degree Celsius

Maximum Safe Temperature For Operation

+55 degree Celsius

Safe Storage Temperature

-30 to +80 degree Celsius

Maximum Installation Elevation

1000 meters

Device Reset Point

S1

Status Display Point

H1

Control Input Point

X9

Cooling Mechanism

Built-in blower

Variant

Standard without bleeder

Firmware

Not Included

Applicable Motors

AC spindle motors 2AD or ADF, frameless spindle motors, linear motors

Power Supply

3-phase AC unit (3x 400… 480 V with 10% tolerance)

Frequency

50/60 Hz

Control Voltage Power

200 VA
