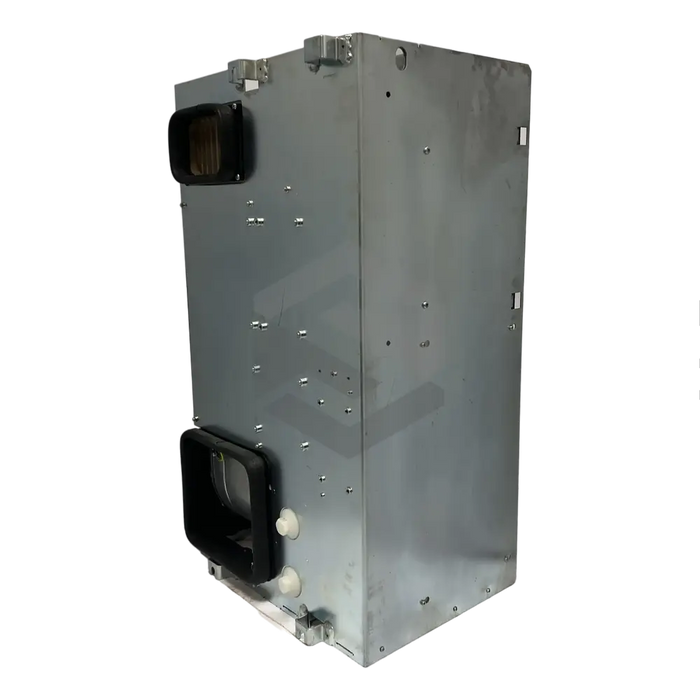

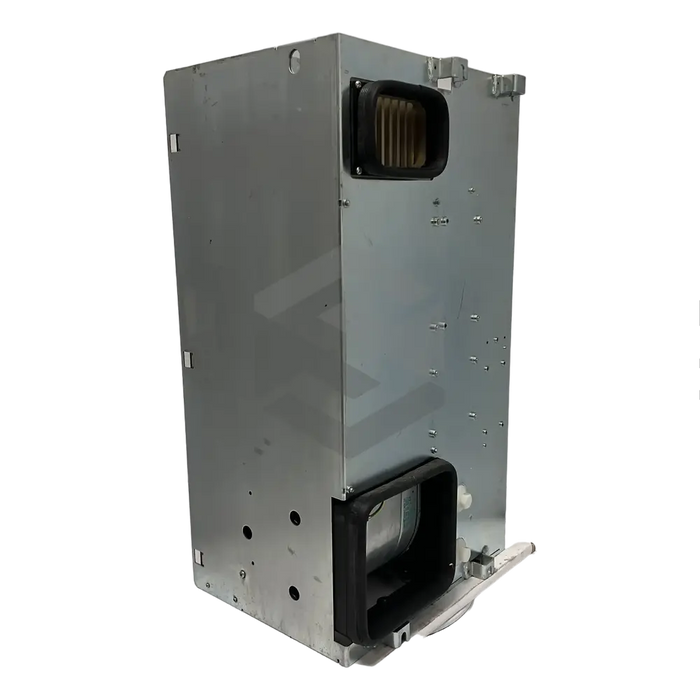

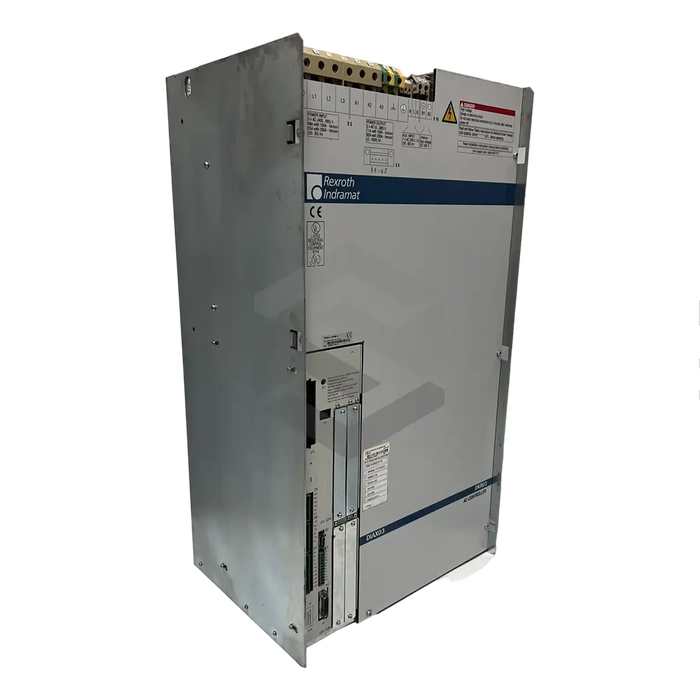

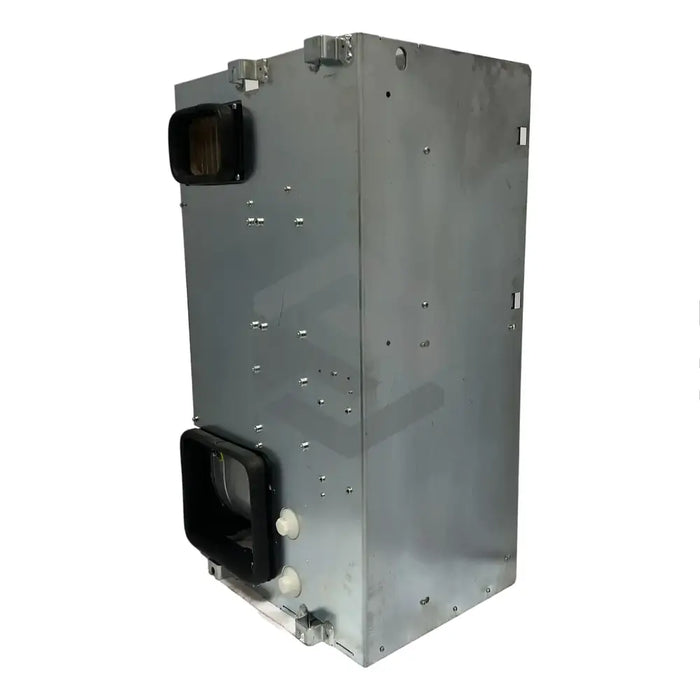

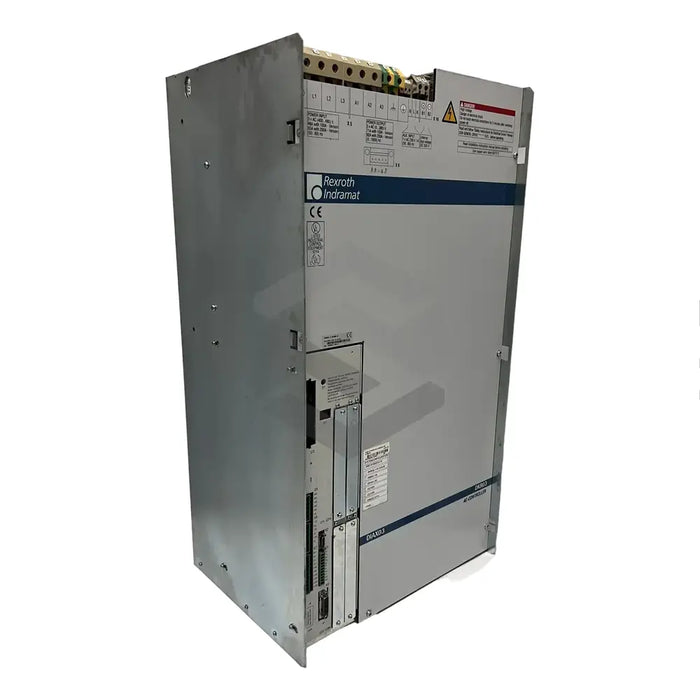

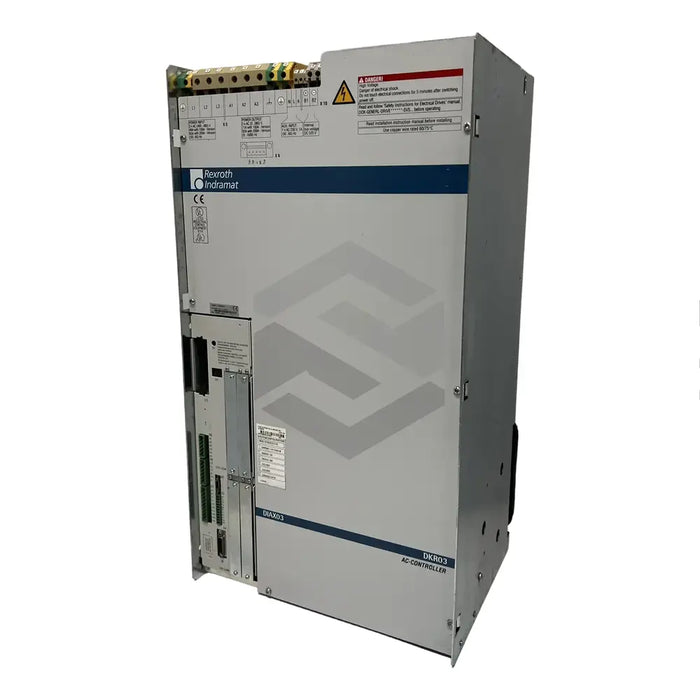

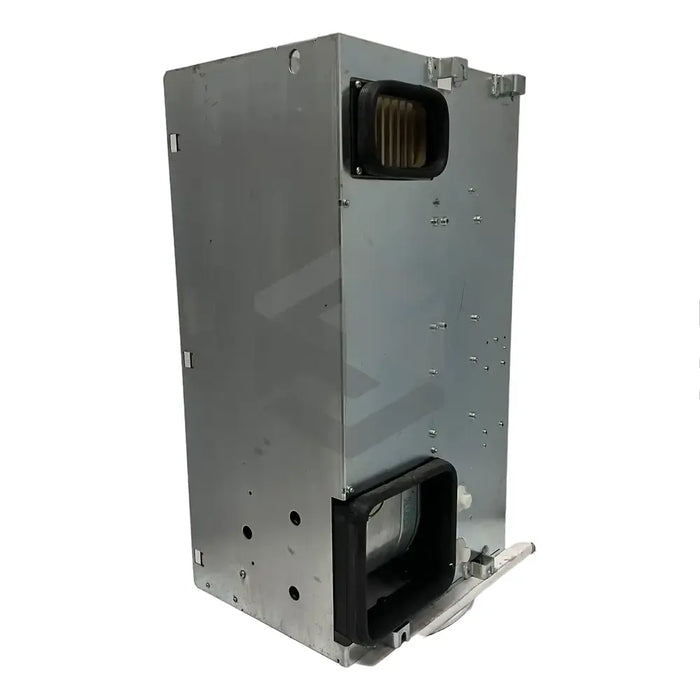

C image of DKR03.1-W100N-B | Main (Front Left)

DKR03.1-W100N-B

by Bosch Rexroth Indramat
$13,143.93 - $18,000.00
$18,000.00
$13,143.93 - $18,000.00
$18,000.00

Available, Shipping Varies

The Bosch Rexroth Indramat DKR03.1-W100N-B is a drive controller from the DKR series. Designed for versatility, this controller works with a range of Rexroth Indramat motors including 2AD/ADF series spindle motors, 1MB series frameless spindle motors and LSF/LAF linear motors. The DKR03.1-W100N-B is rated at 100 Amps and can be tailored to specific applications thanks to optional modules that can be added to slots U1 to U5. An inclusive unit, it features a basic unit, software module, interface cards, and plug-in modules. With an onboard blower for cooling, a bleeder, and provision for digital servo and resolver feedback, the module runs on 400 to 480 Volts AC three-phase input with 50 to 60 Hertz frequency and allows for a ±10% variation in input voltage. Taking into account its accessories kit, the controller weighs nearly 50kg and measures 690 x 390 x 310mm. The unit can operate within an ambient temperature range of 5-45 degrees Celsius and up to a maximum altitude of 1000 meters without derating. Lastly, this module holds an IP20 protection rating in line with IEC 529 and EN 60529 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

DKR Series

Product Model

DKR03.1-W100N-B

Ampere Rating

100 Amps

Motor Compatibility

2AD / ADF series spindle motors, 1MB series frameless spindle motors and LSF / LAF linear motors

Cooling System

Integrated blower

Feedback Support

Digital Servo and Resolver Feedback

Input Voltage

400 to 480 Volts AC

Line Frequency

50 to 60 Hertz

Power Tolerance

±10%

Maximum Power Rating (4kHz)

26 kilowatts

Maximum Power Rating (8kHz)

22 kilowatts

Controller Weight

49 kilograms

Dimensions

690 x 390 x 310 millimeters

Allowable Ambient Temperature (with rated data)

5 to 45 degrees Celsius

Max Ambient Temp (with 80% derating)

55 degrees Celsius

Max Installation elevation

1000 meters

Enclosure Protection Rating

IP20.
