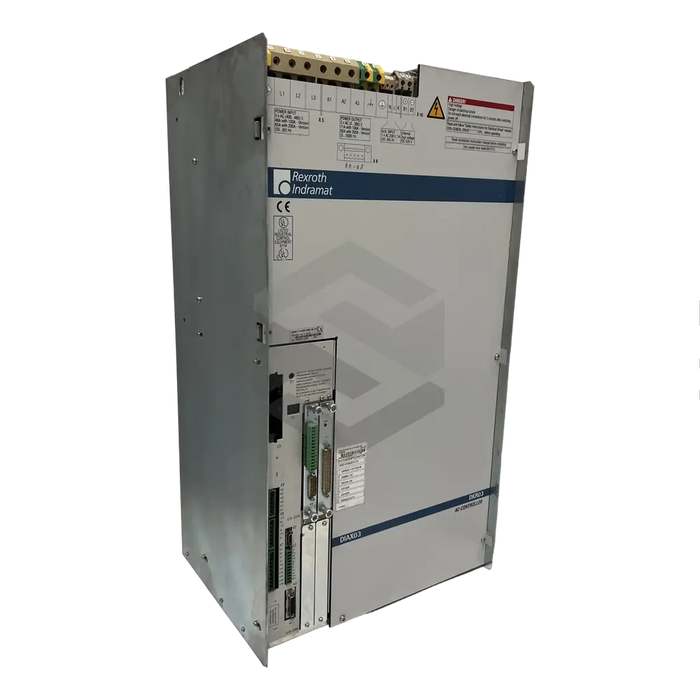

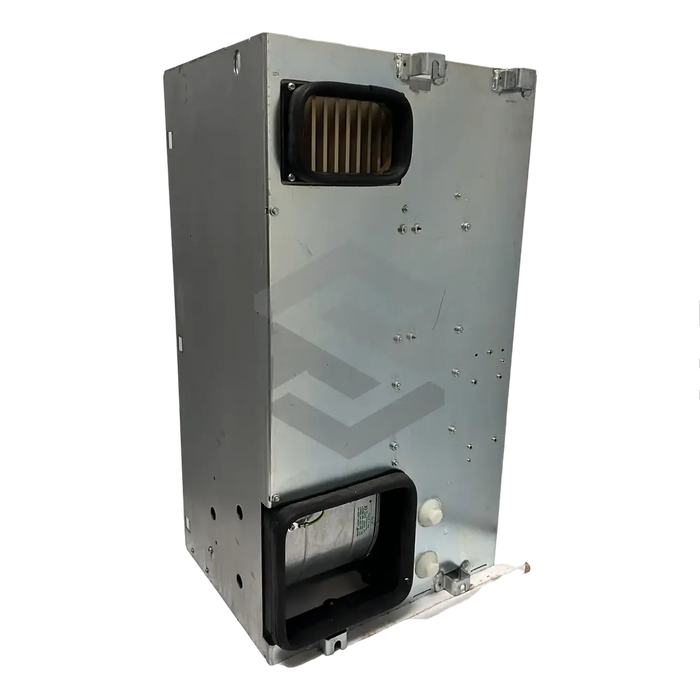

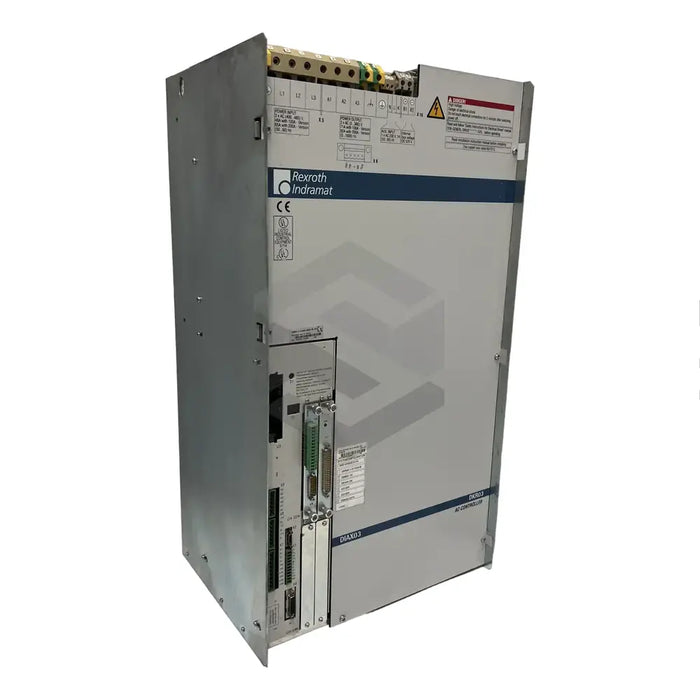

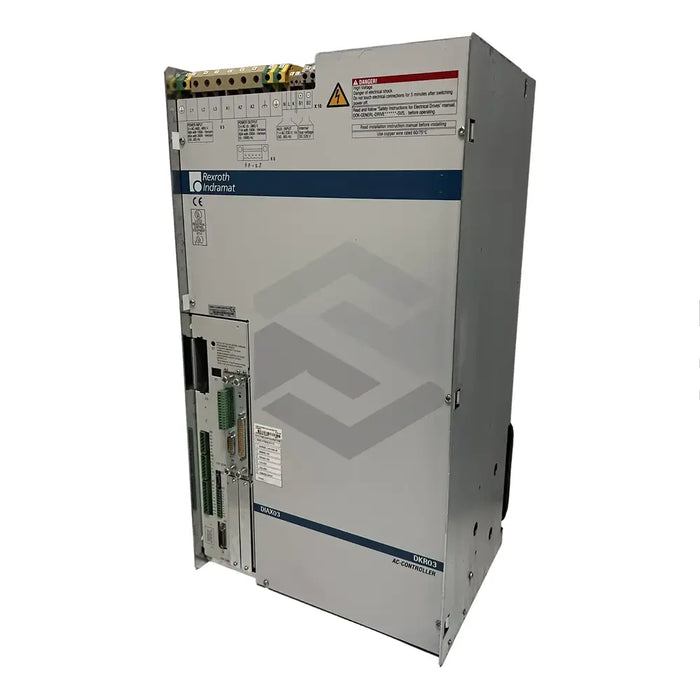

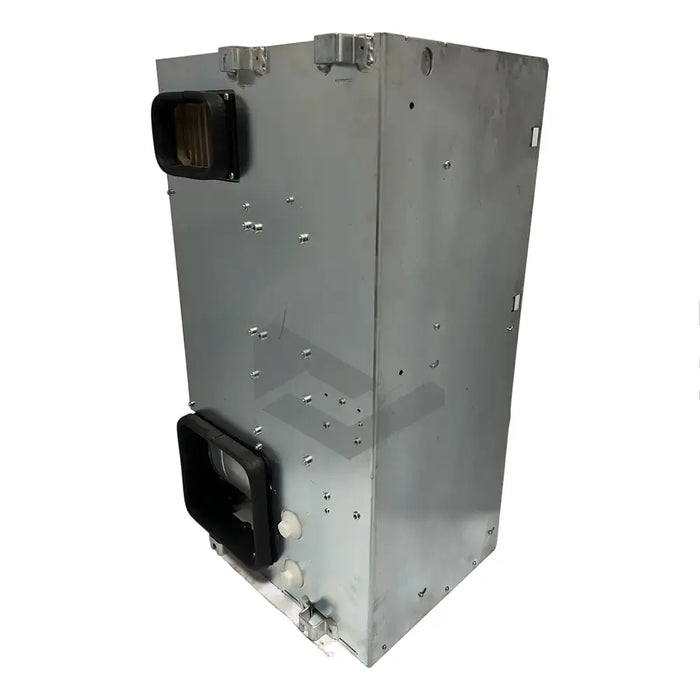

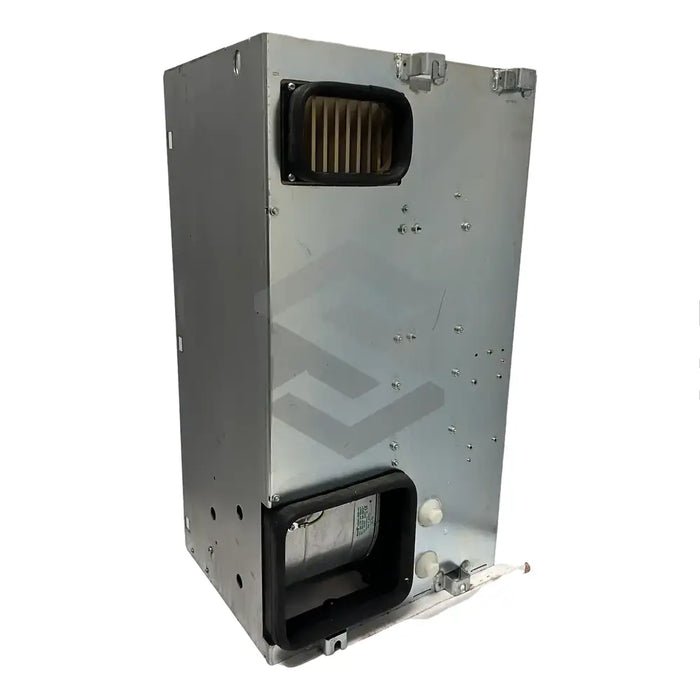

DKR03.1-W100N-BA03-01-FW
The Bosch Rexroth Indramat DKR03.1-W100N-BA03-01-FW is a drive controller belonging to the DKR product group. Weighing approximately 49kg, the controller uses a built-in blower for cooling and has a rated current of 100 Amps at a system frequency of 50-60 Hz. It employs a resolver motor feedback method for operations and communicates commands via an analog interface. This model lacks an in-built bleeder and requires the software module to be separately installed as EPROMs on the plug-in or DSM firmware modules. Heat dissipation is 900W or 600W with a coolant or air channels. The peak regenerated shaft power is ca. 26 kW with a peak current rating of 71 Amps and a control voltage rating of 230V ±10% AC. Optimal performance is at +5 to +45 degrees Celsius and 0-1000m elevation—any variation may risk damage. The cooling efficiency requires appropriate filters and maintenance by trained technicians.
30 Day Warranty
Technical Specifications
