S image of DKR03.1-W100N-BA05-01-FW

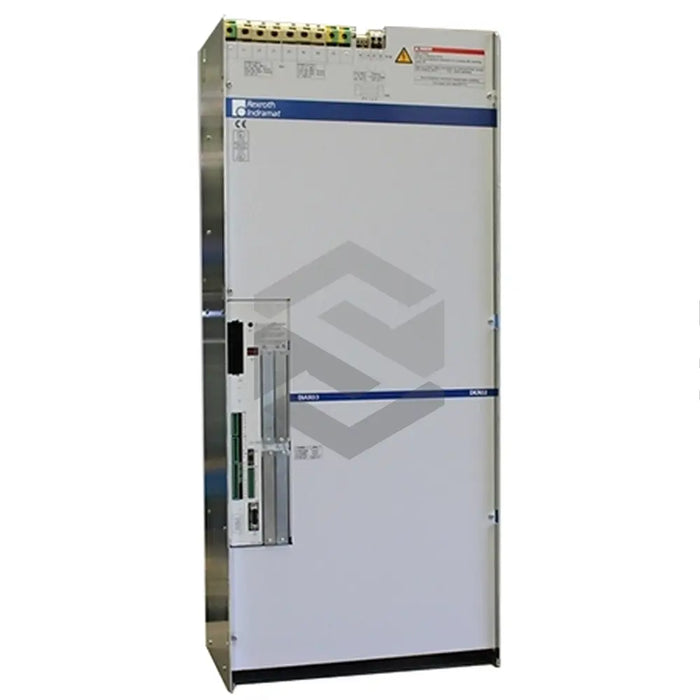

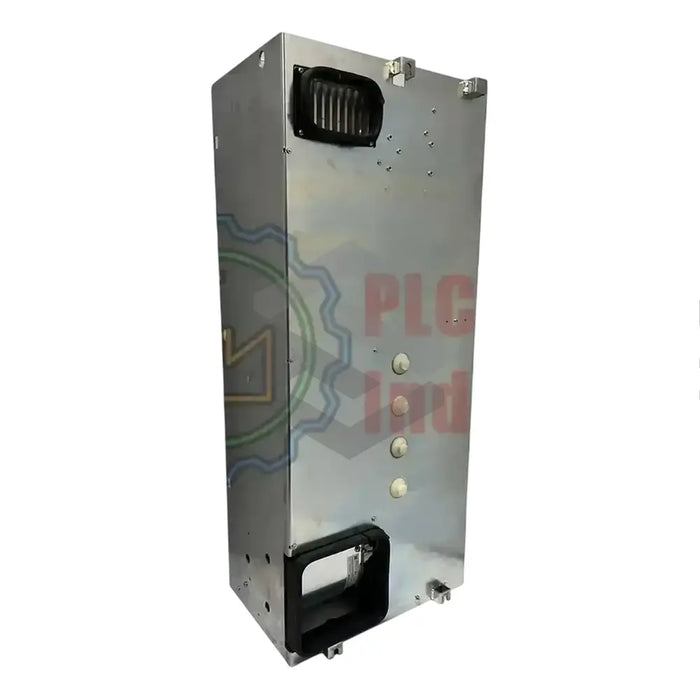

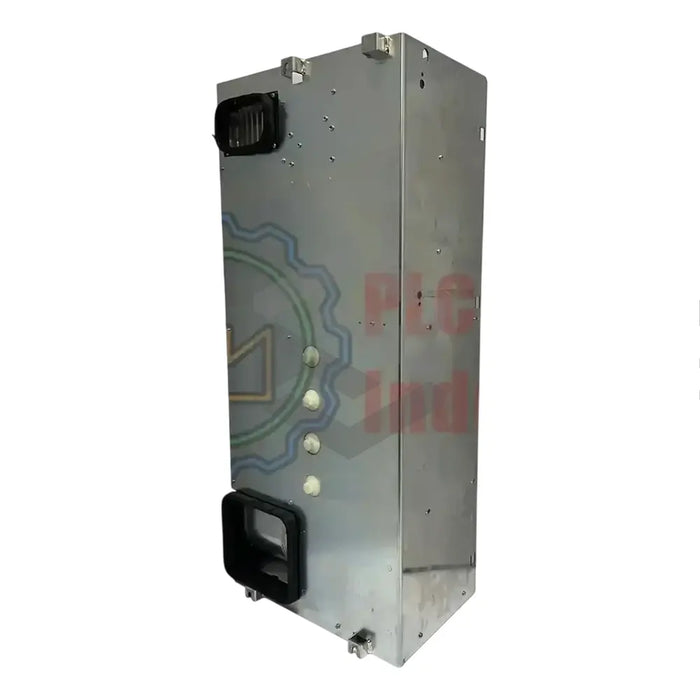

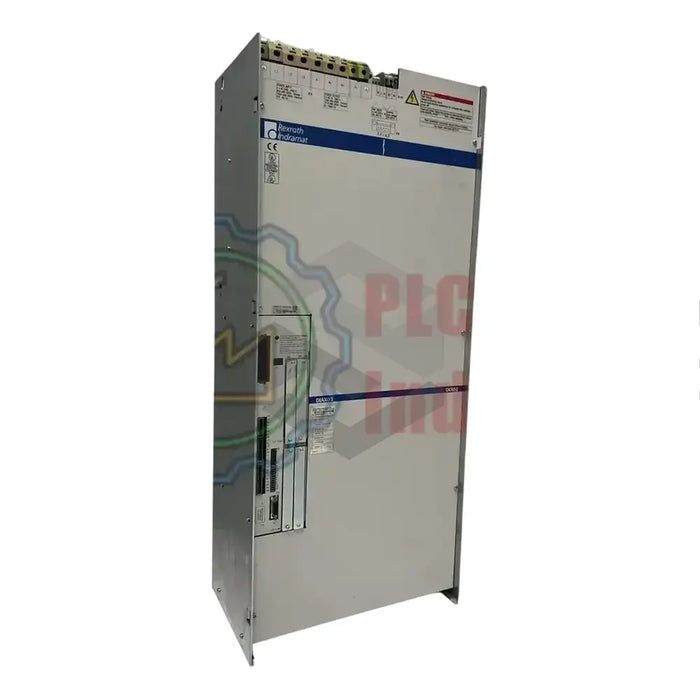

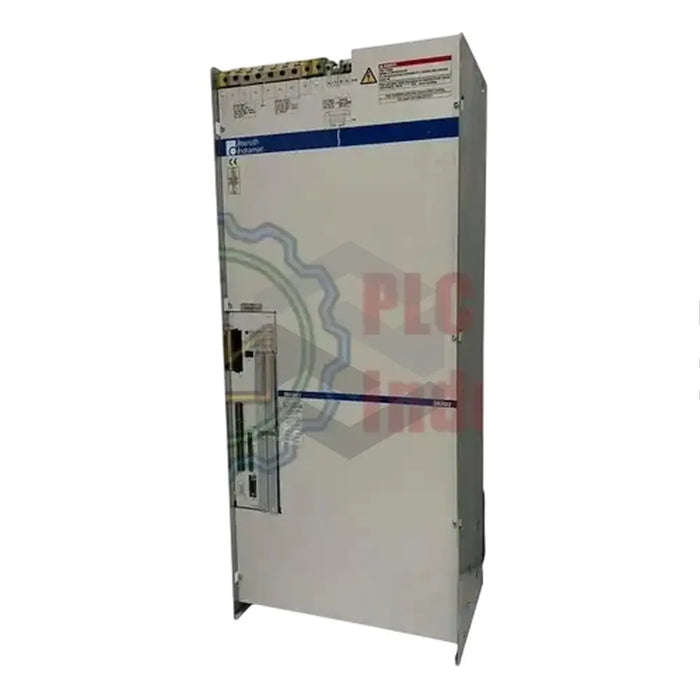

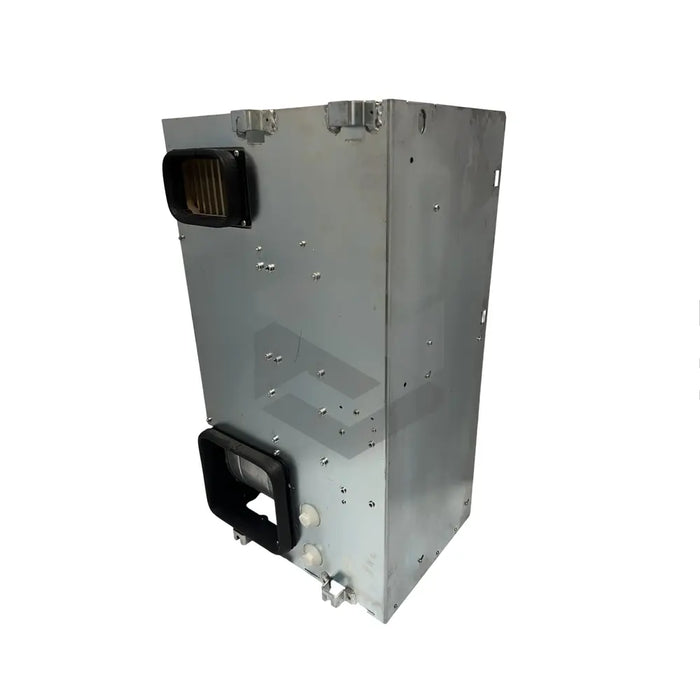

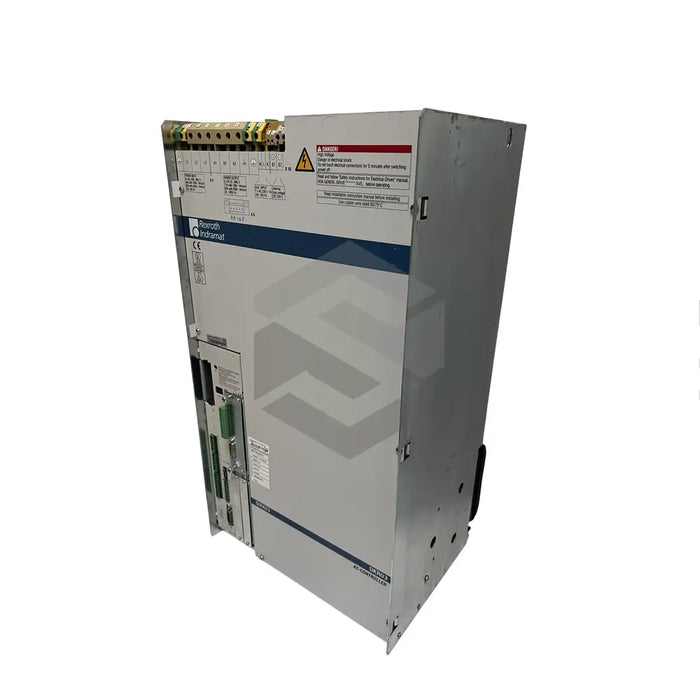

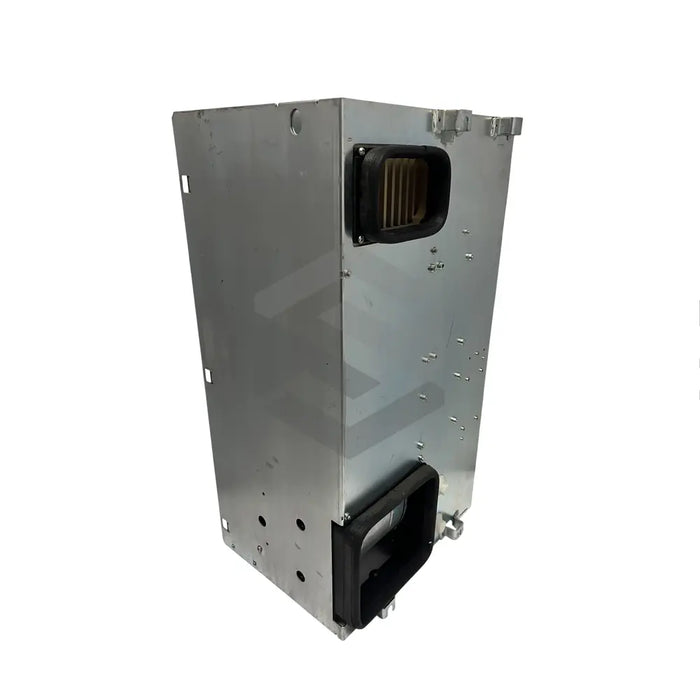

DKR03.1-W100N-BA05-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W100N-BA05-01-FW is a DKR type intelligent drive controller produced by Bosch Rexroth Indramat, specifically engineered for precise control over Rexroth Indramat motors. This controller offers a wide speed range, high-level control, and consistent power, incorporating an internal brake resistor for absorbing up to 150 kWs of energy during power failure. With a built-in blower and heat sink housed within, this drive dissipates rated 900 W of heat. The power voltage rating is 3xAC 400-480 V ± 10%, capable of a maximum current of 71 Amps. Weighing approximately 49 kg, it operates optimally in an ambient temperature range of +5 to +45 degrees at full capacity, and up to +55 degrees at 80% capacity. The acceptable installation altitude extends up to 1000 meters above sea level at full capacity. Utilizing an analog command interface, resolver motor, and digital servo feedback system, it carries a function numeric code of 05 and does not include a bleeder. Adherence to safety instructions and relevant documentation is mandatory prior to installation and usage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DKR Type Intelligent Drive Controller

Control Method

Digital and Precise

Main Features

Broad Range of Speed, High-Level Control, Constant Power

Embedded Component

Internal Brake Resistor

Absorbed Power During Mains Failure

150 kW

Housing

In-built Blower and Heat Sink

Heat Dissipation Rating

900 W

Power Voltage Rating

3xAC 400-480 V ± 10%

Maximum Current

71 Amps

Weight

49 kg

Permissible Temperature at 100% Rated Data

+5 degrees to +45 degrees

Permissible Temperature at 80% Rated Data

+55 degrees

Maximum Elevation at 100% Rated Data

0 to 1000 meter/sea lev

Operating System

Designated, Must be Sourced Separately

Communication Interface

Analog Command Interface

Feedback System

Resolver Motor and Digital Servo

Function Numeric Code

05

Bleeder

Not Included.
