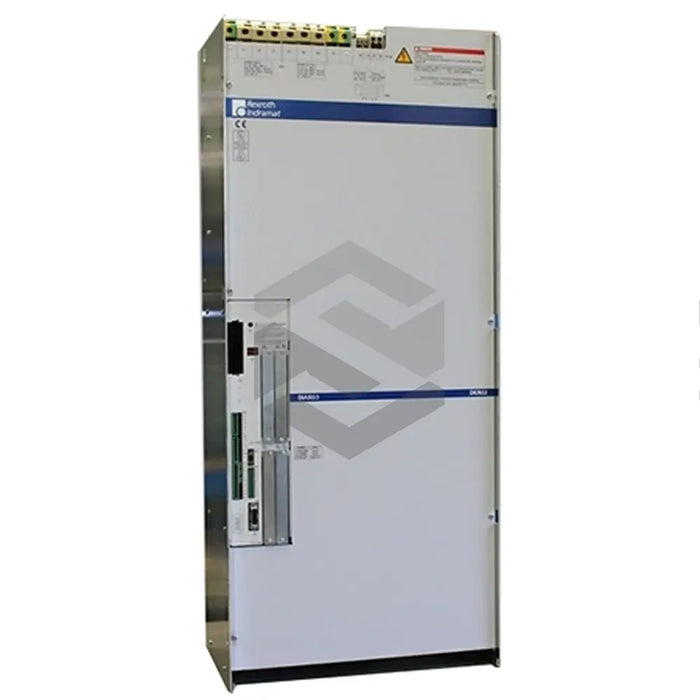

S image of DKR03.1-W100N-BA32-01-FW

DKR03.1-W100N-BA32-01-FW

by Bosch Rexroth Indramat
$19,198.80 - $19,198.80
$19,198.80
$19,198.80 - $19,198.80
$19,198.80

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat DKR03.1-W100N-BA32-01-FW is an advanced drive controller for Indramat motors, part of the DKR series line 3. It uses built-in or air-cooling, it's designed for standard systems without blenders and communicates via an analog interface with digital servo motor feedback. This model employs a control voltage of 230V, system frequency between 50Hz and 60Hz, and continues drive current of 4kHz: 71A and 8 kHz: 60A. Offering continuous regenerated power around 22-26 kW and control voltage from 0 to 380V. Heat dissipation is 900W under normal conditions but reduced to 600W in air channel or with coolant. An optional brake resistor comes with a peak braking energy of 150kWs and a peak power of 40 kW. The product weighs around 49 kg and operates optimally within an ambient temperature range of +5⁰C to +45⁰C and a maximum installation elevation of 0-1000m. Complying with IP 20 protection standard per EN60529 or IEC529, it should be used strictly by trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

DKR Series Line 3

Product Type

Drive Controller

Cooling Mode

Air or built-in blower

Rated Current

100

Design

Standard (without blenders)

Motor Feedback

Digital servo or Revolver

Command Communication Interface

Analog

Function Numeric Code

32

Version Function Numeric Code

01

Firmware

FW

Rated Power Voltage

3xAC 400 V to 480 V, ± 10%

System Frequency

50Hz to 60Hz

Control Voltage

AC 230V, ± 10%

Control Frequency

50Hz to 60Hz

Control Voltage Power

200VA

Continuous Current of the Drive

4kHz: 71A, 8 kHz: 60A

Peak Current

71A

Continuous Power of the Drive

4kHz: 26 kW, 8kHz: 22 kW

Continuous Regenerated Power

22kW to 26kW

Drive Control Voltage

0 to 380V

Max Frequency of Voltage

4kHz: 800Hz, 8kHz: 1600Hz

Heat Dissipation

coNteff: 900W - Air channel/Coolant in coNteff: 600W

Auxiliary Brake Resistor

150kWs Peak Braking Energy, Continuous Power: 1KW, peak power: 40kW

Weight

49kg (accessories kit: 1.7kg)

Ambient Condition

+5⁰C to +45⁰C (Rated Data), +55⁰C(Nominal data derated to 80%)

Storage Temperature

30⁰C to 80⁰C

Installation Elevation

0 to 1000m/sea level

Protection Category

IP 20 per EN60529 or IEC529
