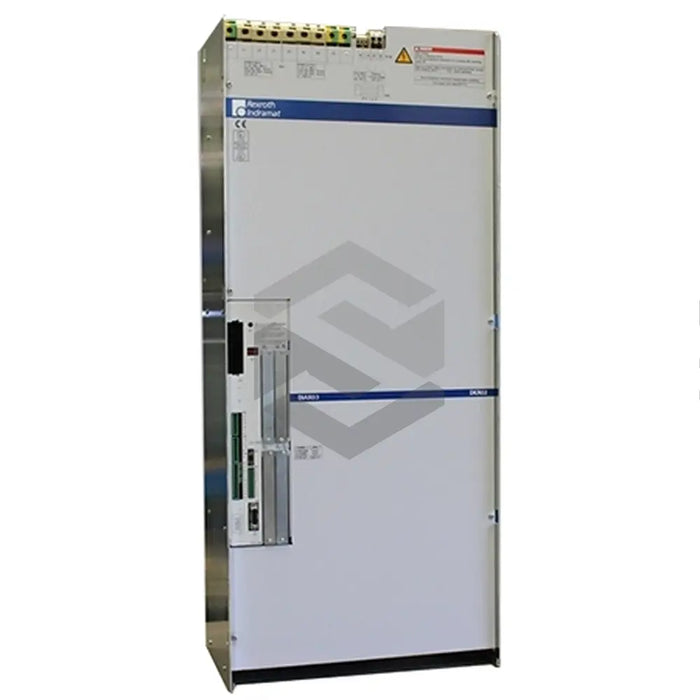

S image of DKR03.1-W100N-BE09-01-FW

DKR03.1-W100N-BE09-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W100N-BE09-01-FW drive controller is a product of Bosch Rexroth Indramat. Predominantly engineered for use with Indramat motors, this digital intelligent device falls under the DKR series and includes a built-in blower air cooling mode. The unit has no blenders, offers a rated current of 100, and can receive either resolver or digital servo feedback. It communicates commands via a SERCOS interface. The firmware is identified as FW and must be purchased separately. For optimal function, the ambient conditions should remain within +5⁰C and +45⁰C, with maximum installation elevation at 1000 m/sea level, without derating nominal data. The driving control offers a power voltage of 3xAC 400V to 480V, ± 10%, a control voltage of AC 230V, and system and control frequencies within 50Hz and 60Hz. The unit weighs roughly 49kg and should be handled solely by trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

DKR

Product Type

Drive Controller

Cooling Mode

Built-in Blower Air

Design

Standard Without Blenders

Rated Current

100

Motor Feedback

Resolver or Digital Servo

Command Communication

SERCOS Interface

Function Numeric Code

09

Version Function Numeric Code

01

Firmware

FW

Ambient Conditions Range

+5⁰C to +45⁰C

Storage and Shipping Temperature

30⁰C to 80⁰C

Max Permanent Temperature Without Derating

+55⁰C

Installation Elevation

0 to 1000 m/sea lev

Protection Standard

IP 20

Control Voltage Power

200VA

Control Voltage

AC 230V

Rated Power Voltage

3xAC 400V to 480V ±10%

System Frequency

50Hz to 60Hz

Control Frequency

50Hz to 60Hz

Continuous Current

71A and 60A at 4kHz and 8kHz

Peak Current

71A

Continuous Regenerated Power

22kW

Power Peak in line with motor shaft

26kW

Drive Control Voltage

0 to 380V

Continuous Power in Motion

26kW and 22kW at 3xAC 400V-5%

Max Voltage Frequency

800Hz and 1600Hz at 4kHz and 8kHz

Comprehensive Heat Dissipation

900W and 600W

Braking Energy (Auxiliary Brake Resistor)

150kWs

Peak Power (Auxiliary Brake Resistor)

40kW

Continuous Power (Auxiliary Brake Resistor)

1kW

Weight

49kg

Accessories Kit (MI-RAC) Weight

1.7kg
