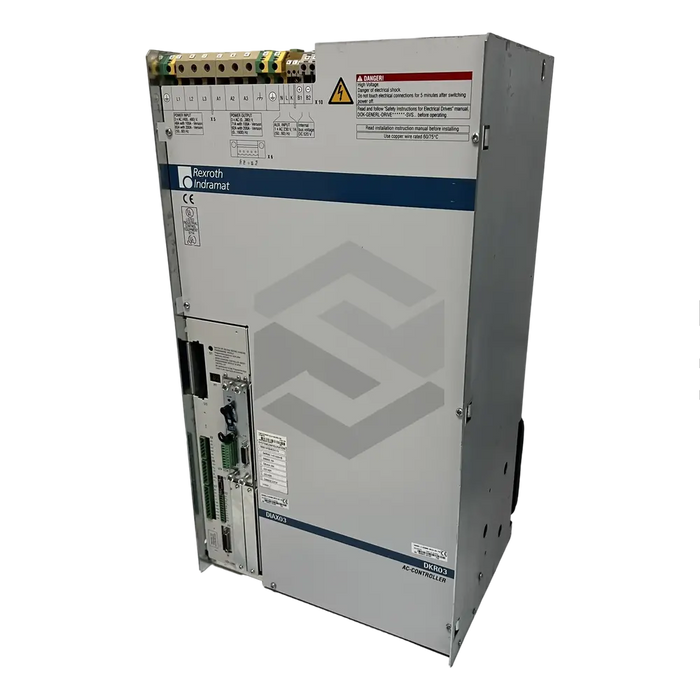

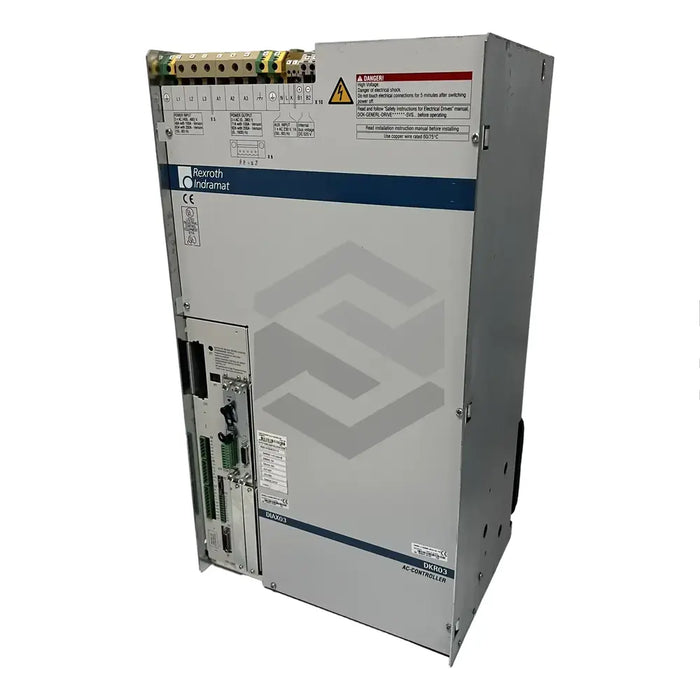

C image of DKR03.1-W100N-BE32-01-FW | Main (Front Left)

DKR03.1-W100N-BE32-01-FW

by Bosch Rexroth Indramat
$20,194.90 - $22,214.39
$22,214.39
$20,194.90 - $22,214.39
$22,214.39

In Stock, Ships 1 - 3 Days

The DKR03.1-W100N-BE32-01-FW is a high-performing servo drive controller made by Bosch Rexroth Indramat. This distinctive device is engineered to direct various servo motors, such as 2AD or ADF AC spindle motors, LSF or LAF linear motors, and frameless spindle motors. User customization is possible via configuration cards inserted in slots U1 to U5. A fully functional drive comprises a software module, auxiliary plug-ins, command interface cards, and a base unit. Quality-assured, the device features an air blower and heatsink for temperature regulation, alongside a three-phase input voltage connector. Communication with its motor is achieved through digital servo and resolver feedback, and its command communication utilizes a SERCOS interface card. Operating on a 230V AC control voltage and 200V-Ampere power, it has a current rating of 100Amperes and power voltage rating of 3xAC 400 to 480Volts. With a system frequency between 50 and 60 Hertz, it can draw a maximum current of 71Amperes, enabling motor power generation up to approximately 26Kilowatts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Drive Controller

Designed for Servo Motors

AC Spindle Motors 2AD or ADF, Linear Motors LSF or LAF, and Frameless Spindle Motors

Configuration Options

Slots U1 to U5 for Configuration Cards

Configuration Components

Software Module, Auxiliary Plug-in Modules, Command Interface Cards, and a Basic Unit

Cooling System

Air Blower and Heatsink

Power Connection

Three-Phase Input Voltage Connector

Bleeder

Absent

Command Communication

SERCOS Interface Card

Feedback System

Digital Servo and Resolver

Control Voltage

AC 230Volts

Control Voltage Power

200Volts-Ampere

Rated Current

100Amperes

Rated Power Voltage

3xAC 400 to 480Volts

System Frequency

50 to 60 Hertz

Maximum Current Draw

71Amperes

Maximum Motor Power at Max Current

ca 26Killowatts

Maximum Regenerated Power at Max Current

ca 26Kilowatts
