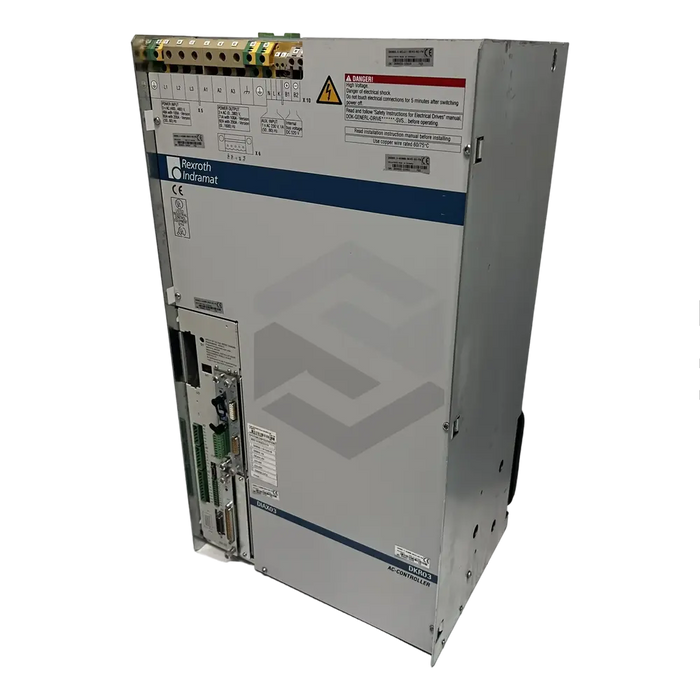

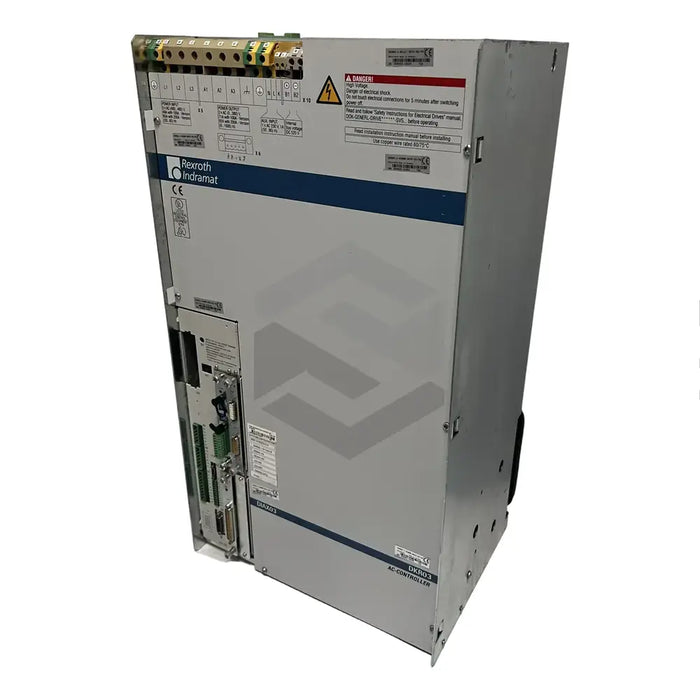

C image of DKR03.1-W100Z-BE43-02-FW | Main (Front Left)

DKR03.1-W100Z-BE43-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W100Z-BE43-02-FW is a high-quality drive controller created by Bosch Rexroth Indramat, renowned for their sustainable, energy-efficient industrial products. Designed specifically for the digital intelligent control of Indramat motors, the DKR03.1-W100Z-BE43-02-FW is widely used in machine tools, robotics, and other systems. Operating at a PWM frequency of 4-8 kHz, it delivers consistent power across a wide speed range. The controller can be powered directly from an AC 3 × 400 – 480 V source and functions ideally in a 50 – 60 Hz system frequency environment. Additional features include a built-in blower for temperature regulation, a digital servo and resolver feedback, and SERCOS interface for real-time motor communication. Custom configuration is possible through plug-in modules in the unit's U2 – U4 slots. The controller operates effectively up to a temperature of +45°C and meets the IP20 protection standard.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product type

Drive controller

Model

DKR03.1-W100Z-BE43-02-FW

Compatible motors

2AD or ADF main spindle motors, 1MB frameless spindle motors, and linear motors

Power source

AC 3 × 400 – 480 V

System frequency

50 – 60 Hz

Emergency feature

Emergency stop switch

Control voltage requirement

AC 230 V with ±10% tolerance

PWM frequency

4 kHz and 8 kHz

Continuous power at 4 kHz/8 kHz

26/22 kW

Continuous current at 4 kHz/8 kHz

71/60 A

Cooling system

Built-in blower (ambient air)

Feedback system

Digital servo and resolver

Data interface

SERCOS

Software module

ESM02.3 (in U5 slot)

Command interface card slot

U1 (SERCOS interface)

Optional modules

U2 – U4 slots

Heat dissipation

900 W

Maximum operating temperature

+45 degree Celsius

Protection standard

IP20
