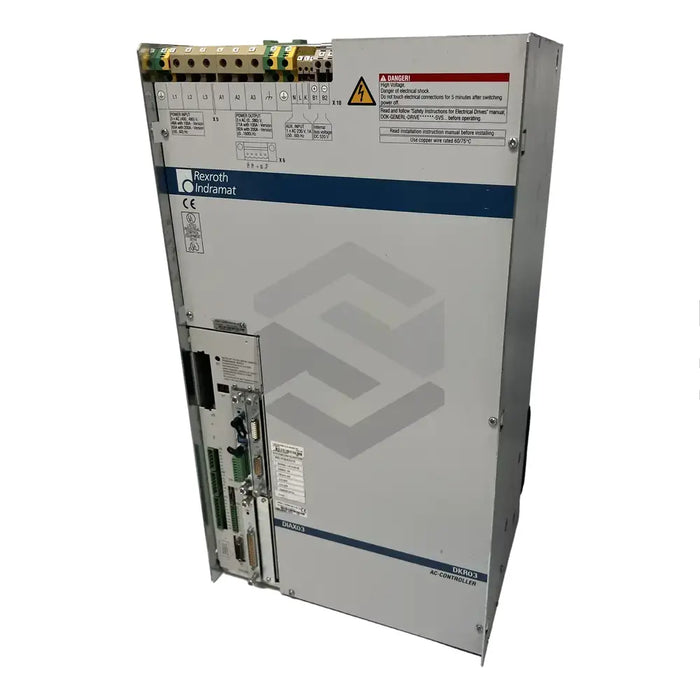

C image of DKR03.1-W200N-BA12-01-FW | Main (Front Left)

DKR03.1-W200N-BA12-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W200N-BA12-01-FW, produced by Bosch Rexroth Indramat, is an industrial drive controller in the DKR series, compatible with Rexroth Indramat spindle and linear motors for industrial applications like printing machines and machine tools. Operating with a function numeric code of 12 and a version function numeric code of 01, the controller utilizes a 400 to 480 Volts AC input voltage and supports a three-phase AC input with line frequencies between 50 to 60 Hertz. The rated control voltage is 230 Volts AC, with a drive continuous current rating of 92 / 78 Amps at 4 / 8 kilohertz tact frequencies. This model has an approximate continuous power of 35 / 30 kilowatts at 4 / 8 kilohertz tact frequency, with peak power at 55 kilowatts and continuous regenerated power around 30 kilowatts. It offers advanced digital servo and resolver feedback, convection cooling via a blower, and an analog command interface. Recommended operating conditions range between 41 and 113 degrees Fahrenheit within an elevation up to 3300 feet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Industrial Drive Controller

Series

DKR

Function Numeric Code

12

Version Function Numeric Code

01

Input Voltage Rating

400-480 Volts AC

Input Phase and Frequency

Three-phase AC, 50-60 Hertz

Rated Control Voltage

230 Volts AC

Control Voltage Power and Frequency

200 VA, 50-60 Hertz

Drive Continuous Current Ratings

92 / 78 Amps at 4/8 Kilohertz Tact Frequencies

Continuous Power

35 / 30 Kilowatts at 4/8 Kilohertz Tact Frequencies

Peak power

55 Kilowatts

Continuous Regenerated Power

30 Kilowatts

Feedback Type

Digital Servo and Resolver

Cooling Mechanism

Blower for Convection Cooling

Bleeder Availability

None

Command Interface

Analog

Total Heat Dissipation

1200 Watts

Heat Dissipation in Air Channel/Coolant

800 Watts

Maximum Operating Elevation

3300 feet

Operating Temperature

41-113 degrees Fahrenheit
