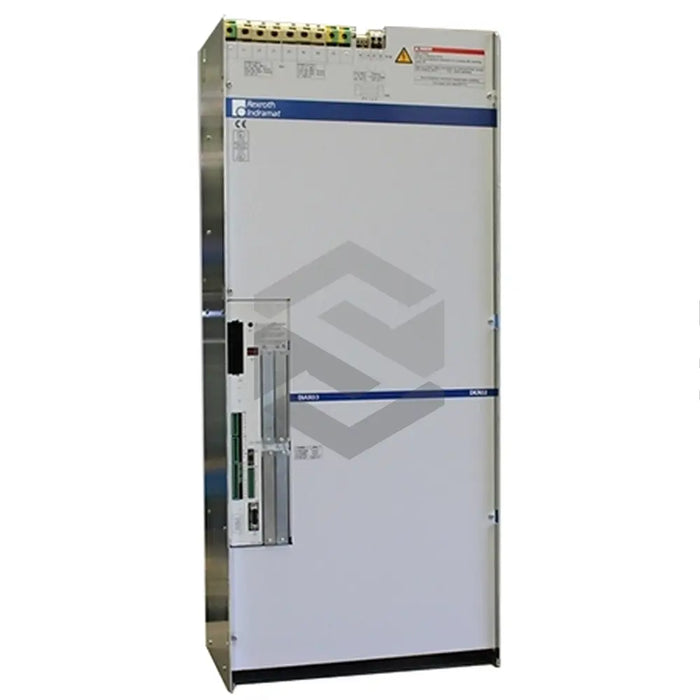

S image of DKR03.1-W200N-BA36-01-FW

DKR03.1-W200N-BA36-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W200N-BA36-01-FW drive controller, manufactured by Bosch Rexroth Indramat, serves as an efficient tool for regulating electric motor operations majorly in printing machines and numeric control machine tools. It directly connects to an AC main with parameters of 3 × 400 ~ 480V and a frequency range of 50/60 Hz. Built on IP 20 protection standards, it resists solid particles larger than 12.5 mm, but lacks protection against liquids. The device, consisting of a basic unit and five slots (U1-U5) for additional interfaces, is equipped with the ESM02.3 software module in the U5 slot. The model delivers up to 35kW of continuous power at 92 A for the 4kHz version and 30kW at 78 A for the 8kHz version, with a net heat dissipation of 1200 W. It also includes auxiliary plug-in modules enabling motor feedback and command communication. Firmware must be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model Number

DKR03.1-W200N-BA36-01-FW

Main Use

Controlling and monitoring electrical motors

Main Connections

Direct, Ground to AC main 3 x 400 - 480V ±10%

Operating Frequency

50/60 Hz

Protection Category

IP 20

Basic Unit

DKR03.1-W200N-B

Software Module

ESM02.3 in U5 Slot

Continuous Regenerated Power

30 kW

Continuous Power Delivered

35 kW (4 kHz model), 30 kW (8 kHz model)

Continuous Current

92 A (4 kHz model), 78 A (8 kHz model)

Heat Dissipation

1200 W (Including 800 W in air channel)

Function Numeric Code

36

Version Function Numeric Code

01

Auxiliary Plug-in Modules

Digital Servo and Resolver, Analog Interface
