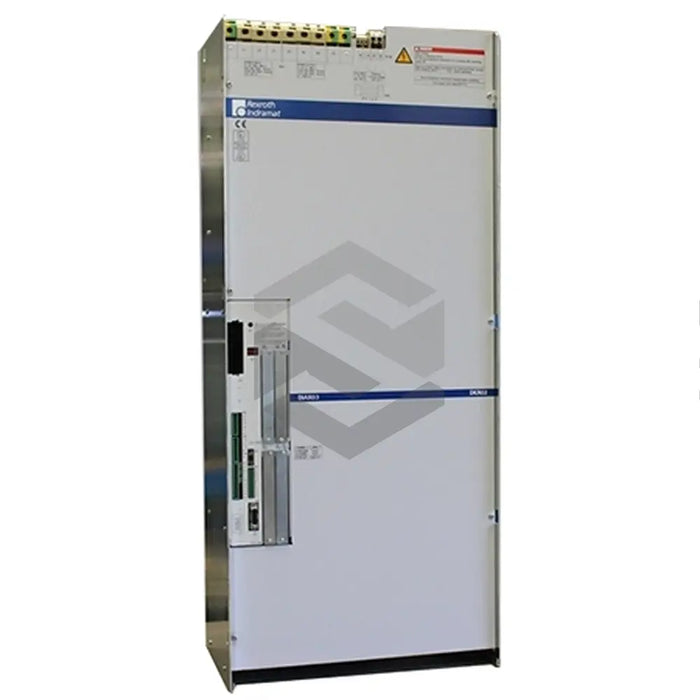

S image of DKR03.1-W200N-BA42-01-FW

DKR03.1-W200N-BA42-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W200N-BA42-01-FW, a product of Bosch Rexroth Indramat, specializes in advanced industrial automation equipment. It sports a basic unit and five slots (U1 to U5) that provide space for interfaces and firmware modules based on specific requirements. The core module is DKR03.1-W200N-B, and the U5 slot houses the ESM02.3 firmware module. It includes an analog command interface card and implements digital servo and resolver feedback. The controller includes either a 4kHz or 8kHz drive, with power capabilities of 35kW and 30kW, respectively. Dissipated heat is managed by a blower cooling system. Weighing roughly 51kg, including the M1-RAC 3 accessories kit, the standard design can mount easily with three screws and can operate at 50/60 Hz frequency using a direct 3-phase power supply. Store and transport temperatures range from -30 to +80 degree Celsius. Lastly, the controller features IP20 protection class, according to EN60539/ IEC529 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DKR03.1-W200N-BA42-01-FW

Basic Module

DKR03.1-W200N-B

Firmware Module

ESM02.3

Slots

5 (U1 to U5)

Interface

Analog

Feedback

Digital servo and resolver

4 kHz Drive Power Voltage

0 to 380V AC

4 kHz Drive Frequency

800 Hz

4 kHz Continuous Current

92 A

4 kHz Continuous Power

35 kW

8 kHz Drive Frequency

1600 Hz

8 kHz Continuous Current

78 A

8 kHz Continuous Power

30 kW

Heat Dissipation

1200 W

Cooling

Blower (internal or external air)

Design

Standard (no bleeder resistor)

Weight

51 kg (including M1-RAC 3 kit)

Mounting

3 screws

Power Supply

3-phase

Operating Frequency

50/60 Hz

Function Numeric Code

42 and 01

Transport and Storage Temperature

-30 to +80 degree Celsius

Protection Class

IP20 per EN60539/IEC529.
